ADTRAN 401 Quick Start

Quick Start
D
ESCRIPTION
The 401/411 Micro Optical Network Terminal (ONT) Fiber Tray and Wall
Mounting Bracket (ONT Fiber Tray and Bracket) is used either of the
following ONTs to a wall:

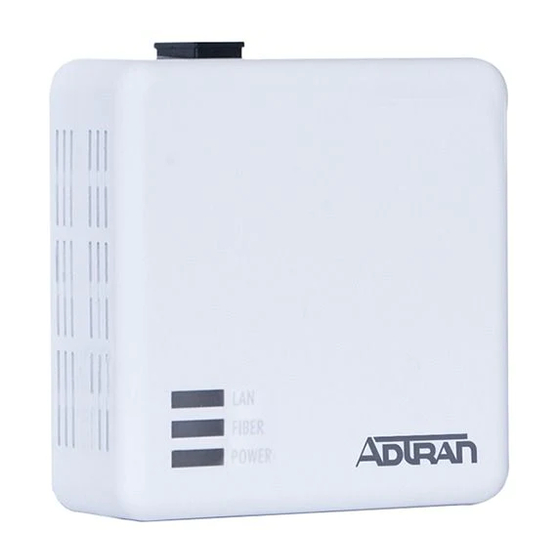

■ ADTRAN 401 GigE Micro ONT (P/N: 11321713F1)
■ ADTRAN 411 POTS + 1 GigE Micro ONT (P/N: 1287787F1)
The wall mount bracket also incorporates a fiber tray to store excess
incoming fiber should that be required.

Required Tools

The following tools are required when installing the ONT Fiber Tray and
Bracket.
■ Power drill (optional)
■ Carpenter's level (optional)
■
Phillips-head Screwdriver
■ Hammer

Installation Steps

To install the ONT Fiber Tray and Bracket, complete the following steps:
1. Select Location and Mount Bracket.
2. Attach Incoming Fiber Cable to ONT Fiber Tray and Bracket.
3. Attach ONT to Fiber Tray.
4. Connect Incoming Fiber Cable to ONT.

Step 1: Select Location and Mount Bracket

Select a location to mount the ONT Fiber Tray and Bracket near the fiber
entrance. Use the supplied hardware to mount the bracket to the wall as
follows:
g
NOTE
Supplied hardware is intended for drywall mounting only. For mounting on
surfaces other than drywall, obtain the appropriate mounting hardware
and follow the provided instructions.
1. Refer to Figure 1 and mark hole locations using the ONT Fiber Tray
and Bracket as a template. Use a carpenter's level to ensure the
bracket is level.
2. Start anchor into the wall by using a hammer to lightly tap the
anchor in until the threads are close to the wall.
g
NOTE
Pre-drill holes using a 1/4" drill bit if difficulty is encountered.
3. Insert either a No. 2 or No. 3 Phillips driver bit into the recess of the
anchor head.
4. Using gentle forward pressure, rotate the wall anchor clockwise until
the collar is flush with the wall.
ADTRAN ONT
401/411
Micro ONT Fiber Tray and Wall Mount Bracket
5. Align the ONT Fiber Tray and Bracket with the anchors. Insert and
tighten the #6 screws until the bracket is secured to the wall.
Step 2. Attach Incoming Fiber Cable to ONT Fiber
Tray and Bracket
f
Do not exceed a minimum bend radius of 2-inches when installing
fiber cabling.
Refer to
ONT Fiber Tray and Bracket
Figure 2. Wrap Incoming Fiber Around ONT Fiber Tray
Figure 1. ONT Fiber Tray and Bracket
CAUTION!
Figure 2 and wrap any excess incoming fiber around the
.
Incoming
Fiber
January 2018
61287410F1-13A
P/N: 1287410F1
Fiber
Connector
Fiber Tray
Clips
