ASSEMBLY INSTRUCTIONS

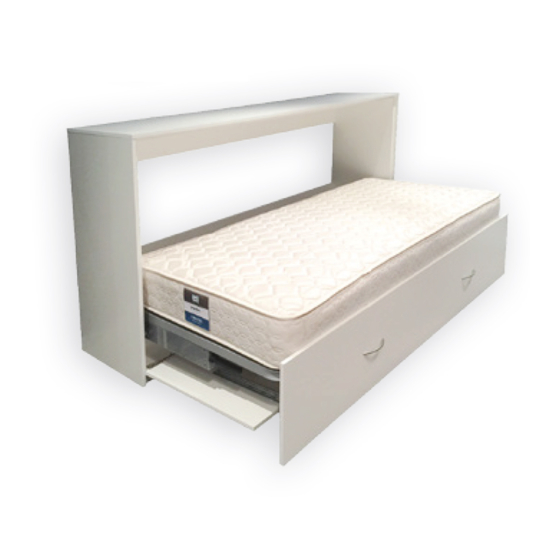

LOWLINE SINGLE
FOLD DOWN WALL BEDS
No 2 & No 4 Phillips Head Screwdrivers
Electric Drill (Hammer Drill for Masonry)
Spirit
L
e
v
l e
Tools Required For Assembly
No 2 Slot Head Screwdriver
6.5mm Masonry Drill Bit
A
d
u j
s
a t
b
e l
Spanners
Hammer
Pliers
24mm Set Socket
19.06.15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for pardo LOWLINE SINGLE
Summary of Contents for pardo LOWLINE SINGLE
- Page 1 ASSEMBLY INSTRUCTIONS LOWLINE SINGLE FOLD DOWN WALL BEDS Tools Required For Assembly No 2 & No 4 Phillips Head Screwdrivers No 2 Slot Head Screwdriver Hammer Electric Drill (Hammer Drill for Masonry) 6.5mm Masonry Drill Bit Pliers Spirit Spanners 24mm Set Socket...
-
Page 2: Cabinet Components
1988 x 652.5 x 16 This is an example cabinet construction method using knock down fittings to ensure the mechanism operates correctly. Variations to construction should be checked with Pardo. 16 or 18mm thick particleboard doors are recommended. Mattress size... - Page 3 Mechanism Components 2 x Mounting Brackets 2 x Cabinet Angle Brackets 2 x Mattress Guards 1 x Wall Bed Frame 2 x Counter Balance Mechanism 3 x Door Fixing Angles Remove long angles by unbolting at crotchet (refer to detail shown of crotchet) 2 x Bed Straps Crotchet Bolts / Nuts / Screws - Various...
-
Page 4: Step 1 - Cabinet Assembly
Step 1 - Cabinet Assembly Refer to Diagram 2 * Using hammer, tap cams into 20mm holes in all panels where required . Important : Orientation of cams as shown in photo below. * Screw cam bolts into 5mm holes in all panels where required. DIAGRAM 2 Hammer fix cam in place. - Page 5 Step2 - Fixing Cabinet To Wall * Lay cabinet face down with bottom facing the wall. * To ensure the cabinet is flush against the wall when upright, it may be necessary to cut a recess into bottom of left and right hand end of cabinet. IMPORTANT NOTE: Before moving cabinet upright, ensure all cams are tightened securely.
- Page 6 Step3 - Wall Bed mechanism Assembly / Installation * Bolt bed frame mounting brackets to left and right ends through predrilled holes using sleeves and bolts provided. (DETAIL C) DETAIL C * Remove the four (4) long angles from the bed by unbolting at crochet. (DETAIL D) * Bolt left and right hand counter balance mechanisms to bed frame.
- Page 7 DIAGRAM 6 DIAGRAM 7 SCREWING BED FRAME ANGLES TO DOORS GUIDING BED FRAME LEG INTO TOP DOOR SLEEVE Note: Bed Frame should still be vertical in Cabinet Bed Frame Piano Hinge Crotchet Fixing Top Door Bottom Door angles Top Door Leave 3mm gap between doors Bottom Door...
- Page 8 DIAGRAM 8 ADJUST TENSION COUNTER BALANCE MECHANISMS Lift doors up to within 30 degrees of closing Turn tension handles clockwise to increase tension DIAGRAM 9 DIAGRAM 10 ADJUSTING LEVELLING SCREWS DOOR ADJUSTMENT Move Move brackets brackets Final adjustment of doors may be made by adjusting levelling screws in mounting block whilst bed is open at 30 degrees ADJUST BOTTOM DOOR ONLY...
- Page 9 NOTE: CABINET CONSTRUCTION THIS IS THE RECOMMENDED CABINET CONSTRUCTION METHOD TO ENSURE THE MECHANISM OPERATES CORRECTLY. VARIATIONS OF CONSTRUCTION SHOULD BE CHECKED WITH PARDO PRIOR TO CHANGES. Piano Hinge 16mm or 18mm THICK PARTICLEBOARD DOORS ARE RECOMMENDED. 70mm Floor Line Side Elevation n.t.s...
-
Page 10: Bottom Door
Lowline Single Fold Down Door (outer angle fixing locations) Locations given are an approximate guide only for the slotted Bracket holes. Fix into round holes after checking and adjustments are completed Step 3 #1 & #4 DIAGRAM 6 TOP DOOR...
