ASSEMBLY INSTRUCTIONS

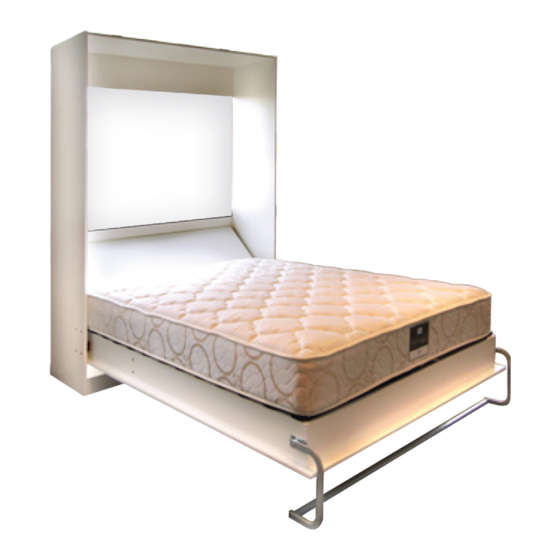

STREAMLINE 3000
ONE PIECE DOOR WALL BEDS
No 2 & No 4 Phillips Head Screwdrivers
Electric Drill (Hammer Drill for Masonry)
Spirit
L
e
v
l e
DOUBLE
Tools Required For Assembly
No 2 Slot Head Screwdriver
6.5mm Masonry Drill Bit
A
d
u j
s
a t
b
e l
Spanners
Hammer
Pliers
24mm Socket Set
19.06.15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for pardo STREAMLINE 3000 Double
Summary of Contents for pardo STREAMLINE 3000 Double
- Page 1 ASSEMBLY INSTRUCTIONS STREAMLINE 3000 DOUBLE ONE PIECE DOOR WALL BEDS Tools Required For Assembly No 2 & No 4 Phillips Head Screwdrivers No 2 Slot Head Screwdriver Hammer Electric Drill (Hammer Drill for Masonry) 6.5mm Masonry Drill Bit Pliers Spirit Spanners 24mm Socket Set 19.06.15...
- Page 2 Cabinet Construction This is the recommended cabinet construction method to ensure the mechanism operates correctly. Variations of construction should be checked with Pardo. 16 or 18mm thick particleboard doors are recommended. 1400 x 1900 x 250D MAXIMUM depth Mattress size...
- Page 3 Mechanism Components 2 x Cabinet Angle Brackets Bolts / Nuts / Screws - Various 2 x Bed Straps 28 Slats 56 Slat Cup Holders 2 x Mounting Brackets 1 x Manual Foot 2 x Counter Balance Mechanism Cabinet Hardware 10 x Green Wall Plugs 64 x Fix Cams 64 x Cam Bolts 1 x Piano Hinge...
- Page 4 Step1 - Fixing Cabinet To Wall * Lay cabinet face down with bottom facing the wall. * To ensure the cabinet is flush against the wall when upright, it may be necessary to cut a larger recess into bottom of left and right hand end of cabinet. * Lift cabinet at top, pushing towards wall, being careful to have sufficient ceiling clearance.
- Page 5 Step2 - Wall Bed mechanism Assembly / Installation * Bolt bed frame mounting brackets to left and right ends through predrilled holes using sleeves and bolts provided. (DETAIL C) DETAIL C * Bolt left and right hand counter balance mechanisms to door bed frame. (Ensuring counter balances are to inside of door bed frame).
- Page 6 DIAGRAM 4 ADJUST TENSION COUNTER BALANCE MECHANISMS Lift doors up to within 30 degrees of closing Turn tension handles clockwise to increase tension DIAGRAM 5 ADJUSTING LEVELLING SCREWS Final adjustment of doors may be made by adjusting levelling screws in mounting block whilst bed is open at 30 degrees...
- Page 7 NOTE: CABINET CONSTRUCTION THIS IS THE RECOMMENDED CABINET CONSTRUCTION METHOD TO ENSURE THE MECHANISM OPERATES CORRECTLY. VARIATIONS OF CONSTRUCTION SHOULD BE CHECKED WITH PARDO PRIOR TO CHANGES. 16 OR 18MM THICK 2100mm PARTICLEBOARD DOORS ARE RECOMMENDED. Door Middle Rail DOUBLE BED 446mm MIN.
- Page 8 Carcass Construction - Double Manual Foot Wall Bed Mechanism PLASTIC CUP (SLAT HOLDER) 1368 1400 CONTINUOUS ANGLE ALLROUND TO FIX BASE TO DOOR DOOR 16 3 1456 DETAIL F N.T.S SCREW POINTS FOR FOOT / LEG 1215 SIDE 1996 Add full width 70MM x 45MM DOOR 7mm DIA.
