ELEKTROGAS
EVRM-NA
EVRM-NA/OT
SAFETY ELECTROVALVES FOR AIR AND GAS WITH MANUAL RESET
NORMALLY OPEN – CLOSED ONLY WHEN ENERGIZED
SICHERHEITSMAGNETVENTILE FÜR LUFT UND GAS MIT MANUELLER RÜCKSTELLUNG
STROMLOS GEÖFFNET- UNTER SPANNUNG GESCHLOSSEN
ELETTROVALVOLE DI SICUREZZA PER ARIA E GAS A RIARMO MANUALE
NORMALMENTE APERTE - CHIUSE SOTTO TENSIONE
ELECTROVANNE DE SECURITE POUR L'AIR ET LE GAZ A REARMEMENT MANUEL
NORMALEMENT OUVERTE - FERMEE SOUS TENSION
Mar99
ELETTROMECCANICA DELTA S.p.A.
-
Via Trieste 132, 31030 Arcade (TV)
ITALY - tel.++39 0422 874068 - fax ++39 0422 874048
Advertisement
Related Manuals for Elektrogas EVRM-NA
Summary of Contents for Elektrogas EVRM-NA

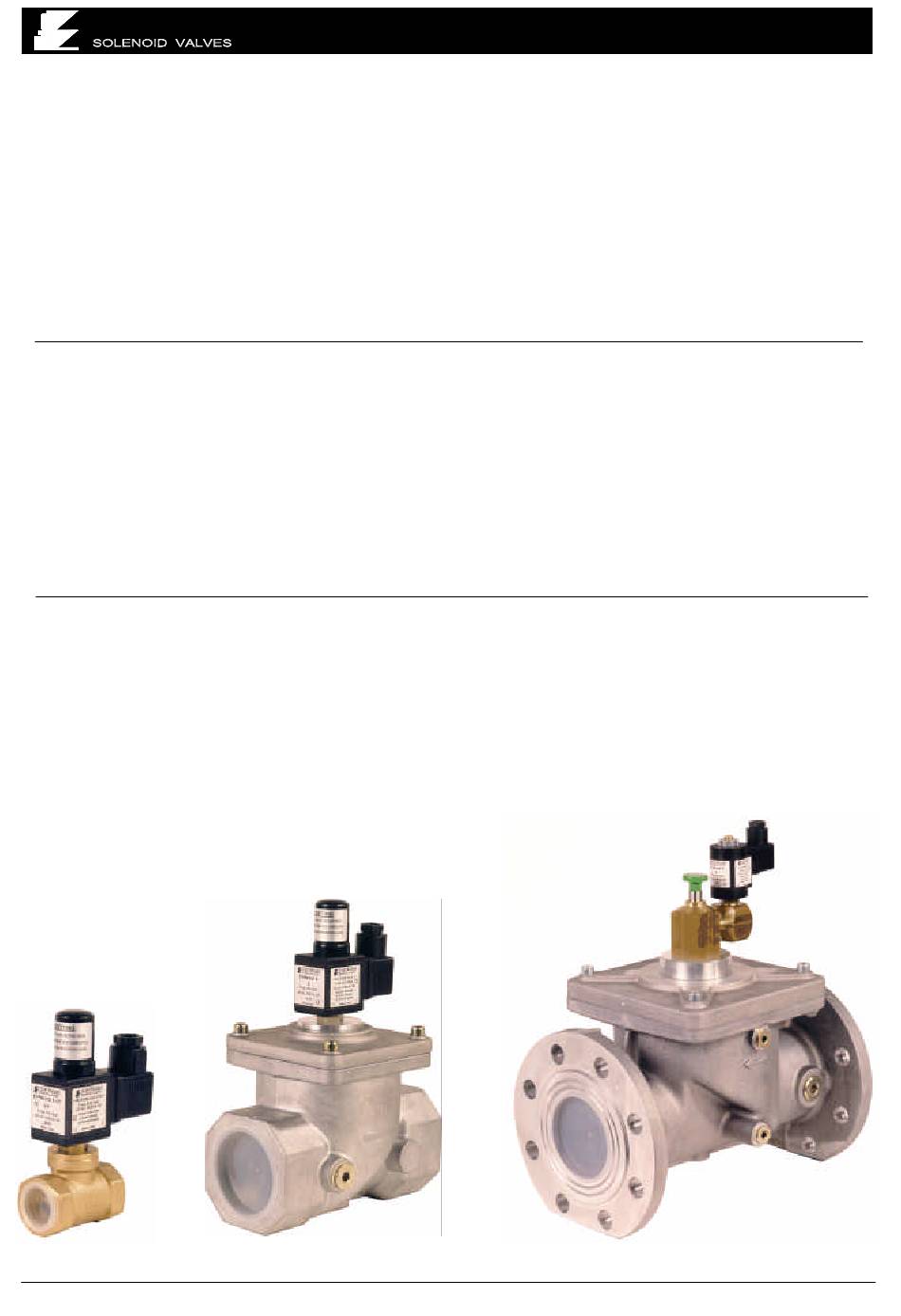

- Page 1 ELEKTROGAS EVRM-NA EVRM-NA/OT SAFETY ELECTROVALVES FOR AIR AND GAS WITH MANUAL RESET NORMALLY OPEN – CLOSED ONLY WHEN ENERGIZED SICHERHEITSMAGNETVENTILE FÜR LUFT UND GAS MIT MANUELLER RÜCKSTELLUNG STROMLOS GEÖFFNET- UNTER SPANNUNG GESCHLOSSEN ELETTROVALVOLE DI SICUREZZA PER ARIA E GAS A RIARMO MANUALE NORMALMENTE APERTE - CHIUSE SOTTO TENSIONE ELECTROVANNE DE SECURITE POUR L’AIR ET LE GAZ A REARMEMENT MANUEL...

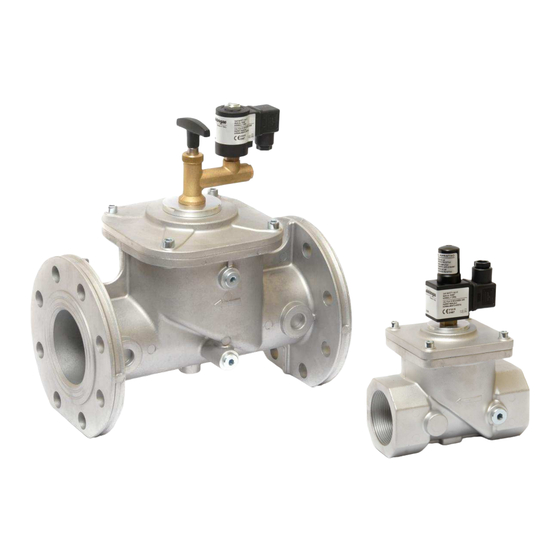

- Page 2 100% TESTED TWO YEARS WARRANTY The EVRM-NA type valve is a manual reset safety valve that is normally open. A manual operation is therefore necessary to open the valve and set the mechanism consenting to maintain this state. The powering by means of line current and/or condenser discharge, induced by the leakage detector, causes tripping of the mechanism and consequent closing of the gas passage.
- Page 3 ELEKTROGAS VALVES IDENTIFICATION - VENTILE IDENTIFIKATION IDENTIFICAZIONE VALVOLE - IDENTIFICATION DES ELECTROVANNE 230V AC 110V AC 24V AC/DC 24V DC-22W 12V AC 12V DC 12V DC-22W 1/2"-OT DN15 EVRMNA1AO EVRMNA1BO EVRMNA1CO EVRMNA1COW EVRMNA1DOS EVRMNA1DO EVRMNA1DOW 3/4"-OT DN20 EVRMNA2AO EVRMNA2BO EVRMNA2CO EVRMNA2COW EVRMNA2DOS EVRMNA2DO EVRMNA2DOW 1"-OT...
- Page 4 ELEKTROGAS DRUCKVERLUST-DIAGRAMM DIAGRAM LOSS OF PRESSURE DIAGRAMMA PERDITE DI CARICO DIAGRAMME PERTES DE CHARGE LOSS OF PRESSURE DRUCKVERLUST PERDITA DI CARICO PERTES DE CHARGE 4" 3" 2"1/2 2" 1"1/2 1"1/4 1" 3/4" 1"-OT 1/2" 3/8" 3/4"-OT 1/2"-OT LOSS OF PRESSURE...
- Page 5 ELEKTROGAS Depth EVRM-NA1/OT G1/2" EVRM-NA2/OT G3/4" EVRM-NA3/OT G1" EVRM-NA0 G3/8" EVRM-NA1 G1/2" EVRM-NA2 G3/4" EVRM-NA3 G1" EVRM-NA35 G1"1/4 EVRM-NA4 G1"1/2 EVRM-NA6 G2" D e p th Ho le s EV R M - N A 7 φ65 φ19 EV R M - N A 8 φ80...
- Page 6 ELEKTROGAS Valve body Fixing screw Filter Seal Spring Plug 1/4"G DIN plug 10 Counter-flange Reset rod 11 Cable gland Coil 12 Hood Mar99 E036 ELETTROMECCANICA DELTA S.p.A. - Via Trieste 132, 31030 Arcade (TV) ITALY - tel. ++39 0422 874068 - fax ++39 0422 874048...
