Furinno JAYA 15070 Assembly Instruction

Furinno JAYA 15070 Assembly Instruction

Simple design bookcase

Advertisement

Quick Links

STEP 6
Attach Panel (C) to Panel (A) by tighten the Mini Fix
Bolt & Cam (1A&1B).
STEP 7
Attach Panel (C) to Panel (B) using Screw (2) as shown.
Recommended Maximum Weight
15
15
15
*Unit in Pound(lbs)
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
its Space. its Budget
Approx. 30 minutes
Recomm. 1 Person
Tool Required
Tool Required
Customer Support
NEED HELP? For help with assembly, or if you are missing a
part, please call Furinno Customer Service, 1-773-299-8111
from Mon-Fri, 9am-5pm (CST) or email: support@furinno.com
www.furinno.com
Assembly Instruction

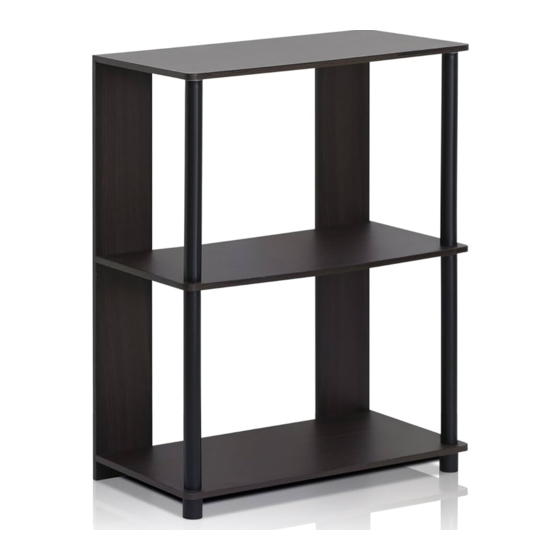

Furinno JAYA Simple Design Bookcase
15070
MODEL
:
DIMENSION :
23.6"(W) x 29.8"(H) x 11.6"(D)
1507002292016
