Furinno JAYA 15080 Assembly Instruction

STEP 4
Attach Panel (B) to assembled unit and tighten
it with Screw (6) using screwdriver.
STEP 6
Attach Panel (D) to Panel (B) with Dowel (7)
and Screw (6), as shown.
Recommended Maximum Weight
10
10
*Unit in Pound(lbs)
STEP 5
Attach Top Cap (3) to Panel (B) and tighten it with
Long Round Pole (2).
STEP 7
Attach Panel (A) to assembled unit with Mini Fix
Bolt/ Cam (1A&1B). Lock Mini Fix Cam (1B)
using screwdriver.
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
its Space. its Budget
Approx. 15 minutes
Recomm. 1 Person
Tool Required Tool Required
Customer Support
NEED HELP? For replacement requests or product inquiries,
please contact our Customer Service Team by emailing us at
support@furinno.com. Thank you for selecting Furinno!
www.furinno.com
Assembly Instruction

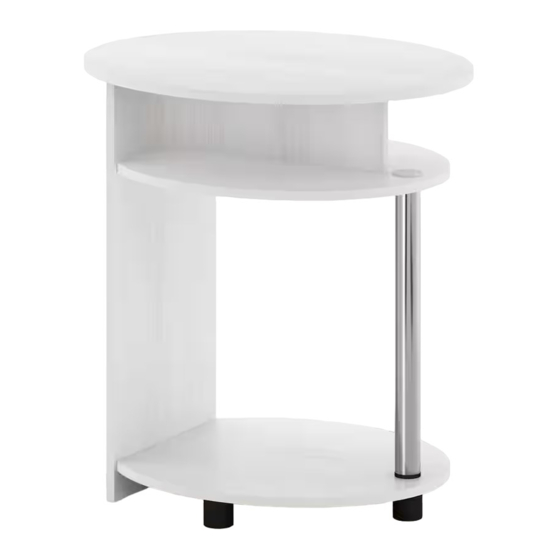

Furinno JAYA Simple Design
Oval End Table
15080
MODEL :
1508020181017
