RUPTELA FM-Eco4 T Quick Start Manual

Make sure that you have:
• A computer with Windows 7/8/10
• An internet connection (or a predownloaded
• A USB A to USB mini (Type B) cable
•
Tools for installation and wire connection: a "+" type screwdriver, a panel removing tool, a wrench, a crimp
terminal, zip-ties (or double-sided tape)

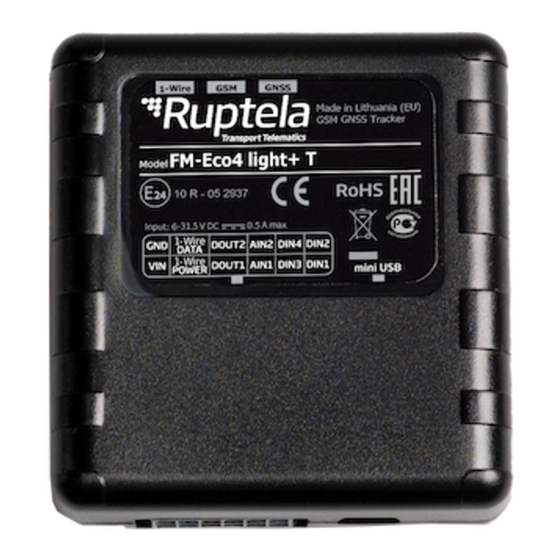

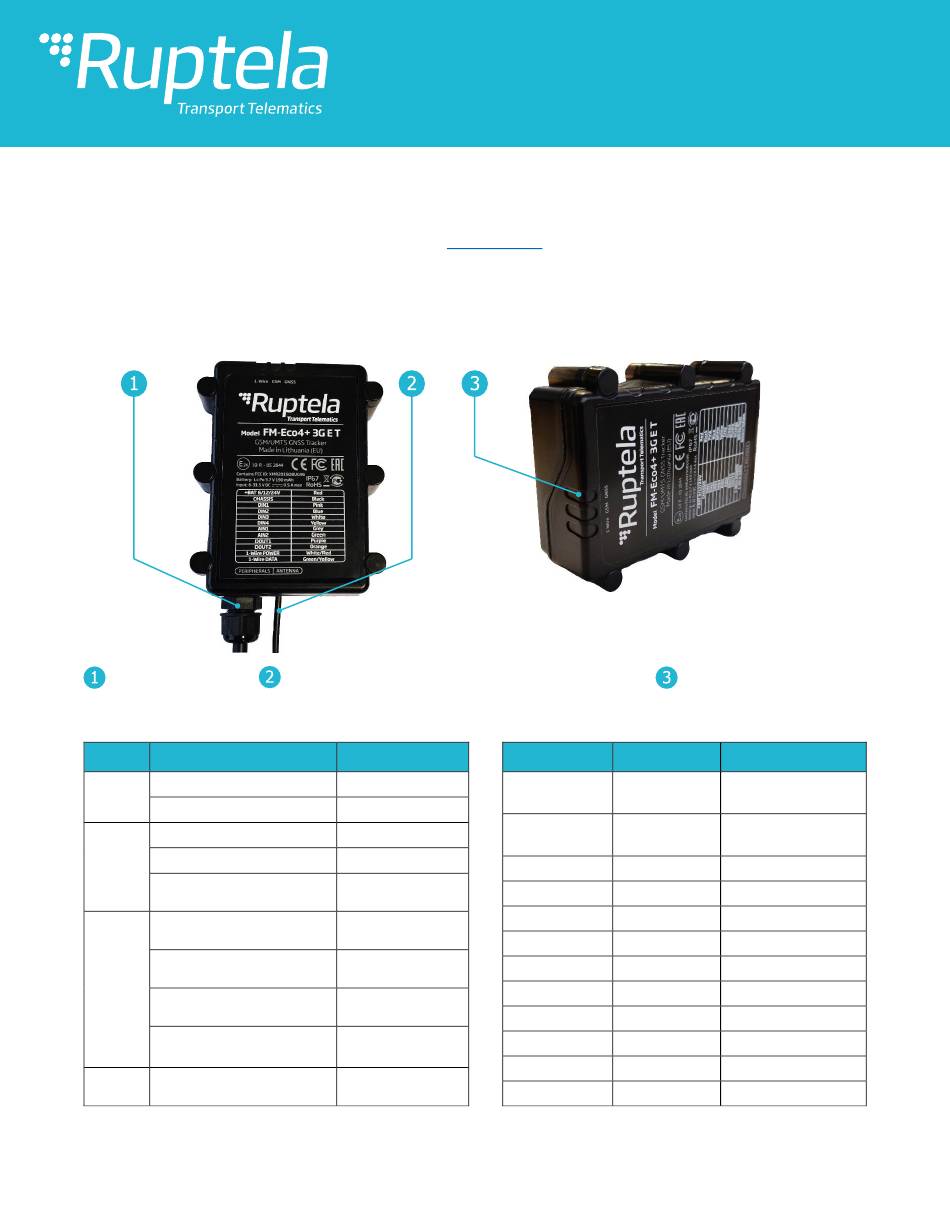

Device overview
12 Pin cable
Indication LED patterns
LED Pattern
Once every second
GNSS
Once every 0.4 seconds
Once every 4 seconds
Once every 0.2 seconds
GSM
Always on
Always off
Once every 5 seconds
1-Wire
Twice every 5 seconds
Three times every 5
seconds
All Once every 5 seconds
www.ruptela.com
FM-Eco4 T
Quick Start Guide
Q
Device
GNSS antenna cable (if applicable)
Description
Accurate signal
No signal
Accurate signal
No signal
Link with the
server is open
No devices
connected
One device
connected
Two devices
connected
Three devices
connected
Sleep/deep
sleep mode
support@ruptela.com | +370 5 2045030
Center)
Device pinout
Pin Wire color
+BAT Red
GND Black
DIN1 Pink
DIN2 Blue
DIN3 White
DIN4 Yellow
AIN1 Grey
AIN2 Green
DOUT1 Purple
DOUT2 Orange
1-Wire PWR White/Red
1-Wire DATA Green/Yellow
FM-Eco4+ T
FM-Eco4+ E T
FM-Eco4+ 3G T
FM-Eco4+ 3G E T
Indication LEDs
Description
Power supply
6/12/24V
Ground
connection
Digital input 1
Digital input 2
Digital input 3
Digital input 4
Analog input 1
Analog input 2
Digital output 1
Digital output 2
1-Wire power
1-Wire data
1
