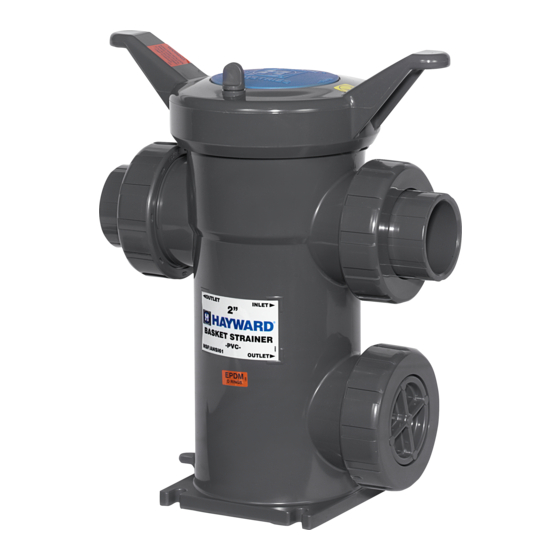

Simplex basket strainer

Advertisement

Quick Links

INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
PLEASE READ THE FOLLOWING INFORMATION PRIOR TO INSTALLING AND USING ANY HAYWARD PRODUCT. FAILURE TO FOLLOW
THESE INSTRUCTIONS MAY RESULT IN PRODUCT DAMAGE, PROPERTY DAMAGE, PERSONAL INJURY, OR EVEN DEATH.
1.
Hayward Flow Control (Hayward), a division of Hayward Industries, guarantees its products against defective material and workmanship only.
Hayward assumes no responsibility for property damage or personal injury resulting from improper installation, misapplication, or abuse of any
product.
2.
Hayward assumes no responsibility for property damage or personal injury resulting from chemical incompatibility between its products and the
process fluids to which they are exposed. Determining whether a particular PVC, CPVC, or GFPP product is suitable for an application is the
responsibility of the user. Chemical compatibility charts provided in Hayward literature are based on ambient temperatures of 70°F and are for
reference only.
3.
Hayward products are designed for use with non-compressible liquids.
Hayward PVC, CPVC, or GFPP products should NEVER be used or tested with compressible fluids such as compressed air or
nitrogen. Use of PVC, CPVC, or GFPP products in compressible fluid applications may result in product damage, property
damage, personal injury, or even death.
4.
The maximum recommended fluid velocity through this Hayward product is five feet per second (5 ft/s). Higher fluid velocity can result in damage
due to the water hammer effect.
5.
Piping systems must be designed and supported to prevent excess mechanical loading on Hayward products due to system misalignment, weight,
shock, vibration, and the effects of thermal expansion and contraction.
6.
The effect of temperature on plastic piping systems must be considered when the systems are initially designed. The pressure rating of plastic
systems must be reduced with increasing temperature. Maximum operating pressure is dependent upon material selection as well as operating
temperature. Before installing any Hayward product, consult Hayward product literature for pressure vs. temperature curves to determine any
operating pressure or temperature limitations.
7.
PVC, CPVC, and GFPP plastic products become less ductile below 34°F. Use caution in their installation and operation below this temperature.
Hayward PVC and CPVC products should not be used in services with operating temperature below 34°F. Hayward GFPP
8.
Due to differential thermal expansion rates between metal and plastic, transmittal of pipe vibration and pipe loading forces, DIRECT
INSTALLATION OF HAYWARD FLOW CONTROL PRODUCTS INTO METAL PIPING SYSTEMS IS NOT RECOMMENDED.
installation of Hayward product into metal piping systems is necessary, it is recommended that at least 10 pipe diameters in length of plastic pipe
be installed upstream and downstream of the product to compensate for the factors mentioned above.
9.
Published operating requirements are based on testing of new products using clean water at 70°F. Performance is affected by many factors
including fluid chemistry, viscosity, specific gravity, flow rate, and temperature. These should be considered when sizing Hayward products.
10. Systems should always be depressurized and drained prior to installing or maintaining any Hayward product.
Failure to depressurize and drain system prior to installing or maintaining any Hayward product may result in product damage,
11. Always follow your site and/or company procedures for any safety training and/or site specific precautions or warnings in addition to those in this
document.
The most recent revision to this document is available at
Hayward Flow Control
HAYWARD FLOW CONTROL
PVC, CPVC, & GFPP SB SERIES SIMPLEX BASKET STRAINER
products should not be used in services with operating temperature below 20°F.
property damage, personal injury, or even death.
http://www.haywardflowcontrol.com/images/flowcontrol/PDF/iom/SBIOM.pdf
www.haywardflowcontrol.com
WARNING
WARNING
WARNING
Wherever
1-888-HAY-INDL (1-888-429-4635)
SBIOM Rev A 10/9/2019
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PVC Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hayward PVC Series

  • Page 1 Wherever installation of Hayward product into metal piping systems is necessary, it is recommended that at least 10 pipe diameters in length of plastic pipe be installed upstream and downstream of the product to compensate for the factors mentioned above.
  • Page 2: Installation

    1.2. Mounting the Strainer to Floor or Skid: Hayward SB-Series Basket Strainers are equipped with a slotted bolt pattern on the base so that the vessel may be directly mounted to a skid or to the floor. Hayward recommends using 3/8” diameter bolts or studs with flat washers and lock washers for mounting the vessel.
  • Page 3 1.3. Installing the Strainer into a System: CAUTION Hayward SB-Series Basket Strainer must be installed in an upright position. Do not install unsupported piping or risers onto end connectors or vessel body. Do not use vessel as a pipe support or system anchor. Sound piping system design principles should be applied when installing this vessel.
  • Page 4: Operation

    To install the basket into the SB Series Basket Strainer, place basket inside vessel aligning shoulder of basket with shoulder of vessel body. Filling and Pressurizing the Basket Strainer 2.2.1 To fill and pressurize Hayward SB-Series Basket Strainer: 2.2.1.1 Verify that cover o-ring, cover o-ring groove, and cover sealing surface are clean. 2.2.1.2 Verify that cover o-ring is seated inside o-ring groove.
  • Page 5 For faster draining, the nut of the lower end cap port can be loosened to allow drainage from this port. Alternatively, a Hayward TB-Series ball valve can be installed to drain the vessel via this lower port. Caution: Do not lose o- ring that seals port cap to strainer body.
  • Page 6: Troubleshooting

    5 psid. Clean or replace fouled basket with new basket. Never Reduction in flow through unit Fouled basket allow differential pressure across vessel to exceed 5 psid. Hayward Flow Control www.haywardflowcontrol.com 1-888-HAY-INDL (1-888-429-4635) SBIOM Rev A 10/9/2019 Page 6 of 8...
  • Page 7: Product Specifications

    Published operating requirements are based on testing of new products using clean water at 70°F. Performance is affected by many factors including fluid chemistry, viscosity, specific gravity, flow rate, and temperature. These should be considered when sizing systems using Hayward products.
  • Page 8: Parts List

    THREE YEAR WARRANTY: All products manufactured by Hayward are warranted against defects in material or workmanship for a period of three years from date of shipment. Our sole obligation under this warranty is to repair or replace, at our option, any product or any part or parts thereof found to be defective. HAYWARD MAKES NO OTHER REPRESENTATION OR WARRANTY, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

This manual is also suitable for:

Cpvc seriesGfpp sb seriesSb1050stSb1050fSb1075stSb1075f ... Show all
