MTHTrains Rail King 2 Track Steel Arch Bridge Manual

2 Track Steel Arch Bridge

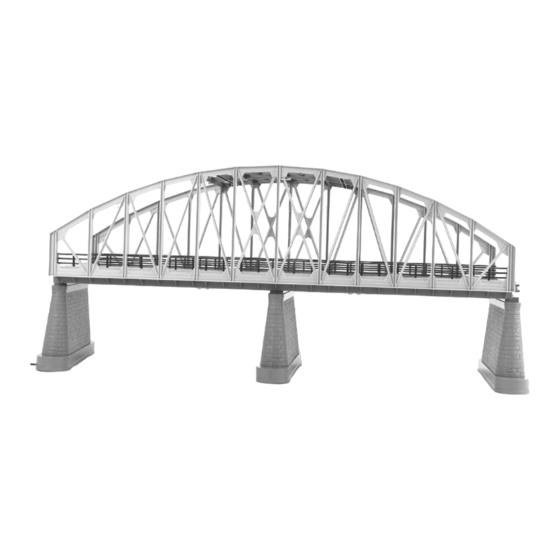

The 2 Track Steel Arch Bridge adds more excitement and realism to

your layout. Constructed from sturdy ABS plastic, the 2 Track Steel

Arch Bridge is a great addition to any O-27 or O Gauge layout.

The bridge comes semi-assembled with most parts necessary to

integrate it with existing layout components. Operation and set up is

made easy by following the instructions on the inside.

PLEASE READ BEFORE USE AND SAVE

www.mthtrains.om

Table of Contents

Need help?

Do you have a question about the Rail King 2 Track Steel Arch Bridge and is the answer not in the manual?

Page 1 Arch Bridge is a great addition to any O-27 or O Gauge layout. The bridge comes semi-assembled with most parts necessary to integrate it with existing layout components. Operation and set up is made easy by following the instructions on the inside. PLEASE READ BEFORE USE AND SAVE www.mthtrains.om...
Page 2 Instructions The 2 Track Steel Arch Bridge is comprised of three (3) major components, the bridge itself, three piers and 12 pier mounting screws. The bridge also features a beacon which flashes when connected to a 14-20 volt power supply. Basic Set Up Before the bridge can be used, the piers must be attached to the bridge.
Page 3 Track Mounting Holes Track Mounting Holes Figure 4b ® ™ Lionel FasTrack ® ™ To use Lionel FasTrack you will need to remove the track guides (Figure 3a). To remove the track guides first remove the 24 screws from the bottom of the bridge (Figure 3b). Once the guides are removed slide the track into the framing base of the bridge (Figure 3c).
Page 4 All M.T.H. products purchased from an Authorized M.T.H. Retailer are covered by this warranty. See our Website www.mthtrains.com to identify an M.T.H. Retailer near you. M.T.H. products are warrantied for one year from the date of purchase against defects in material or workmanship, excluding wear items such as light bulbs, pick-up rollers, batteries, smoke unit wicks, and traction tires.
