R
K
AIL
ING
®
By MTH Electric Trains
TROLLEY CAR SET
OPERATING INSTRUCTIONS

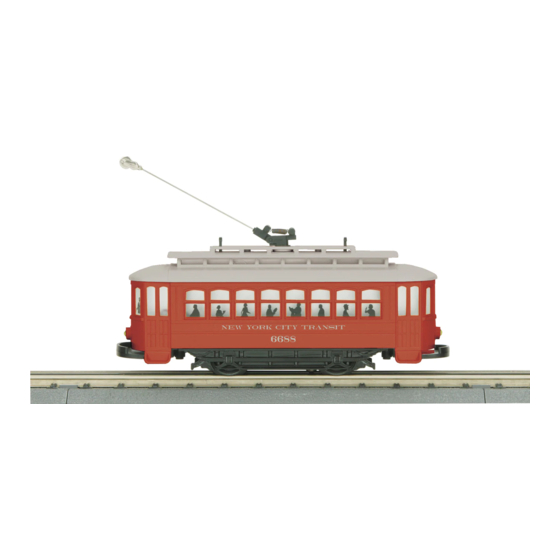

Your new M.T.H. Trolley Car Set is designed to bring excitement to
someone new to model railroading or to add fun to an existing layout.
Your train set comes with everything you need to get started: a sturdy
trolley car, a 47-watt Z-DC1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MTHTrains Rail King Trolley Car Set
Summary of Contents for MTHTrains Rail King Trolley Car Set
- Page 1 ™ ® ® By MTH Electric Trains TROLLEY CAR SET OPERATING INSTRUCTIONS Your new M.T.H. Trolley Car Set is designed to bring excitement to someone new to model railroading or to add fun to an existing layout. Your train set comes with everything you need to get started: a sturdy trolley car, a 47-watt Z-DC1...
-
Page 2: Table Of Contents
Table Of Contents Compatibility Set Up Lubricating the Trolley Car Assembling RealTrax® Exploded Parts View Diagram Transformer Compatibility Chart Safety Precautions Service and Warranty Information Trolley Operating Instructions... -
Page 3: Compatibility
® Compatibility While this trolley car set is equipped with everything you need to operate it, the design allows flexibility. The trolley will operate on any traditional O-27 or larger O Gauge track system, including the RealTrax Trolley Operating Instructions... -
Page 4: Lubricating The Trolley Car
Lubricating the Trolley Car Before you run your trolley car, you must lubricate it to prevent squeaking and premature wear. Use a light household or hobby oil to lubricate the gears, truck block bronze bushings, and pickup rollers. Apply a small drop of oil (a pinpoint oiler will help place the right amount of oil where you need it) to each of the points indicated below. -
Page 5: Assembling Realtrax
Assembling RealTrax® Unlike other O Gauge track systems, each RealTrax section features a realistic built-in roadbed base, solid nickel-silver track rails, and realistic railroad ties, all designed to give the owner an authentic looking track system. In addition, each RealTrax track section uses quick-connect connectors instead of track pins or railjoiners to assemble lengths of track. - Page 6 Figure 8: Top view of RealTrax® section with Figure 7: Underside view of RealTrax® track lighted lockon in fully seated position. section with lighted lockon in fully seated position. Figure 9: Attatching the Bumper to the end of the RealTrax section. Trolley Operating Instructions...
- Page 7 Lamp Replacement The trolley uses two LEDs for directional headlights and two incandescent bulbs for interior lights. To replace the headlights or interior lights remove the four screws that attach the body to the frame, shown in figure 2. Lift the body from the frame and replace the bulbs. Note: Although the body shell can be rotated 180 degrees and still be fitted to the frame, the directional lights will only work properly in the original orientation.
-
Page 8: Exploded Parts View Diagram
Exploded Parts View The chart and diagram on the next few pages should be referenced when requesting replacement parts for your RailKing® locomotive. Parts can be ordered directly from MTH Electric Trains, 7020 Columbia Gateway Drive, Columbia, MD 21046-1532. Trolley P a r t s Name and Number Part #... - Page 9 Trolley Operating Instructions...
-
Page 10: Transformer Compatibility Chart
TRANSFORMER COMPATIBILITY AND WIRING CHART The chart below lists many of the compatible transformers and how the terminals on these compatible transformers should be attached to your layout. Transformer Min/Max. Power Transformer Center Rail Outside Rail Model Voltage Rating Type Lionel 1032 5-16v 90-Watt... -
Page 11: Safety Precautions
WARNING: When using electrical products, basic safety precautions should be followed including the following: Read this manual thoroughly before using this device. This device is not recommended for children under ten years of age without adult supervision. M.T.H. Electric Trains recommends parents examine the Z-DC1 Hobby Transformer periodically for conditions that may result in the risk of fire, electric shock, or injury to persons, such as damage to the primary cord, plug blades, housing or other parts, and that, in an event such... -
Page 12: Service And Warranty Information
Drive, Columbia, MD 21046, 410-381-2580 (FAX No. 410-423-0009), email at service@mth-railking.com, or visit us on the web at www.mthtrains.com, stating which product you have when the product was purchased and what seems to be the problem. You will be given a return authorization number to assure that your merchandise will be properly handled upon its receipt by our service department.
