Avtech RMA-ET1-SEN Installation Note

AVTECH
AVTECH's Extreme Temperature Sensors
monitor a wide range of low and high
temperatures with a rugged RTD (resistance
temperature detector) and smart ID box
that communicates readings to your Room
Alert analog sensor (built-in or external). The
standard Extreme Low version has a range of
-328º F to 32º F (-200º C to 0º C), while the
standard Extreme High version has a range
of -40º F to 743º F (-40º C to 395º C). These
reliable sensors are perfect for your extreme
low or high temperature threshold monitoring.
Extreme Temperature Sensor Package Contents
• One (1) Extreme Temperature Sensor
• One (1) 10' RTD cable w/ 2" RTD probe
• One (1) 18V power adapter
• One (1) 25' speaker wire

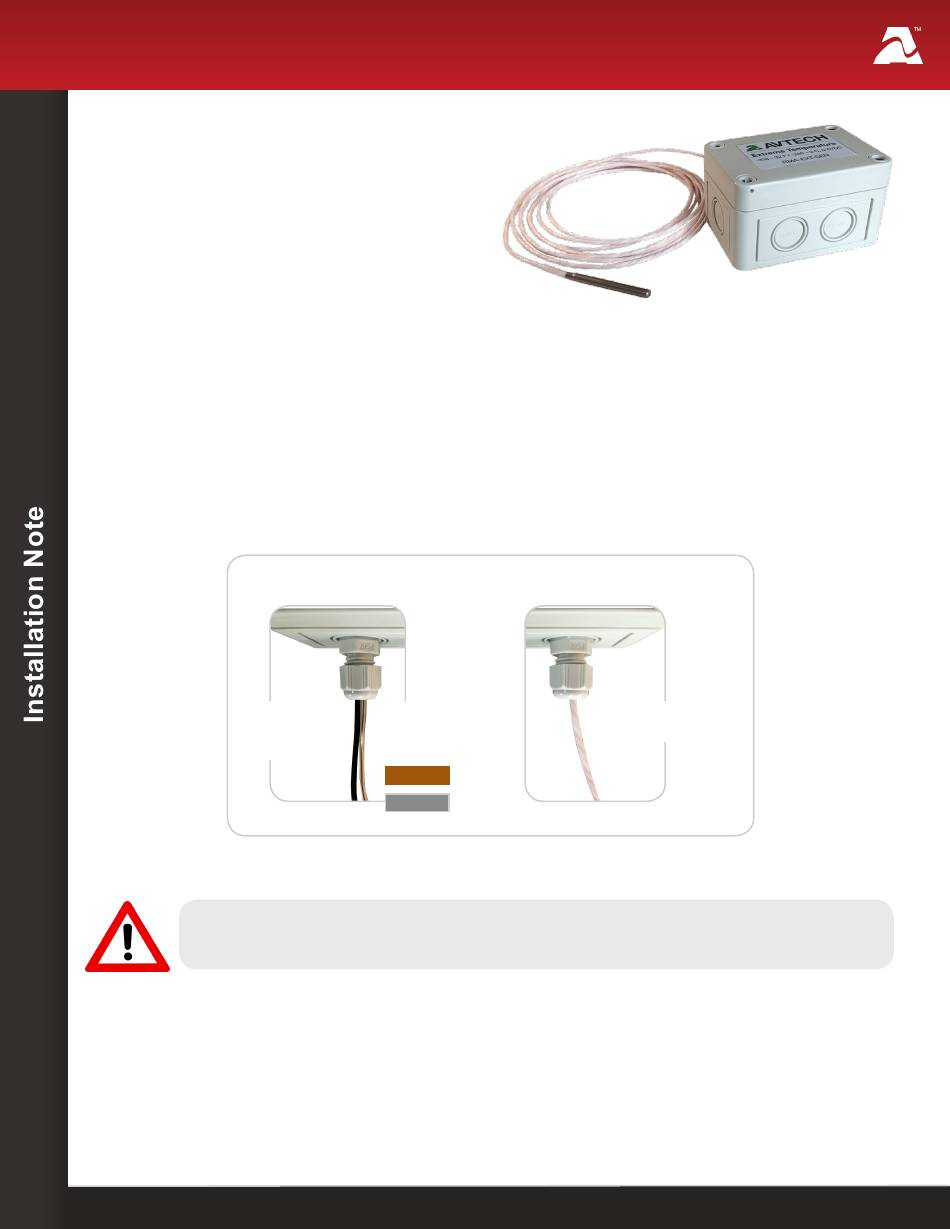

Extreme Temperature Sensor
Install Your Extreme Temperature Sensor
Do not use this sensor in hazardous (classified) locations or life safety applications.
Step 1: Mount your Extreme Temperature Sensor.
Your Extreme Temperature Sensor comes with a 10' RTD cable. When you are considering
the layout of your components, remember that the sensor housing is not designed to
withstand the same temperatures as the RTD probe.
AVTECH Software, Inc.
Extreme Temperature Sensors
Left
Power Polarized
Adapter Speaker
Cord Wire
Copper
Silver
Temperature & Environment Monitoring... Made Easy!
10'
RTD
Cable
Right
(+)
(-)
2" RTD Probe
RTD
Cable
AVTECH.com
