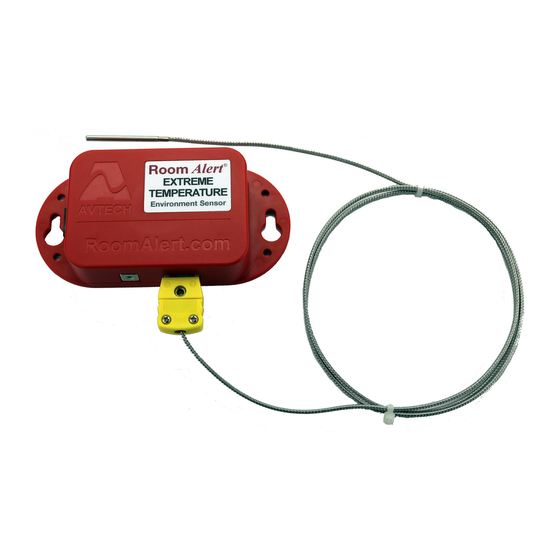

AVTECH's Digital Extreme Temperature Sensor
monitors a wide range of low and high temperatures with a
thermocouple and sensor box that communicates readings to
your Room Alert via a digital sensor port. This "Plug and Play"
sensor provides reliable extreme low or high temperature
values to your Room Alert.
Digital Extreme Temperature Sensor Package Contents
•
One (1) sensor box
•
One (1) 40" K-type grounded thermocouple w/ 1/8"
stainless steel probe
•
One (1) 25' RJ-11 cable

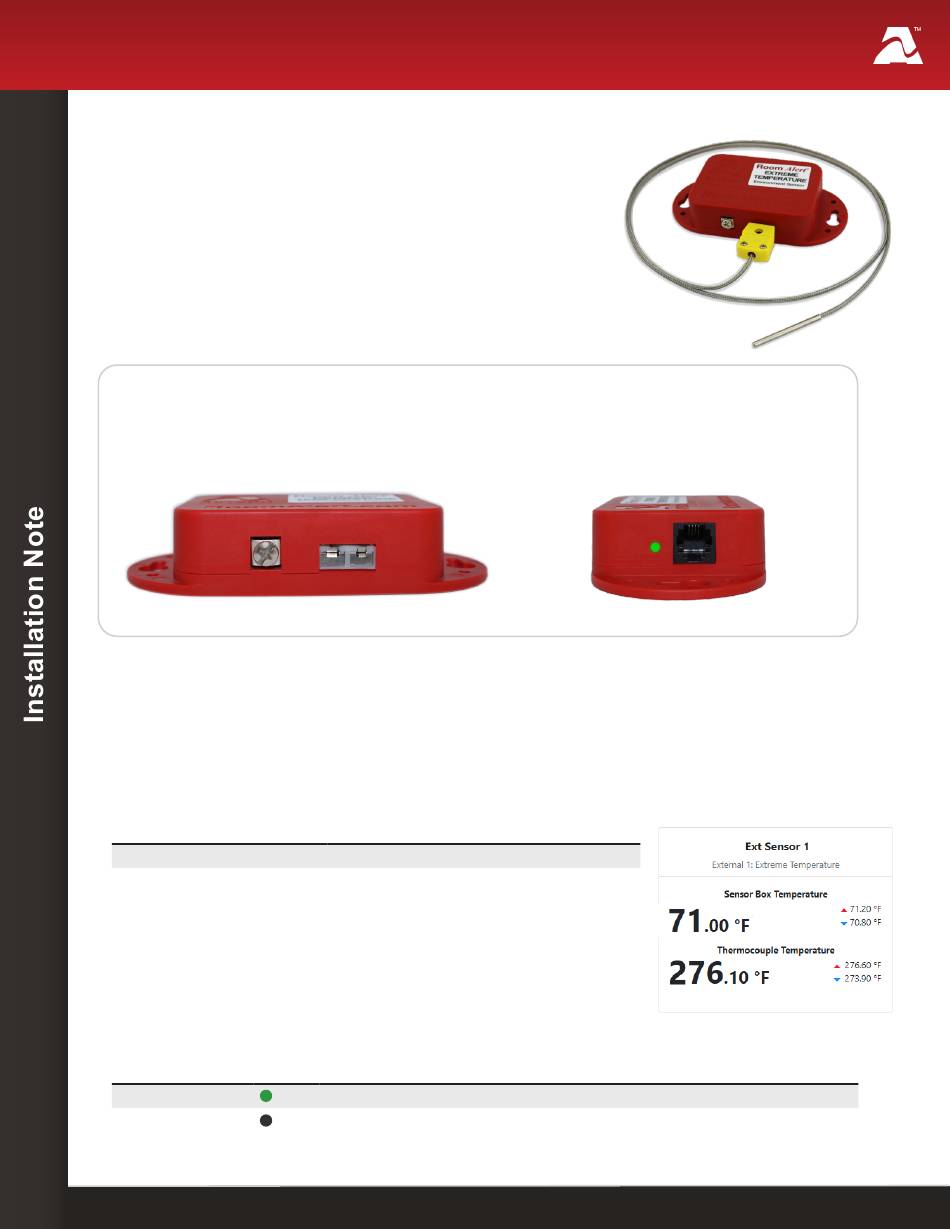

Digital Extreme Temperature Sensor
Ground
Screw
Digital Extreme Temperature Sensor Features
Sensor Box vs Thermocouple Probe Temperature
Your Digital Extreme Temperature Sensor detects 2 temperatures: that of the on-board
sensor inside the sensor box (room temperature) and that of the thermocouple probe
(extreme temperature). The table below shows the supported ranges:
Component
Sensor Box Temperature
Thermocouple Probe
The operating temperature for the thermocouple's cable is
32º F to 212º F (0º C to 100º C), which is a narrower range than
that of the probe.
Status LED
The sensor box includes an LED that indicates the following:
This LED Color...
Solid green
Unlit
AVTECH Software, Inc.
Digital Extreme Temperature Sensor
Thermocouple
Port
Front
Temperature Range
-40º F to 257º F (-40º C to 125º C)
-328º F to 932º F (-200º C to 500º C)
Means...
The Digital Extreme Temperature Sensor box is powered on
The Digital Extreme Temperature Sensor box is NOT powered on
Temperature & Environment Monitoring... Made Easy!
Thermocouple
Sensor
Probe
Status
RJ-11
LED
Port
Left
Box
