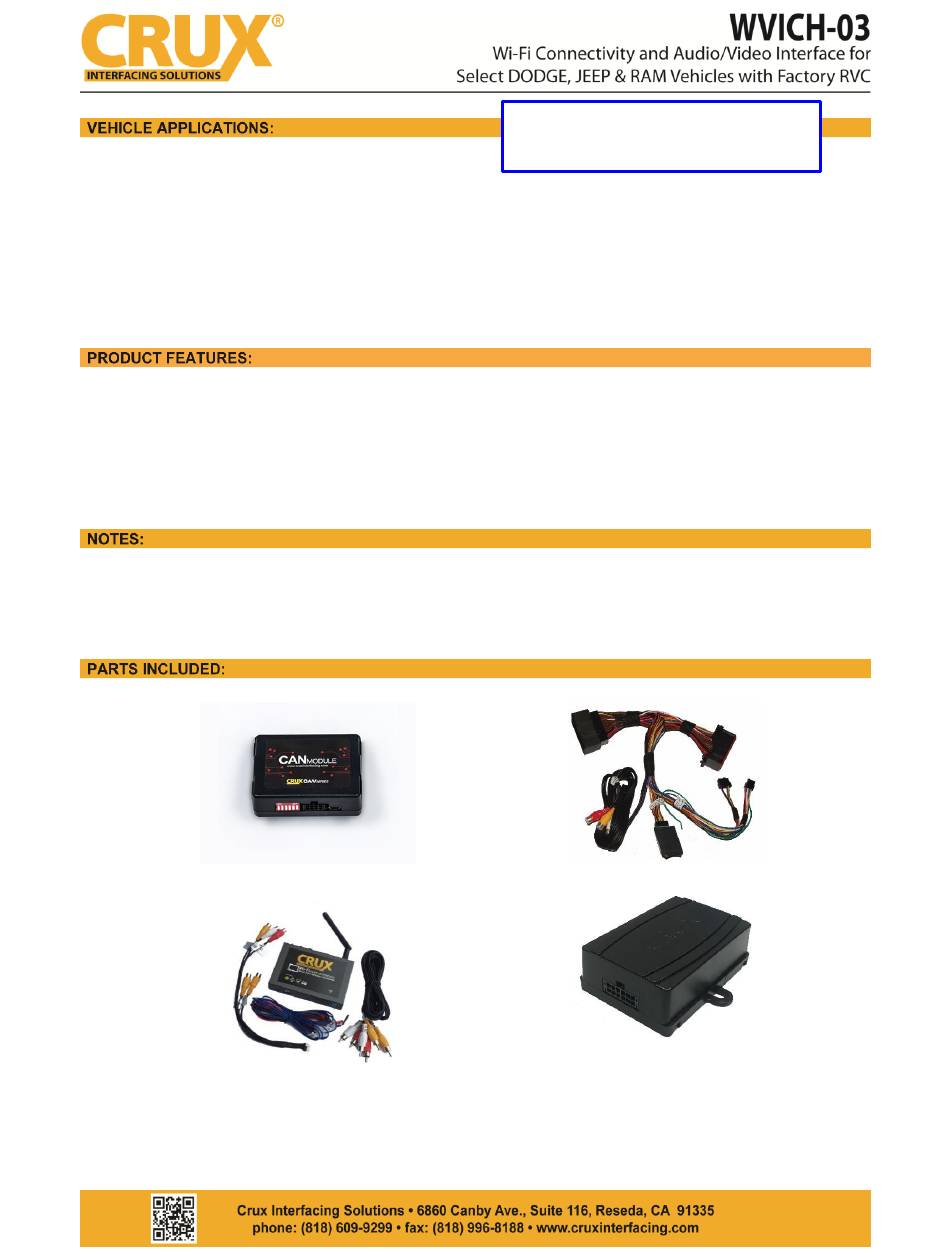

Crux WVICH-03 Manual

DODGE

2014 – 2015

Durango

JEEP

2014 - 2016

Grand Cherokee

- Enables wireless (Wi-Fi) Audio/Video mirroring from mobile devices to the OEM display screen for

shared linking of functions from most Smartphones to the OEM Screen.

- Provides an A/V input for devices with composite audio/video output.

- Offers 2 video outputs for multiple screen applications.

- Plug and Play Installation.

- Compatible with iOS and Android devices.

- Compatible with 8.4" and 5" Uconnect Radios.

- For vehicles without factory rear-view camera, see Part#: WVICH-03B

WVICH-03 CAN MODULE

WVI-X WiFi Interface

Now Streams YouTube videos

from iOS Devices!

RAM*

2013 – 2016

1500

2013 – 2016

2500

2013 – 2016

3500

*NOT compatible with diesel powered RAM trucks

WVICH-03 A/V Interface Harness

WVICH-03 VIM MODULE

1 / 4

Rev.081817

Table of Contents

Need help?

Do you have a question about the WVICH-03 and is the answer not in the manual?

Page 1 - Compatible with iOS and Android devices. - Compatible with 8.4” and 5” Uconnect Radios. - For vehicles without factory rear-view camera, see Part#: WVICH-03B WVICH-03 CAN MODULE WVICH-03 A/V Interface Harness WVI-X WiFi Interface WVICH-03 VIM MODULE Rev.081817 1 / 4...
Page 2 THE AV INTERFACE: 1. Remove the factory radio from the dashboard. 2. Remove the factory connectors from behind the factory radio. 3. Mate the T-Harness connections to the factory connectors. (Make sure all connectors are properly seated into the interface and into the radio.) 4.
Page 3 9. The WVICH-03 also offers 2 RCA video outputs for multiple monitor set-ups. 10. An HDMI output is available for HD video resolution. HDMI cable is not included in the kit. 11. Switch to the new AV input by pressing the BACK button on the radio or the middle button on the SWC.
