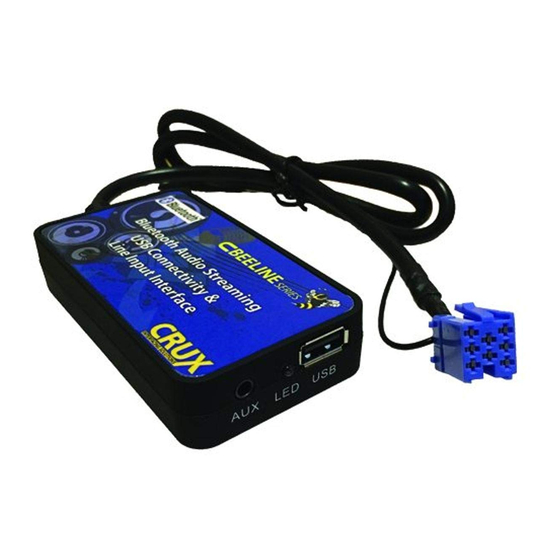

Adds Bluetooth Music streaming to select OEM Audi and Volkswagen radios.
-
USB music playback with track up, track down and folder controls from the radio panel or steering
wheel controls.
-
Adds 3.5mm auxiliary audio input jack.
-
Hear turn-by-turn Navigation App Voice Prompts
-
USB port on the module can also be used to charge your phone.
-
Magnetic phone mount included.
AUDI
1999-2005
A2
2001-2006
A3
1998-2006
A4 / S4
A6 / S6
2001-2004
A8 / S8
1998-2003
1. Radio must have an 8-pin CD changer port.
2. Not compatible with navigation radios.
on your car audio system while
VOLKSWAGEN
1999-2008
1998-2006
1999-2008
1999-2006
1/2
in Bluetooth mode.
Beetle
Golf
Jetta
Passat
Navigations Apps
iPod, USB flash drive
and 3.5mm cable not
included.
Rev.081116
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Crux BTS-VW1
Summary of Contents for Crux BTS-VW1
- Page 1 Adds Bluetooth Music streaming to select OEM Audi and Volkswagen radios. USB music playback with track up, track down and folder controls from the radio panel or steering wheel controls. Adds 3.5mm auxiliary audio input jack. Hear turn-by-turn Navigation App Voice Prompts in Bluetooth mode.
- Page 2 3. Plug the BLUE 8-pin connector of the BTS-VW1 to the CD changer port of the radio. 4. Connect the BLACK wire with ring terminal to a solid chassis ground. 5. If the line-in feature will be used, plug a 3.5mm to 3.5mm cable (sold separately) to the BTS-VW1 module and run towards the desired location.
