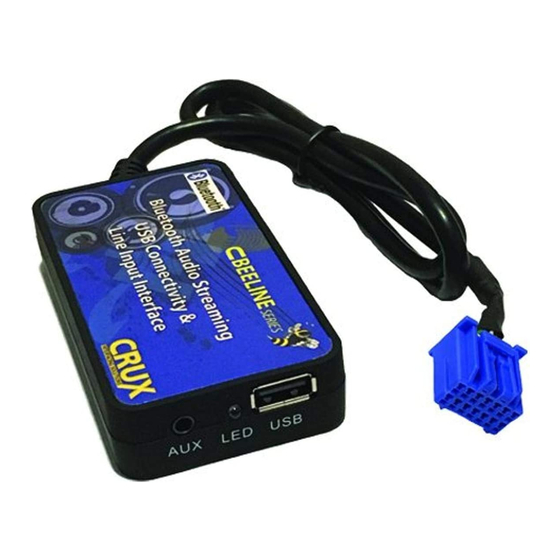

Crux BTS-HN1 Quick Start Manual

-
Adds Bluetooth Music streaming to the OEM Honda radio.
-
USB music playback with track up, track down and folder controls from the radio panel or steering
wheel controls.
-
Adds 3.5mm auxiliary audio input jack.
1. Radio must have a 14-pin CD changer port.
2. Not compatible with vehicles with DVD Navigation or
factory rear view camera.
3. The BTS-HN1 replaces the CD changer if present.
1. Carefully remove the radio to gain access to the radio connectors.
2. Locate the 14-pin CD changer port. If there is a connector plugged into this cavity, you need to
unplug it.
3. Plug the BLUE 14-pin connector of the BTS-HN1 to the CD changer port of the radio.
4. If the line-in feature will be used, plug a 3.5mm to 3.5mm cable (sold separately) to the BTS-HN1
module and run towards the desired location.
5. If a USB flash drive will be used, plug in a male to female USB cable (not included) to the
BTS-HN1 module and run to the desired location.
6. You can also mount the BTS-HN1 to an accessible location such as the center console or glove
box, to use the 3.5mm line-in and USB features.
7. Test the system for functionality before putting back the radio.
1/2
Navigations Apps
