Crux SWRFD-60E Manual

INTERFACING SOLUTIONS
PRODUCT FEATURES:
- Retains factory features in select Ford vehicles with 4" screen.
- Pre-programmed to retain factory Steering Wheel Controls.
- Retains factory 4" screen.
- Works on vehicles with or without Sync.
- Retains factory Aux-Input on vehicles without Sync.
- Retains voice command features on vehicles with Sync.
- Phone pick up and hang up functions using the steering wheel control buttons.
PARTS INCLUDED:

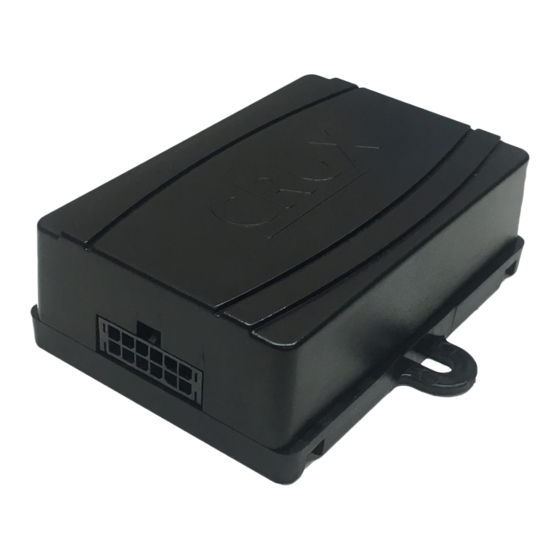

CAN Module

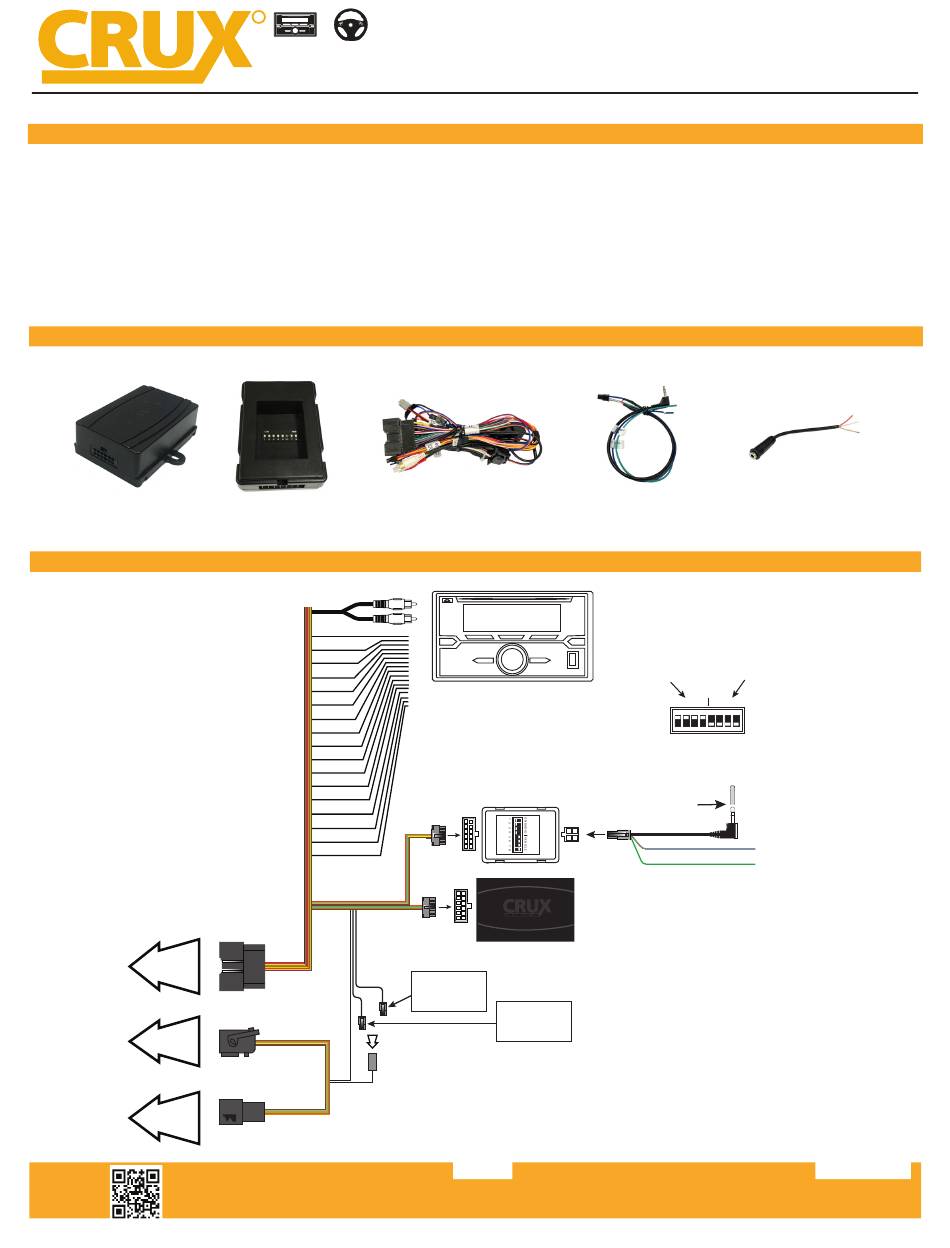

INSTALLATION DIAGRAM:
Factory Aux Input*
+12V Constant
+12V ACC
12V Ground
Illumination
Reverse Gear
Power Antenna
Vehicle Speed Sense
Right Front (+)
Right Front (-)
Left Front (+)
Left Front (-)
Right Rear (+)
Right Rear (-)
Left Rear (+)
Left Rear (-)
TO FACTORY
RADIO
HARNESS
TO FACTORY
SCREEN
TO FACTORY
SCREEN
HARNESS
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
R
+
RADIO REPLACEMENT
SWC RETENTION
SWC Module SWRFD-60E Harness
Yellow
Red
Black
Orange
Purple/White
Blue/White
Pink
Gray
Gray/Black
White
White/Black
Violet
Violet/Black
Green
Green/Black
24-Pin
Plug
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
Radio Replacement with Steering Wheel Control Retention
AFTERMARKET
RADIO
12-Pin SWC
MODULE
Connector
12-Pin
Connector
CAN
MODULE
SWC 1
with Sync
(Orange wire)
SWC 2
without Sync
(Blue wire)
* Retention of factory AUX Input is available ONLY on vehicles WITHOUT Sync.
1 of 5
SWRFD-60E
for Select Ford Vehicles with 4" Screen
SWC Cable
SWC 3.5MM PLUG ADAPTER
FORD
AFTERMARKET
SWC SETTING
RADIO SELECTOR
(OFF OFF OFF OFF)
(See Chart)
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
3.5MM SWC CABLE
Plug in the 3.5MM SWC cable to the 4-pin port
on the module. See "DIP SWITCH SETTINGS" section.
Cap or insulate if
not being used
Kenwood/JVC (BLUE / YELLOW)
Insulate with tape
if not being used
LIN BUS (Green)
