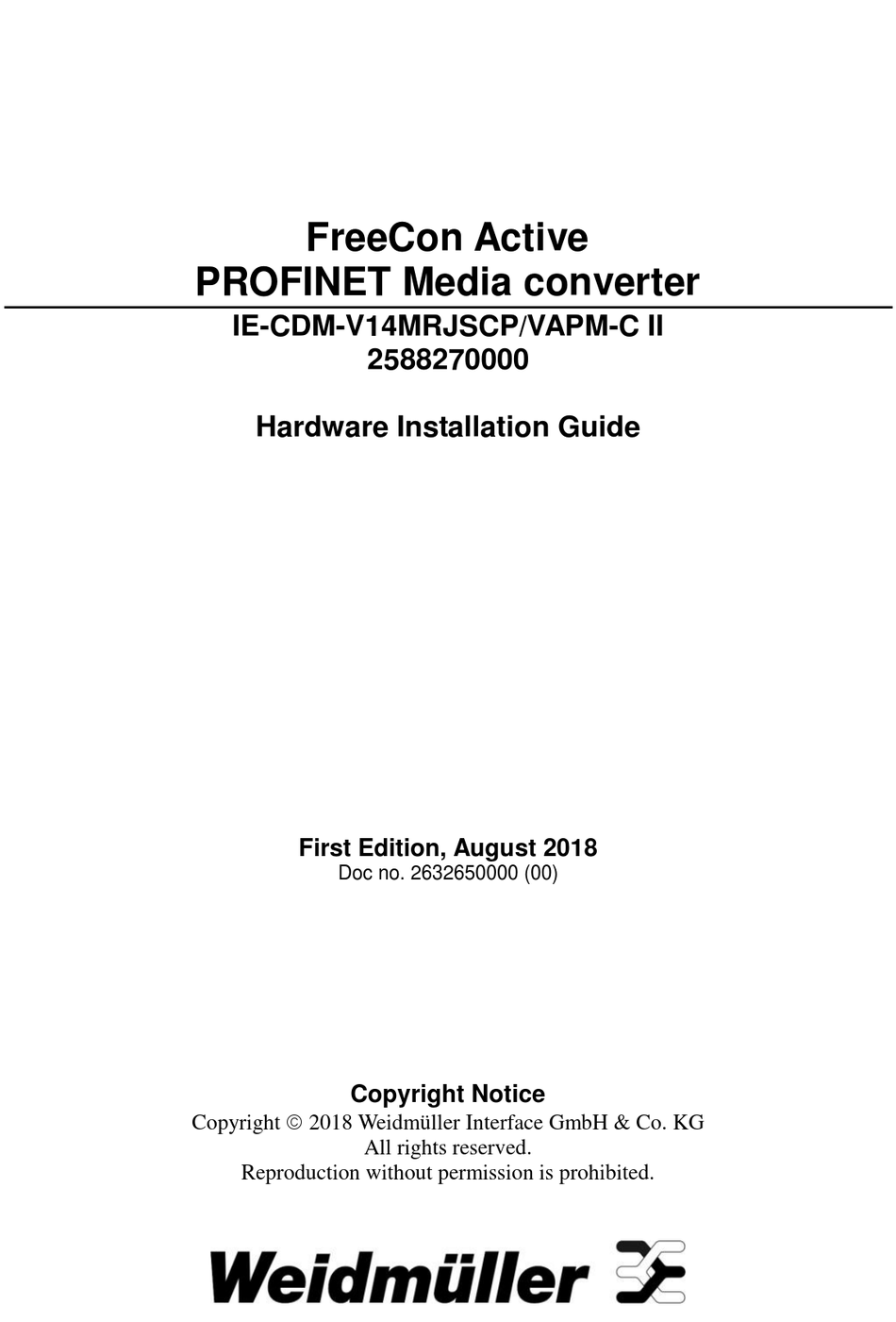

- Page 1 FreeCon Active PROFINET Media converter IE-CDM-V14MRJSCP/VAPM-C II 2588270000 Hardware Installation Guide First Edition, August 2018 Doc no. 2632650000 (00) Copyright Notice Copyright 2018 Weidmüller Interface GmbH & Co. KG All rights reserved. Reproduction without permission is prohibited.
-
Page 2: Package Checklist
Overview The FreeCon Active Series supports PROFINET IRT. The devices provides 18 to 30 VDC power input that can be connected simultaneously to a live DC power source.. The IP65 metal housing makes them rugged enough for any harsh industrial environment. Package Checklist Your FreeCon Active is shipped with the following items. -
Page 3: Mounting Dimensions (Unit = Mm)
Mounting Dimensions (unit = mm) Wall Mounting Mounting the FreeCon Active on the wall requires 4 screws. Use the FreeCon Active device as a guide to mark the correct locations of the 4 screws. We recommend M4x10mm (or longer), torque 2,5 Nm. - 3 -... -
Page 4: Wiring Requirements
Wiring Requirements WARNING Safety First! Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowable for each wire size. If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to your equipment. -
Page 5: Ethernet Port Connection
Ethernet Port Connection Use PushPull data plug: 1012170000 IE-PS-V14M-RJ45-FH-P for RJ45 port Use PushPull data plug: 1191550000 IE-PS-V14M-2SC-POF for SCRJ/POF port ATTENTION This is a Class 1 Laser/LED product. To avoid causing serious damage to your eyes, do not stare directly into the Laser Beam. LED Indicators The front panel of the Ethernet Switch contains several LED indicators. -
Page 6: Quick Start
Quick Start Take the GSDML file and fit it in the PLC configuration (Standard procedure of PROFINET engineering) Access via Internet browser with default IP address 0.0.0.0 1: Connect Power PushPull to the power port of FreeCon 2: Connect Data PushPull RJ45 and SCRJ to the data ports of FreeCon 3: Start Config tool (FreeCon CFG) on your PC (which is connected to the same Profinet) 4: Click on IP-address to change it (the shown IP is a sample) 5: Push set buttom to adopt the new values... -
Page 7: Specifications
Specifications Technology Standards 100BaseT, 100BaseFX POF, PROFINET IRT Interface Data Ports 100BaseT port, 100BaseFX POF (PROFINET PushPull (V14) connector) Optical Fiber 100BaseFX (POF) Wavelength 650 nm Max. TX -2 dBm Min. TX -8,5 dBm RX Sensitivity -25 dBm Link Budget 16,5 dB 50m* Typical Distance... -
Page 8: Contact Information
Weidmüller gives a warranty on this product in accordance with the warranty terms as described in the general conditions of sale of the Weidmüller company which has sold the product to you. Weidmüller warrants to you that such product defects of which have already existed at the time when the risk passed will be repaired by Weidmüller free of charge or that Weidmüller will provide a new, functionally equivalent product to replace the defective one.
