E22-900M22S User manual
Main parameter
Description
Remark
Test condition：clear and open area, antenna gain: 5dBi，antenna
Distance for reference
7000m
height: 2.5m，air data rate: 0.3kbps
FIFO
256Byte
Maximum length of single transmission
Crystal frequency
32MHz
Modulation
LoRa(recommended)
Package
SMD
Connector
1.27mm
Stamp hole
Communication interface
SPI
0-10Mbps
Size
20* 14*2.8 mm
Antenna
IPEX/IPEX
50 ohm impedance

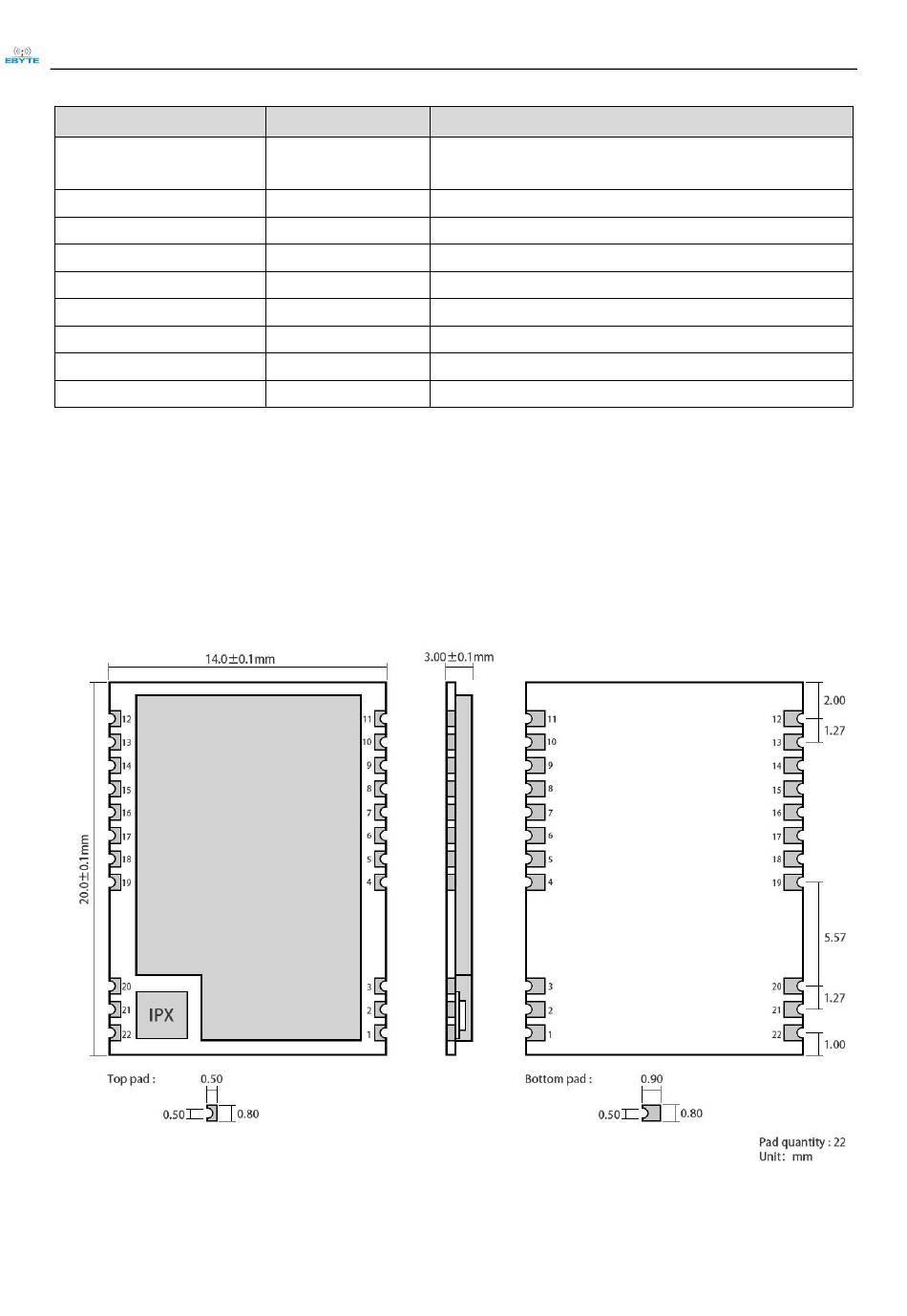

3. Size and pin definition
3
