Flo Slatwall Installation Instructions Manual page 7

Through Desk Fixing for Flo Monitor Arm

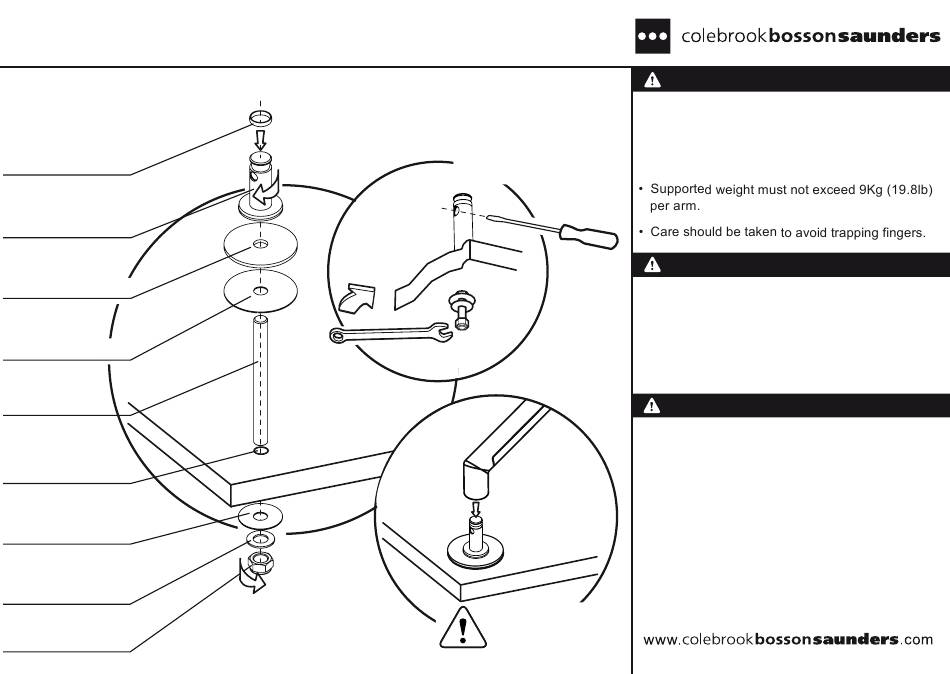

Through Desk Fixing
DYN/013/AS11/K
Ring
Spigot
63 mm spreader plate
63 mm nylon washer
Fixing stud
Ø12mm hole
38 mm nylon washer
M12 washer
Nut
Use screwdriver or similar
tool to hold Spigot in place
while tightening nut
underneath the desk
DO NOT attach the
monitor before fully
assembling arm onto
through desk fixing
WARNING
• Do not use this product for any purpose other than
that for which it was designed.
• Ensure desk/work surface is suitable to take the
weight of the arm/s and monitors
MAINTENANCE and INSPECTION
• Ensure all screws are tightened and occasionally
adjust if needed.
• Ensure arm is pushed fully down onto clamp before
installing the monitor
• Clean with a damp cloth, NO solvents.
DISCLAIMERS
• The use of power tools, lever bars or excessive forc
during the installation, or re-configuration of the
product will invalidate your guarantee.
• Failure to observe the recommendations in the use
and configuration of these products may affect you
guarantee.
DYN-013-002-INST-B MAY2012
