Maintenance And Inspection - Flo Slatwall Installation Instructions Manual

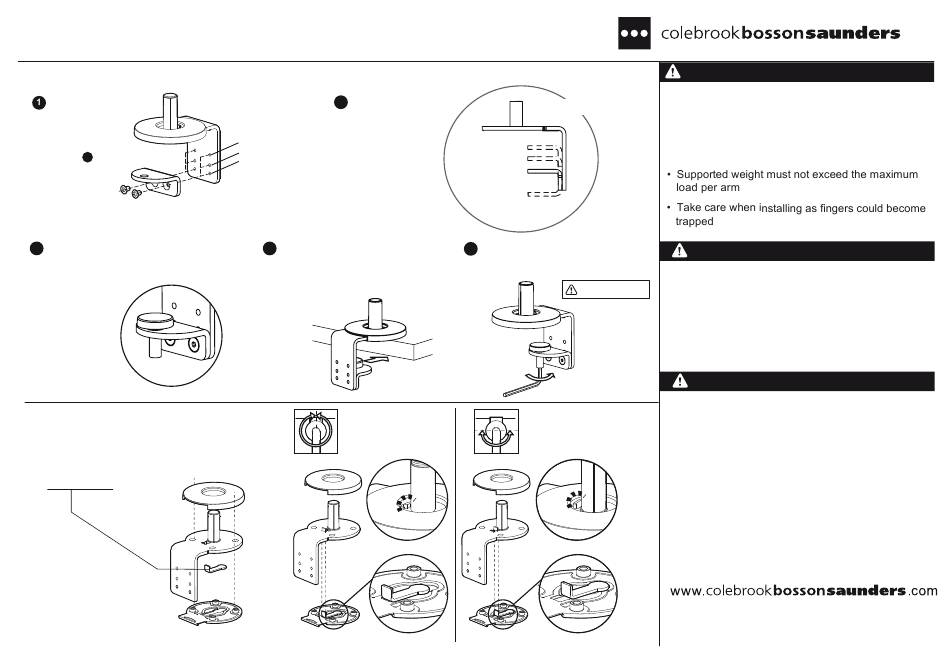

Flo Split Desk Clamp
DYN/013/AS09
Fit M6 screws
into clamp plate
(for desks with screens
follow step first)
4
3
Fit M10 screw to clamp plate
with clamp pad in position
Reconfiguring the 180˚ stop function
The Flo clamp base is factory fitted with a
180˚ stop feature. You can permit 360˚ rotation
by simply pulling the cover and base from the
clamp and repositioning
the stop feature as shown.
2
Fit clamp plate
to bracket using
hole position to
Setting 1
Setting 2 suit required
Setting 3/4
desk thickness
4
Fit clamp to worksurface. Ensure
back of the clamp is flush against
edge of the worksurface
360˚ rotation configuration
360˚
Maximum Desk Thicknesses
Setting 1: 13mm (1/2")
Setting 2: 28mm (1")
Setting 3: 40mm (1 1/2")
Setting 4: 71mm (2 3/4")
5
Tighten M10 clamp screw
Fully tighten the screw
180˚ rotation configuration
180˚
WARNING
• Do not use this product for any purpose other than
that for which it was designed
• Ensure desk/work surface is suitable to take the
weight of the arm/s and monitors

MAINTENANCE and INSPECTION

• Ensure all screws are tightened and occasionally
adjust if needed
• Ensure post is pushed fully down onto clamp before
installing the arm and monitor
• Clean with a damp cloth, NO solvents
DISCLAIMERS
• The use of power tools, lever bars or excessive force
during the installation, or re-configuration of the
product will invalidate your guarantee
• Failure to observe the recommendations in the use,
and configuration of these products may affect your
guarantee
DYN-013-AS09-INST-A MAY2012
