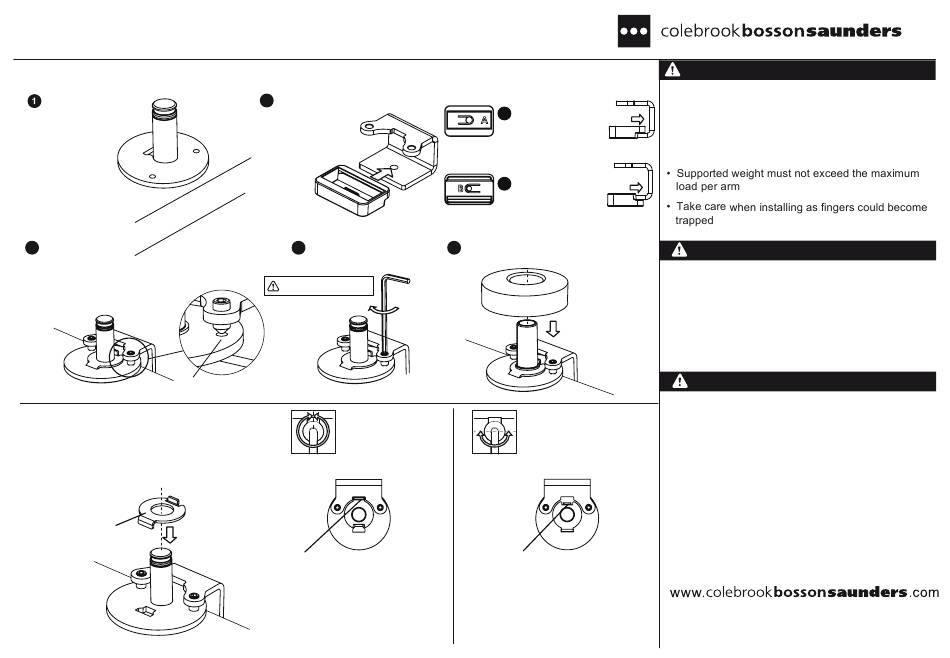

Flo Slatwall Installation Instructions Manual page 6

Flo Top Mount Clamp
DYN/013/C25
Place clamp plate in
position on worksurface
3
Pass C-bracket and spacer around work surface.
Ensure inside of bracket is flush against the work
surface. Locate screws into clamp plate
Locate screw point into
clamp plate recess
Configuring the 180° stop function
The Flo top mount clamp features a
180˚ stop feature. Arm rotation can
be limited by simply placing the stop
feature in the positions shown
Place stop over spigot
2
Attach spacer pad to
C-bracket in required
orientation
4
Tighten clamp screws
Fully tighten the screws
360˚ rotation configuration
Tab sticking up
Facing up
A
12-18mm surface thickness
Facing up
B
19-25mm surface thickness
5
Fit the bush and clamp cover
180˚ rotation configuration
180˚
Tab sticking up
WARNING
• Do not use this product for any purpose other than
that for which it was designed
• Ensure desk/work surface is suitable to take the
weight of the arm/s and monitors
MAINTENANCE and INSPECTION
• Ensure all screws are tightened and occasionally
adjust if needed
• Ensure post is pushed fully down onto clamp before
installing the arm and monitor
• Clean with a damp cloth, NO solvents
DISCLAIMERS
• The use of power tools, lever bars or excessive force
during the installation, or re-configuration of the
product will invalidate your guarantee
• Failure to observe the recommendations in the use,
and configuration of these products may affect your
guarantee
DYN-013-C25-INST-A MAY2012
