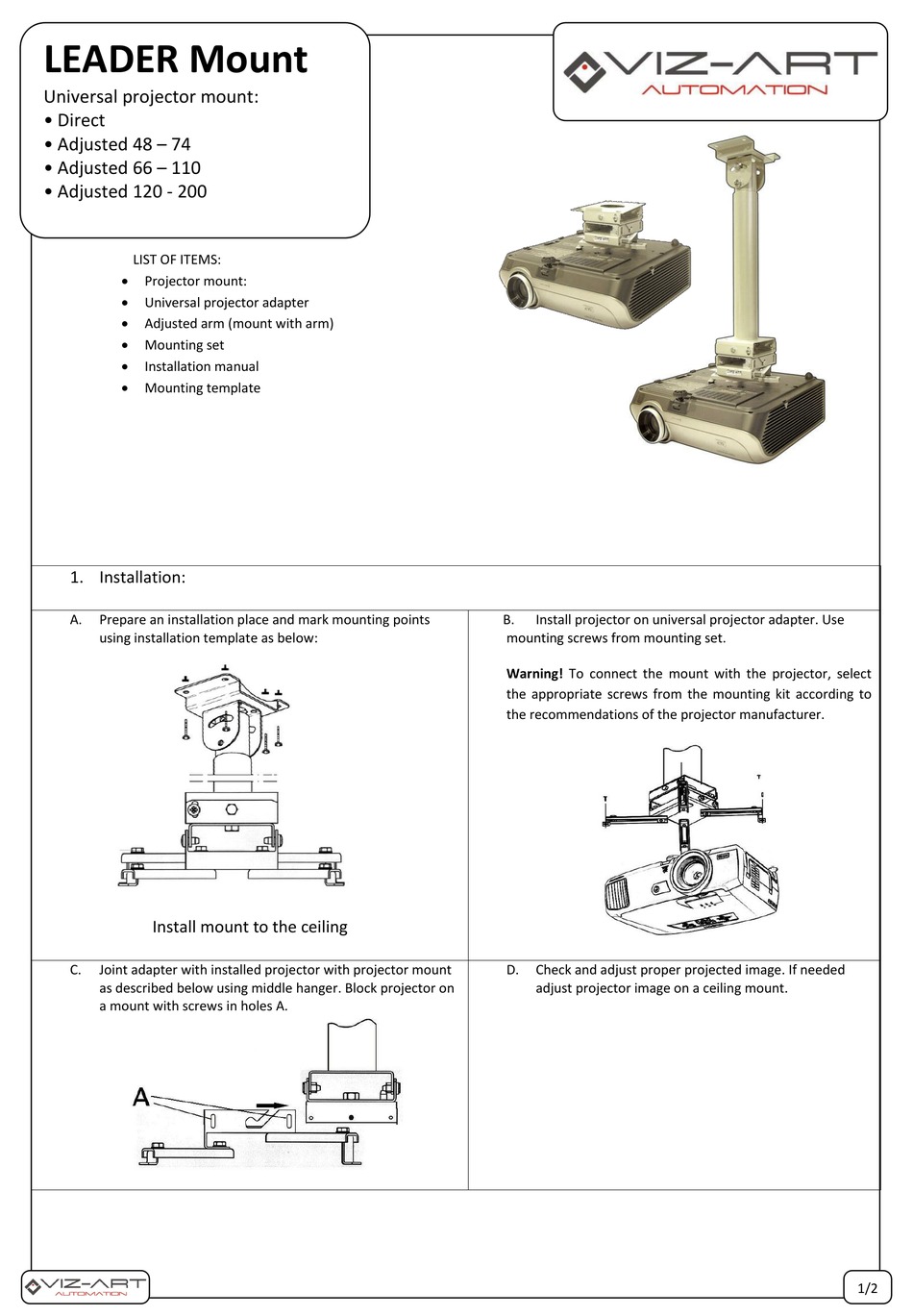

Viz-Art Automation LEADER Mount Manual

LEADER Mount
Universal projector mount:
• Direct
• Adjusted 48 – 74
• Adjusted 66 – 110
• Adjusted 120 - 200
LIST OF ITEMS:

Projector mount:

Universal projector adapter

Adjusted arm (mount with arm)

Mounting set

Installation manual

Mounting template
1. Installation:
A. Prepare an installation place and mark mounting points
using installation template as below:
Install mount to the ceiling
C. Joint adapter with installed projector with projector mount
as described below using middle hanger. Block projector on
a mount with screws in holes A.
B. Install projector on universal projector adapter. Use
mounting screws from mounting set.
Warning! To connect the mount with the projector, select
the appropriate screws from the mounting kit according to
the recommendations of the projector manufacturer.
D. Check and adjust proper projected image. If needed
adjust projector image on a ceiling mount.
