Viz-Art Automation SPAV Series Installation Manual

SPAV LIFT
Projector lift:
•SPAV 30/420; •SPAV 30/780; •SPAV 30/1560; •SPAV 30/1960;
•SPAV 30/2800; •SPAV 30/3500; •SPAV 30/4200

LIST OF COMPONENTS:


Lift

Ceiling closure panel

Push-button switch

Installation template

Installation manual

Mounting kit

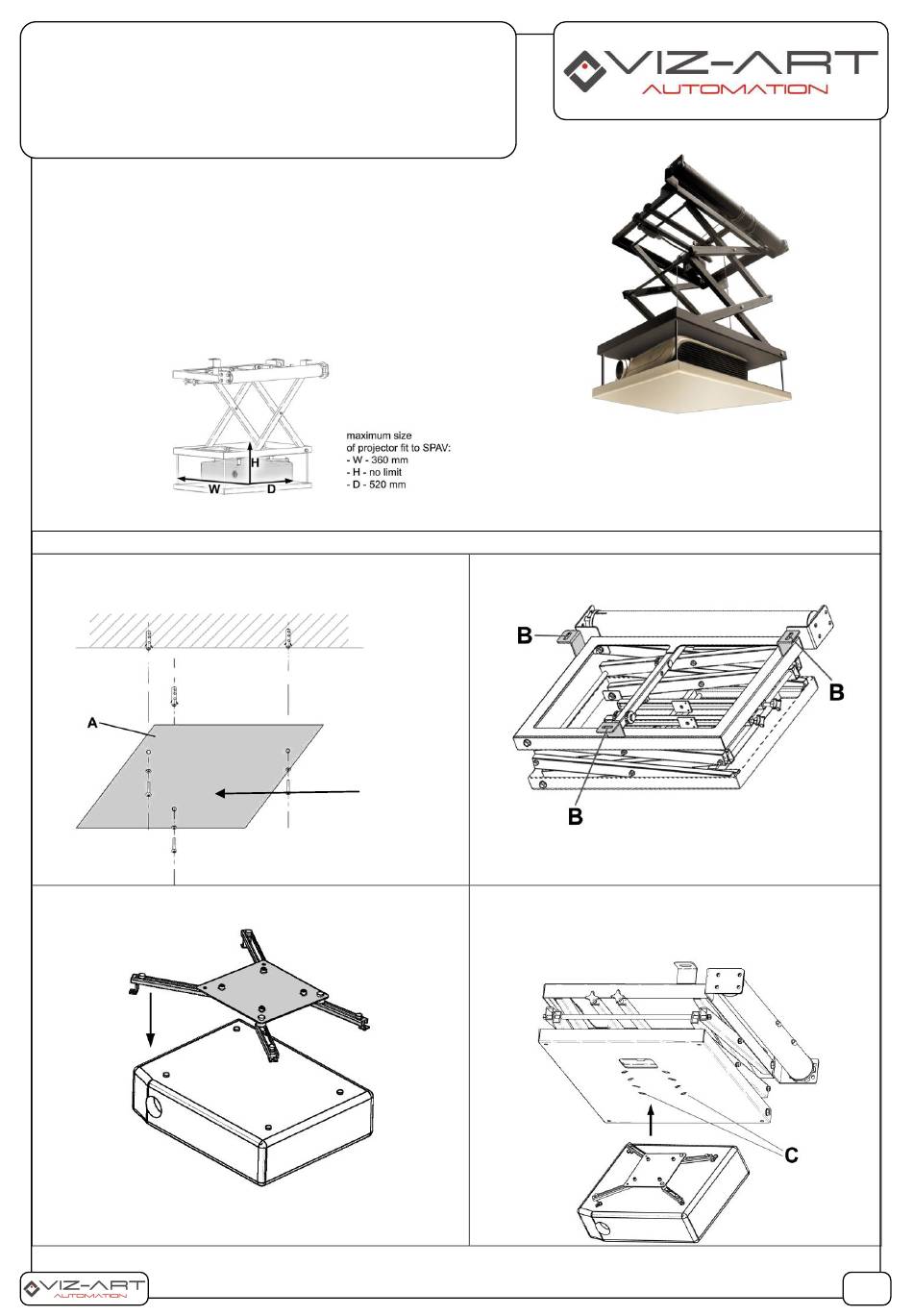

1. INSTALLATION:

A.
Determine the mounting location for the lift in the
structural ceiling using the template (transport plate A). Drill
holes and insert wall plugs (included in the mounting kit).
C.
Install the universal projector bracket using screws included
in the mounting kit.
B.
Raise the lift and fit it to the structural ceiling using
screws (marked B).
3 or 4
points
mounting
system
D.
Mount the projector along with the mounting
component (adaptor) to the base of the lift –
mechanical platform. "C" openings in the platform
allow you to adjust the projector mounting distance.
1/5
