Viz-Art Automation SLIM Series Installation Manual

SLIM LIFT
Projector Lift
 SLIM 12/1640
 SLIM 10/3250
LIST OF ITEMS:
 Lift,
 Adapter,
 Ceiling closing panel (frame),
 Button switch,
 Mounting template,
 Mounting instruction manual,
 Assembly kit

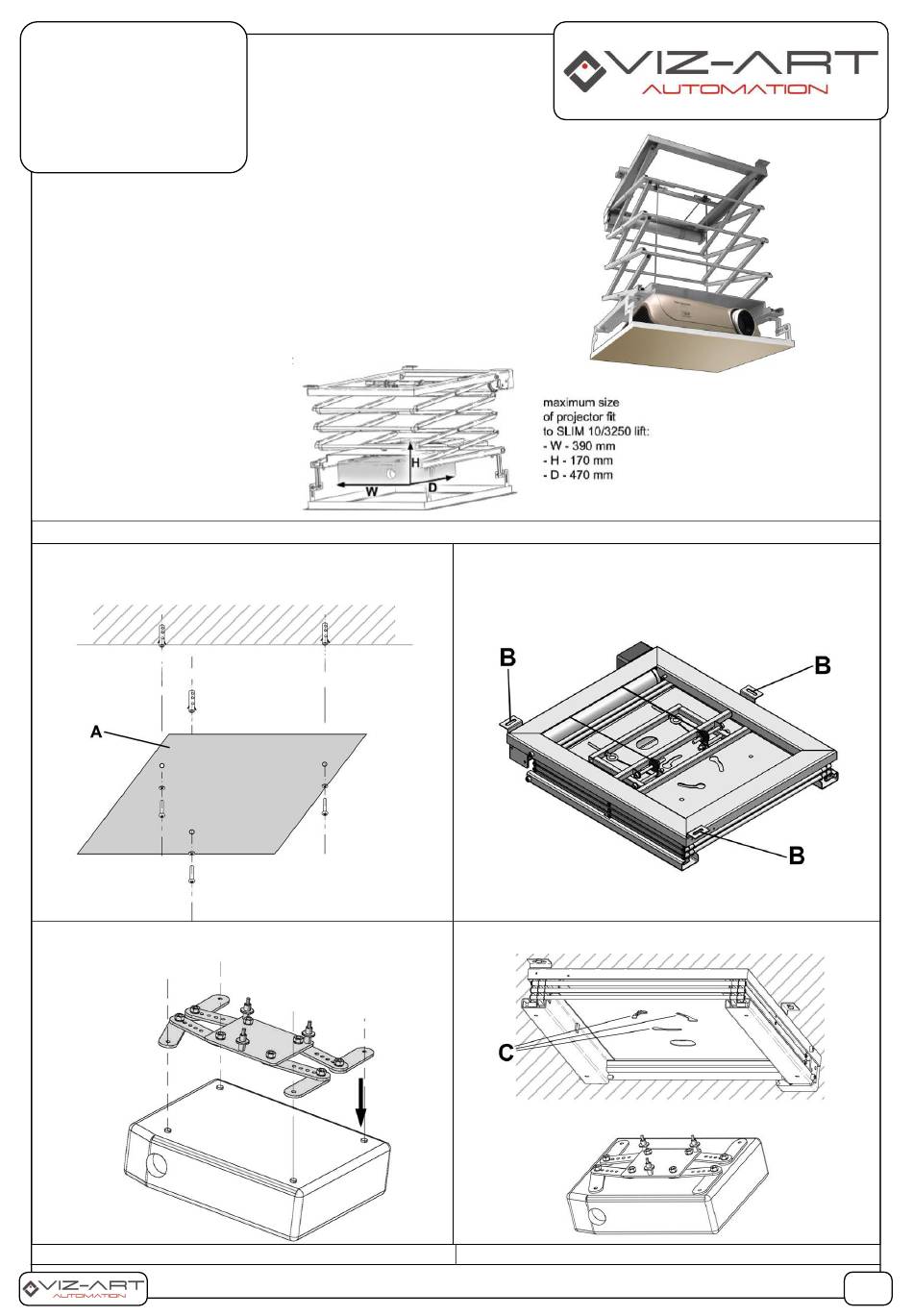

1. INSTALLATION:
A.
Choose the lift mounting site on fixed ceiling, using the
template (transport plate A). Drill holes and install expansion
plugs (from the kit).
C.
Install the universal projector holder, using screws
(fromthe kit)
E.
Insert elements "D" into holes "C" and turn the assembly
B.
Raise the lift and screw to the fixed ceiling in sites marked
as B.
D.
Install the projector and adapter on the SLIM lift
F.
Turn On the projector and, rotating the adapter on the lift,
