Viz-Art Automation SLIM 12/1640 Quick Start Manual

Projector lift
Hide thumbs
1
2
3
4
5
Table of Contents

Advertisement

Quick Links

Download this manual

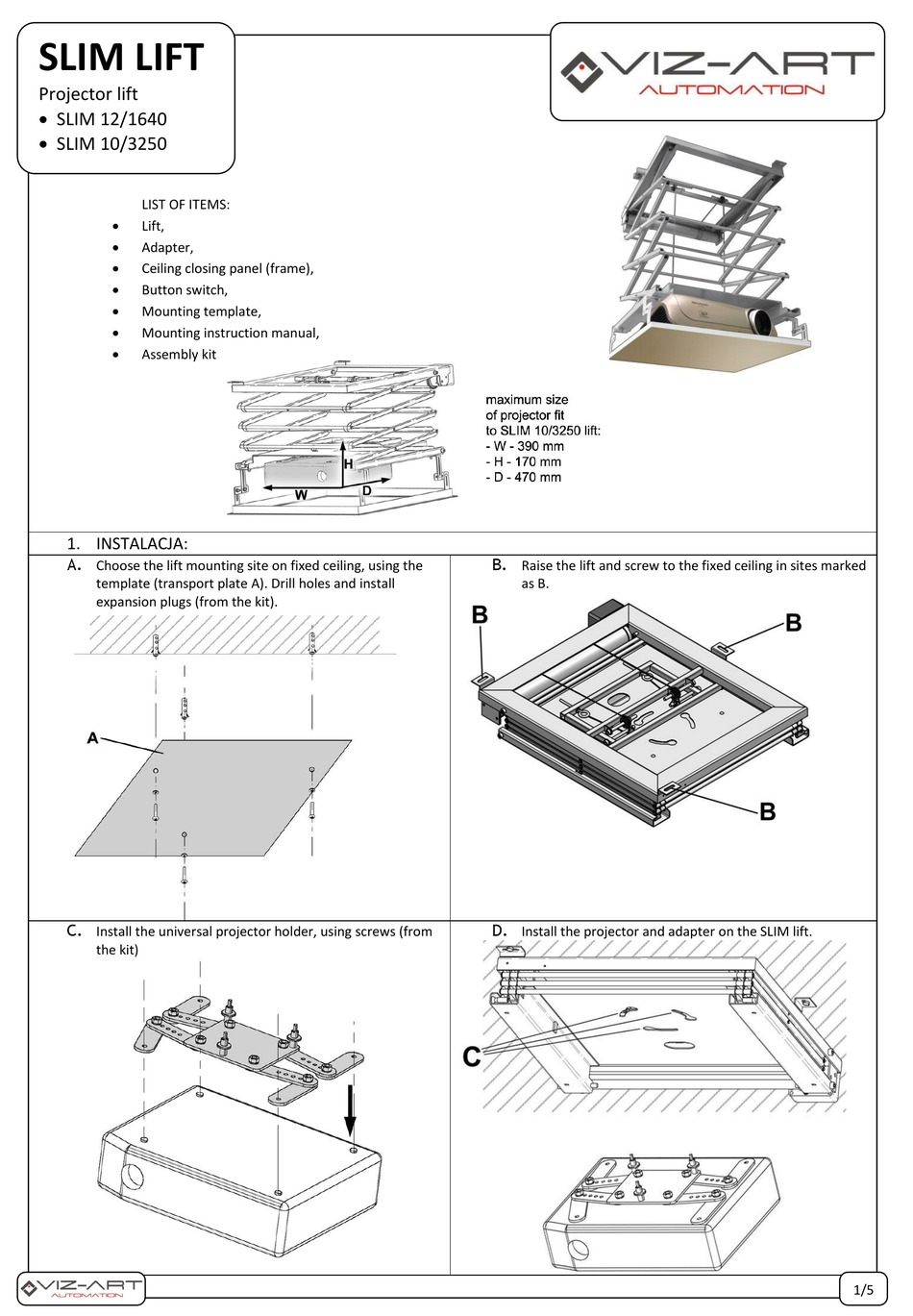

SLIM LIFT
Projector lift
 SLIM 12/1640
 SLIM 10/3250

LIST OF ITEMS:

Lift,
Adapter,
Ceiling closing panel (frame),
Button switch,
Mounting template,
Mounting instruction manual,
Assembly kit

1. INSTALACJA:

A.
Choose the lift mounting site on fixed ceiling, using the
template (transport plate A). Drill holes and install
expansion plugs (from the kit).
C.
Install the universal projector holder, using screws (from
the kit)
B.
Raise the lift and screw to the fixed ceiling in sites marked
as B.
D.
Install the projector and adapter on the SLIM lift.
1/5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLIM 12/1640 and is the answer not in the manual?

Questions and answers

Related Manuals for Viz-Art Automation SLIM 12/1640

Summary of Contents for Viz-Art Automation SLIM 12/1640

  • Page 1 SLIM LIFT Projector lift  SLIM 12/1640  SLIM 10/3250 LIST OF ITEMS:  Lift,  Adapter,  Ceiling closing panel (frame),  Button switch,  Mounting template,  Mounting instruction manual,  Assembly kit 1. INSTALACJA: Choose the lift mounting site on fixed ceiling, using the Raise the lift and screw to the fixed ceiling in sites marked template (transport plate A).
  • Page 2 Insert elements "D" into holes "C" and turn the assembly Turn on the projector and, rotating the adapter on the around to lock the elements in oblong holes. lift, align the image on the screen. The drawing illustrates the appropriate installation of After inserting elements "D"...
  • Page 3 MOUNTING CLOSING PANEL: The lift may be connected to 230 V power mains only by personnel with appropriate licenses and according to the circuit diagram. 4. MANUAL PROGRAMMING Programming the upper and lower position of the SLIM lift.
  • Page 4 Caution! Check the arrangement of the cables carefully, making sure they do not tangle with the lift arms, as this could damage both the cables and the lift. 7. TECHNICAL DATA: SLIM 12/1640 – 1640mm Extension: SLIM 10/3250 – 3250mm SLIM 12/1640 –...
  • Page 5 Rules of safe operation of VIZ-ART AUTOMATION equipment. SAFETY INFORMATION CAUTION To ensure safety of the personnel, make sure to follow the guidelines provided in this instruction manual. Keep the instruction manual for future reference. • Do not allow children to play with the device controller (switch or remote control).
