BEGA 71 128 Installation And Technical Information

BEGA
Installation and Technical Information

Tools Required:

3mm hex key

Notice to Installer for 71 128:

1. See page 2 for specific product safety warnings.
NOTE: For proper installation, an accompanying system bollard tube must be
selected with the bollard head.

71 128 installation:

1. Install bollard tube per bollard tube installation instructions, including anchorage and
supply wiring connections (if applicable).
2. Insert bollard head into bollard tube by aligning pins.
3. Twist clockwise until bollard head will no longer turn. (Figure 1).
4. Lock into place by tightening hex screw.

Relamping/Maintenance

No relamping required.
In the interest of product improvement, BEGA reserves the right to make technical changes without notice.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 Fax (805)566-9474 www.bega-us.com © Copyright BEGA-US 2019

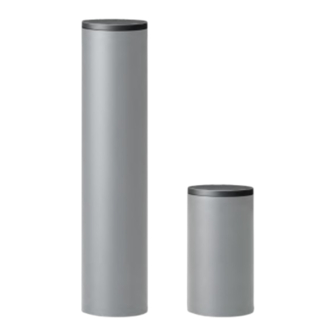

LED system bollard - luminaire head - unlit cap
A
B

Bollard Tube Options:

Please refer to bollard head
specification sheet for a complete list
of compatible bollard tube options.

Dimensions

A: 10 3/8 "
B: 7/8 "
Figure 1

Replacement Parts:

Description
71 128
Part No
71 128
03/29/2019
1 of 2
