BEGA 88 309 Installation And Technical Information

BEGA
Installation and Technical Information

Tools Required:

5mm hex key
6mm hex key
8mm hex key
Adjustable wrench
Protection Class: IP65
Weight: 50.0 lbs.

Notice to Installer for 88 309:

1. For pole top applications only.
2. Slip fits 3" O.D. pole top or tenon.
3. Luminaire requires ballast mounted in minimum 5" butt hinge base pole. NOTE:
Lower pole before installing luminaire and ballast tray.
4. Luminaire requires at least 3-1/2" of straight diameter pole or tenon.

88 309 assembly:

1. Loosen the (2) 8mm hex screws at the top of the support rods and remove
screws and fixing plates.
2. Attach the reflector disk to the support rods by positioning the joint shells over
the joint bearings. Make sure the drip edges are oriented downwards.
3. Replace the fixing plates and screws.

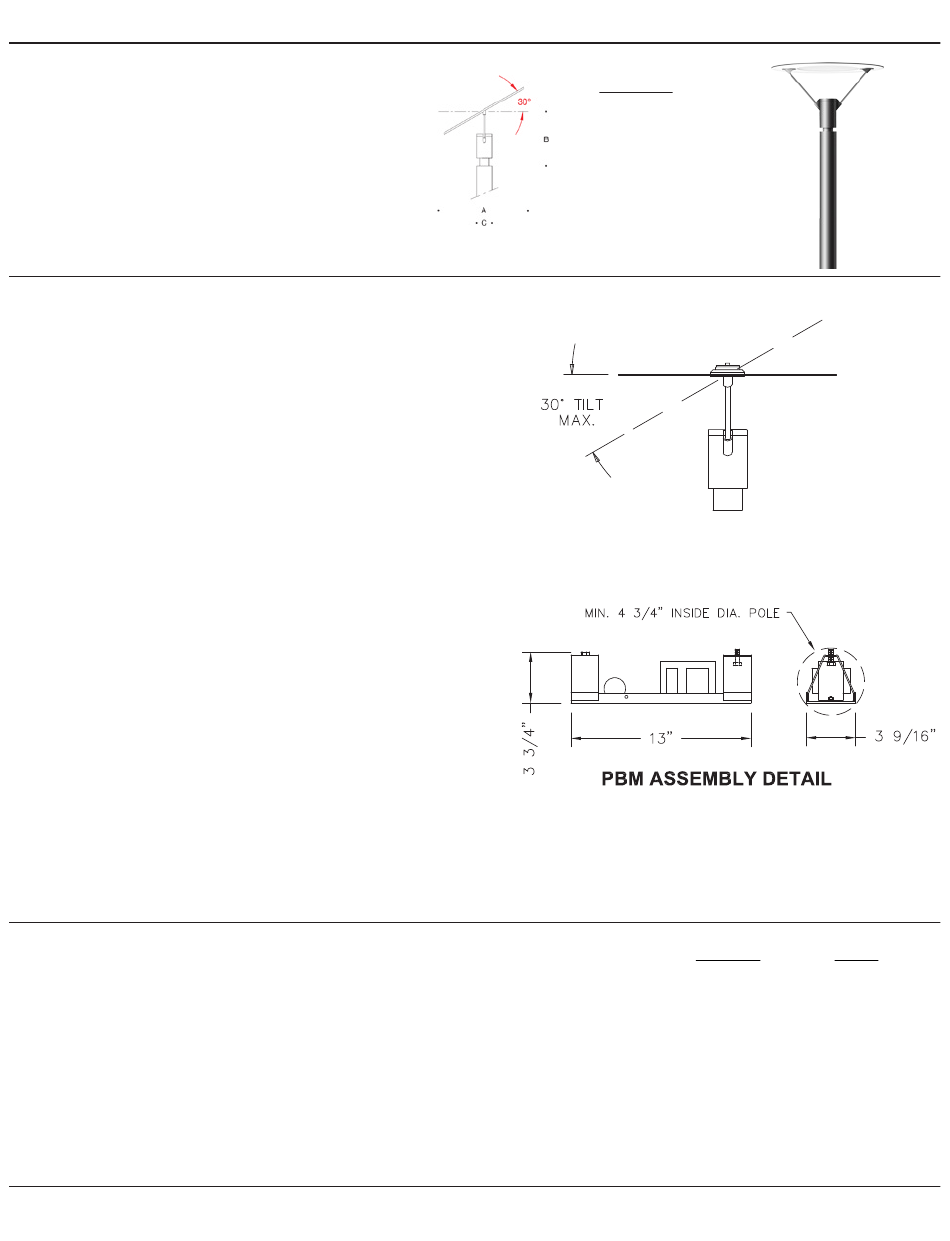

4. Tilt the reflector to the desired orientation (0-30 degrees). Consult factory for
non-adjustability option.
5. Tighten the (2) 8mm screws to secure in place.

88 309 - installation:

1. Carefully hinge down pole, exposing bottom of pole.
2. Route the luminaire wiring through to the pole top base and slip luminaire over
the top of the pole.
3. Tighten the (8) 5mm set screws evenly to secure to pole.
4. Make wiring connections from luminaire wires to gear tray wires:
BLACK LUMINAIRE WIRE TO BLACK MARKED SOCKET WIRE
WHITE LUMINAIRE WIRE TO WHITE MARKED SOCKET WIRE
GREEN LUMINAIRE WIRE TO GREEN GROUND WIRE
5. Place the gear tray in the base of the pole and tighten the 5/16" hex bolt to
wedge inside pole and secure.
6. Make supply wiring connections to gear tray wires:
MAIN VOLTAGE SUPPLY WIRE TO BLACK DRIVER WIRE
NEUTRAL (COMMON) SUPPLY WIRE TO WHITE DRIVER WIRE
GREEN GROUND WIRE TO GREEN DRIVER WIRE
7. Replace pole to upright position and secure by tightening (3) base bolts.
IMPORTANT: PLEASE NOTE THE WEIGHT OF LUMINAIRE HEAD ON
POLE AND TAKE CAUTION ACCORDINGLY DURING POLE TILT

Relamping/Maintenance

No relamping required.
Lamp: 55.3W LED
In the interest of product improvement, BEGA reserves the right to make technical changes without notice.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 Fax (805)566-9474 www.bega-us.com © Copyright BEGA-US 2018
Accessories
Please refer to the appropriate
accessory installation sheet for
further instruction when applicable.

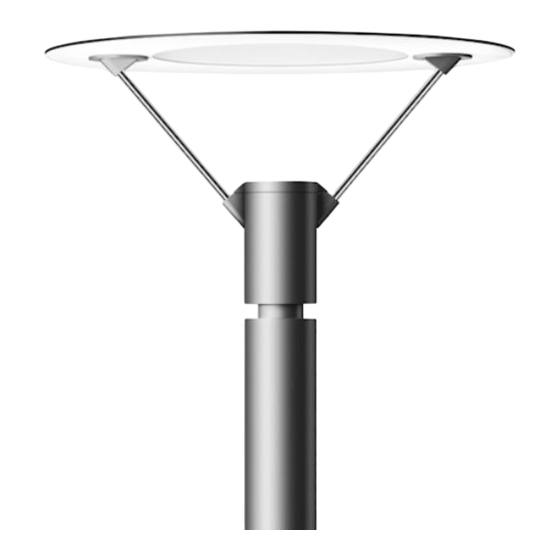

Pole top - indirect

Dimensions

A: 39-3/8 "
B: 24-1/4 "

Replacement Parts

Description
Lens
Lens gasket
Reflector disc
Driver (120-277V)
LED Module (3000K)
LED Module (4000K)
88 309
Part No
140273
830647
710945
75976
LED-0721/830
LED-0721/840
88 309
10/9/2018
Page 1 of 2
