Di-Acro 36 Instruction Manual

Finger brake
Hide thumbs Also See for 36:

Advertisement

Table of Contents

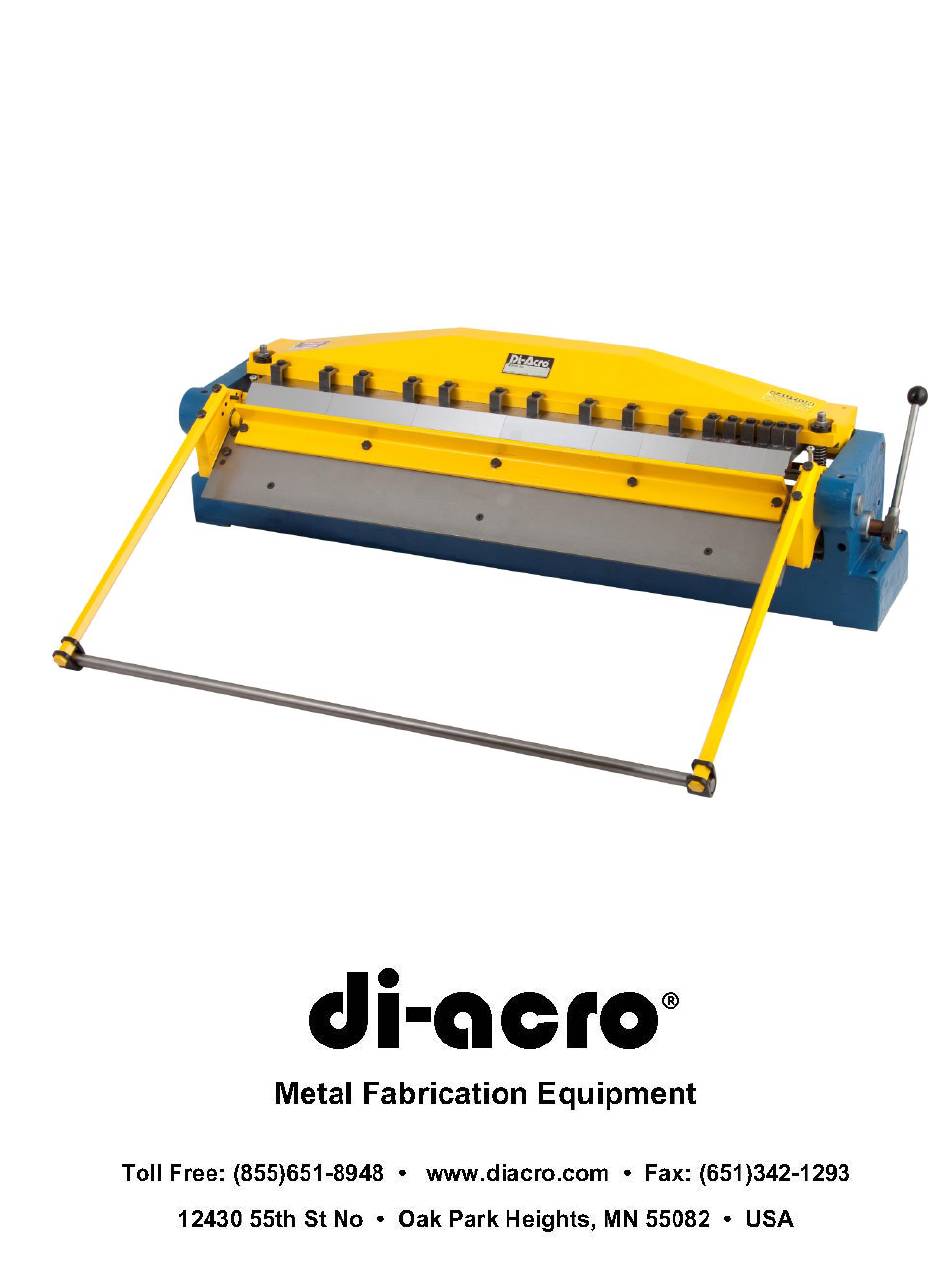

DI-ACRO
#36 FINGER BRAKE
INSTRUCTION MANUAL
REV. D 9/12
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 36 and is the answer not in the manual?

Questions and answers

Related Manuals for Di-Acro 36

Summary of Contents for Di-Acro 36

  • Page 1 DI-ACRO #36 FINGER BRAKE INSTRUCTION MANUAL REV. D 9/12...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY INFORMATION PG. 3 ANGLE ADJUSTMENT PG. 4 #36 FINGER BRAKE BREAKDOWN AND PARTS LIST PG. 5-7 MICROMETER BACK GAUGE PG. 8 OPTIONAL STAND PG. 9 WARRANTY PG. 10 REV. D 9/12...

  • Page 3: Safety Information

    SAFETY INFORMATION Before brake is set up for operation, mount on work bench or stand* with brake base flush with the front edge of stand or work bench and bolt in place. *IF BRAKE IS MOUNTED ON ITS OWN STAND, SECURE STAND TO FLOOR REV.

  • Page 4: Angle Adjustment

    PART FORMING A REVERSE BEND = 1/4 FINGERS BOTTOM PLATE NOTE: Di-Acro Brakes are rated for 1” minimum flange when bending full capacity. Caution should be used if necessary to bend heavier gauge material in short widths. SPECIFICATIONS No. 36 Max.

  • Page 5: 36 Finger Brake Breakdown And Parts List

    #36 FINGER BRAKE BREAKDOWN 8348820-080 REV. D 9/12...
  • Page 6 Parts List 8348820-080 ITEM PART NUMBER DESCRIPTION 30X0102C NUT-FULL 1/2-13 8490500-100 WASHER SET 23A0104C0308 SCREW-SSS 1/4-20X3/8 8348111-000 FINGER MOUNT 8348310-700 THRUST BRG 8348510-200 SPRING 21A0104C0102 SCREW-HHCS 1/4-20X1/2 8348140-700 SPRING BRACKET 8348121-100 STUD 8348121-200 CONNECTING ARM 8120810-700 PLASTIC KNOB 8310300-900 NEEDLE BEARING 346-1208030 CLAMP HANDLE BLOCK 8500111-300...
  • Page 7 Parts List - Continued 8348820-080 ITEM PART NUMBER DESCRIPTION 19A0104X1000 PIN-DOWEL 1/4X1 8500122-000 FOLDING BAR STOP 31X0516C NUT-JAM 5/16-18 8251470-101 ARM ADJUSTMENT BOLT 8400122-000 LEFT ARM 8310300-600 NEEDLE BEARING 8346120-300 TRUNION 21A0308C1104 SCREW-HHCS 3/8-16X1-1/4 8346120-801 HANDLE ARM 8348131-000 HANDLE BLOCK 23A0104C0308 SCREW-SSS 1/4-20X3/8 8348131-200...

  • Page 8: Micrometer Back Gauge

    MICROMETER BACK GAUGE - #8348144-170 Typically the back gauge is assembled when the finger brake is shipped from the factory. Occasionally it is removed for ease of palletizing. To install and/or zero the gauge follow the instructions below. 1. Install quik set rod (item 82) in holes located in rear of the base casting.

  • Page 9: Optional Stand

    OPTIONAL STAND Stand Dimensions: 48” WIDE, 15” DEEP, 33-1/4” HIGH Part Number: 838110-900 CALL DI-ACRO FOR PRICE AND AVAILABILITY Fasteners needed to attach Finger Brake to stand are the following: Fasteners to attach stand to floor are not included PART NUMBER...

  • Page 10: Warranty

    Warranty & Limitation of Liability Defective parts, of a product manufactured by DI-ACRO, will be replaced or repaired at no charge for twelve (12) months following delivery to the original purchaser. Labor is included for the first 90 days. This warranty becomes void when products have not been used according to instructions furnished by DI-ACRO, nor does it cover any altered parts or unauthorized repairs.
