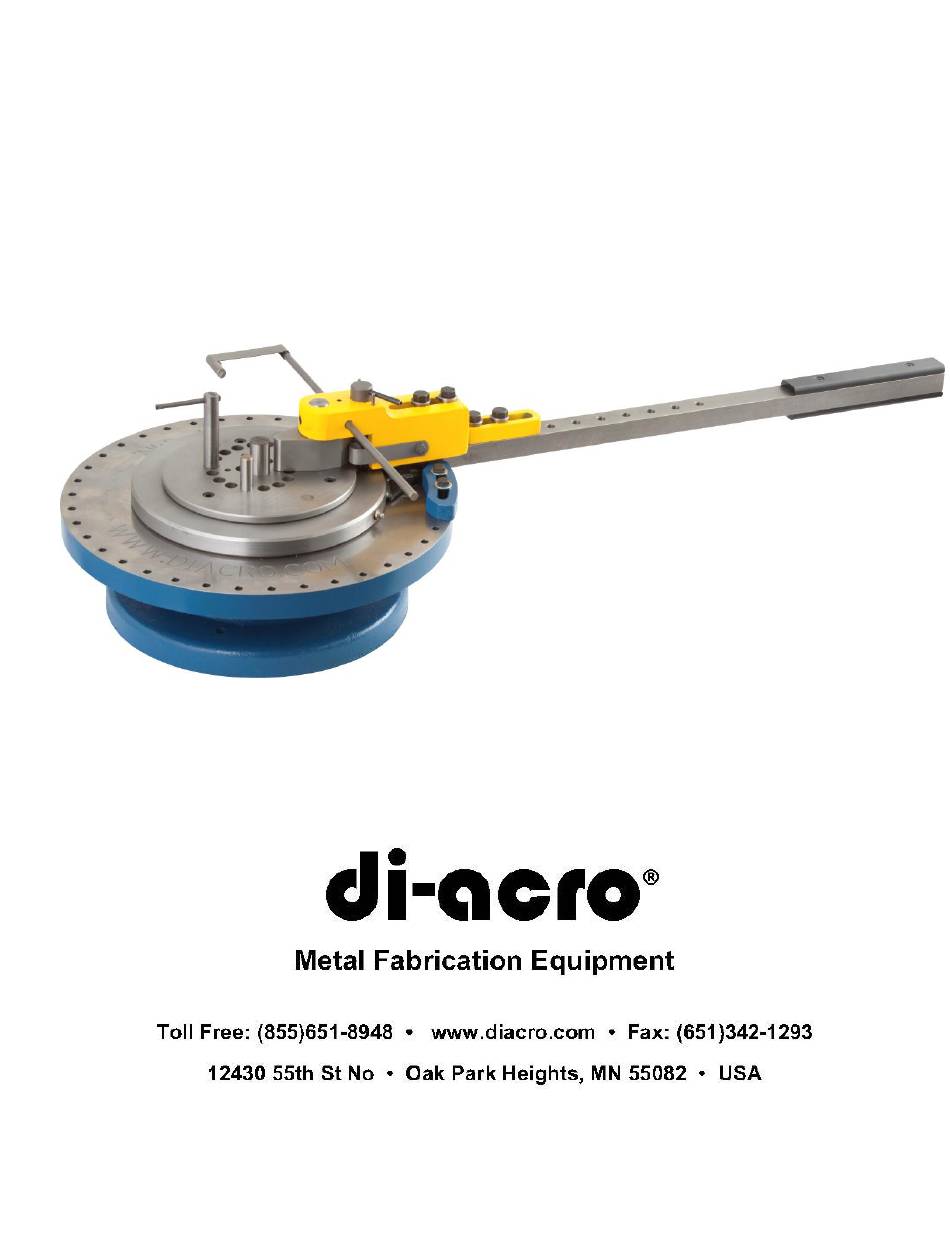

DI-ACRO
#3 HAND BENDER
INSTRUCTION MANUAL
REV. E 09/12
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Di-Acro 3

  • Page 1 DI-ACRO #3 HAND BENDER INSTRUCTION MANUAL REV. E 09/12...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY INFORMATION PG. 3 MAINTENANCE PG. 3 #3 HAND BENDER BREAKDOWN AND PARTS LIST PG. 4-5 QUIK-LOK MOUNTING INSTRUCTIONS PG. 6 QUIK-LOK BREAKDOWN AND PARTS LIST PG. 7-8 SPECIFICATIONS & THE ART OF BENDING PG. 9 OPTIONAL STAND PG.
  • Page 3: Safety Information

    SAFETY INFORMATION Before bender is set up for operation, mount on work bench or stand* with stand or work bench bolted in place. *IF BENDER IS MOUNTED ON ITS OWN STAND, SECURE STAND TO FLOOR MAINTENANCE Add grease in grease zerk periodically. REV.
  • Page 4 #3 HAND BENDER PARTS BREAKDOWN 8130800-080 REV. E 09/12...
  • Page 5 GREASE FITTING 8130120-800 HANDLE 20C0104C0508 SCREW-FHSCS 1/4-20X5/8 8130110-501 MOUNTING PLATE 8310300-200 ROLLER BEARING 8130570-203 SHIM 8130120-301 MOUNTING PLATE PIN 20A0308C1102 SCREW-SHCS 3/8-16X1-1/2 8200121-701 NOSE HOLDER 8000120-301 NOSE PIN 23A0308C0102 SCREW-SSS 3/8-16X1/2 8158121-702 TRIGGER 18A0104X3000 PIN-SPRING 1/4X3 8010461-000 STEEL BALL 8210510-204...
  • Page 6: Quik-Lok Mounting Instructions

     Remove nose and replace with Forming Roller.  Mount grooved Radius Collar as shown below.  Locate two 3/8” diameter bolts in Quik-Lok base and tighten. Make  Set Quik-Lok to match up with flat side of Radius Collar.
  • Page 7 QUIK-LOK PARTS BREAKDOWN 8136111-373 REV. E 09/12...
  • Page 8 Parts List 8136111-373 ITEM PART NUMBER DESCRIPTION 8136111-300 BASE 8600111-300 SLIDE 19A0104X1000 PIN-DOWEL 1/ 4X1 22C0104C0304 SCREW-FHMS 1 /4-20X3/4 21A0308C2104 SCREW-HHCS 3/8-16X2-1/4 21A0308C2304 SCREW-HHCS 3/8-16X2-3/4 0308WILLIAMS WASHER-WILLIAMS 3/8 WASHER 30X0308C NUT-FULL 3/8-16 8500111-301 KNURL HEAD SCREW 8126111-302 HANGER 8400111-300 HANDLE BLOCK...
  • Page 9: Specifications & The Art Of Bending

    SPECIFICATIONS & THE ART OF BENDING FOR A COMPLETE DESRIPTION OF 20 BENDING OPERATIONS WITH CLEAR STEP-BY-STEP ILLUSTRATIONS OF EACH, REFER TO THE DI-ACRO “ART OF BENDING” THAT WAS INCLUDED ALONG WITH THIS CATALOG. IT SHOWS REV. E 09/12...
  • Page 10: Optional Stand

    OPTIONAL STAND Stand Dimensions: 20” WIDE, 15” DEEP, 33-1/4” HIGH Part Number: 8230110-900 CALL DI-ACRO FOR PRICE AND AVAILABILITY Fasteners needed to attach Hand Bender to stand are the following: Fasteners to attach stand to floor are not included PART NUMBER...
  • Page 11 NUT-FULL 1/2-13 Warranty & Limitation of Liability Defective parts, of a product manufactured by DI-ACRO, will be replaced or repaired at no charge for twelve (12) months following delivery to the original purchaser. Labor is included for the first 90 days. This warranty becomes void when products have not been used according to instructions furnished by DI-ACRO, nor does it cover any altered parts or unauthorized repairs.
  • Page 12 c Copyright 2012 REV. E 09/12 12...
