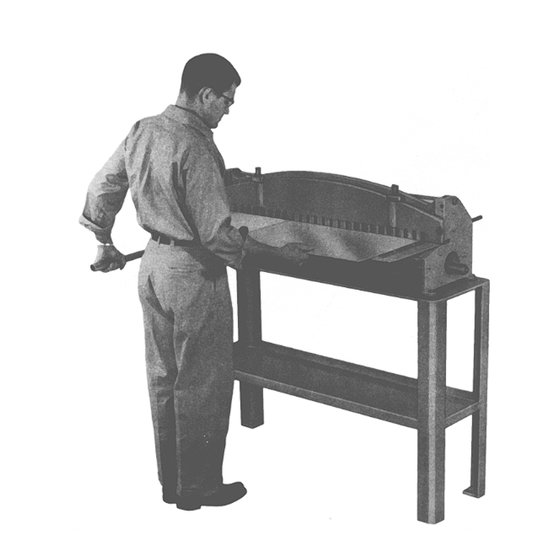

Di-Acro 36 Operators Manual & Instructions

Hand shear
Hide thumbs Also See for 36:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

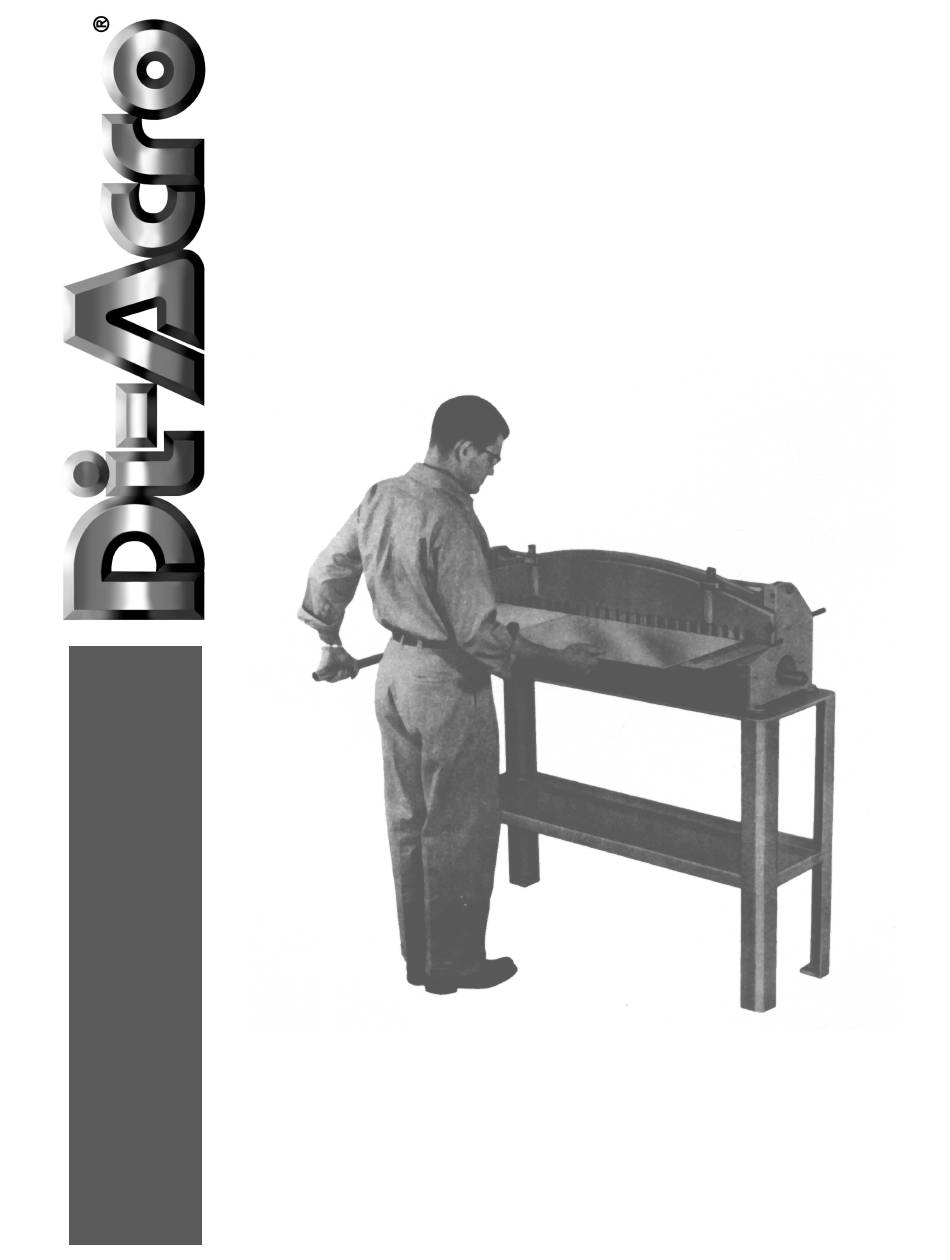

OPERATOR'S MANUAL & INSTRUCTIONS
MODEL 36
MODEL 36
Di-Acro
Di-Acro
Hand Shear
Hand Shear
Di-Acro, Incorporated
PO Box 9700
Canton, Ohio 44711
3713 Progress Street N.E.
Canton, Ohio 44705
330-455-1942
330-455-0220 (fax)
Revised 01/02
Sale or distribution of manuals is strictly prohibited
without the express written consent of Di-Acro, Incorporated

Advertisement

loading
Need help?

Need help?

Do you have a question about the 36 and is the answer not in the manual?

Questions and answers

Related Manuals for Di-Acro 36

Summary of Contents for Di-Acro 36

  • Page 1 Hand Shear Hand Shear Di-Acro, Incorporated PO Box 9700 Canton, Ohio 44711 3713 Progress Street N.E. Canton, Ohio 44705 330-455-1942 330-455-0220 (fax) Revised 01/02 Sale or distribution of manuals is strictly prohibited without the express written consent of Di-Acro, Incorporated...

  • Page 2: Installation And Setup

    INSTALLATION Installation and Setup 1. Bolt the shear to a flat surface such as a workbench or stand. If the surface is not level, it may be necessary to place shims under one of the mounting flanges on the shear base. Be certain that the mounting bench or stand is securely bolted to the floor to prevent tipping.
  • Page 3 ADJUSTING GAUGES With the gauge synchronized, the micrometer stops can be moved to any measurement, set approximately parallel and adjusted to exact parallel by turning the micrometer dials (G) to identical settings. Adjusting Gauges 1. The side squaring gauge furnished is calibrated in 1/16" increments, reading from zero at the cutting edge of the lower blade.
  • Page 4 ADJUSTING BLADE CLEARANCE Adjusting Blade Clearance Blade clearance may be varied but for longer P P P P P blade life, a few thousandths clearance should be maintained. Blades should not be in actual con- tact with each other. Best results may generally be obtained with .002"...

  • Page 5: Parts List

    236-1108035 Socket Head Cap Screw 20A0516C1102 Holddown Bar 236-1213031 Holddown Stud 236-4701033 Hex Head Cap Screw 21A0308C1000 Holddown Bar Washer 236-4901032 DI-ACRO MODEL 36 HAND SHEAR PARTS LIST – When ordering, specify part number and part name for positive identification.
  • Page 6 PARTS LIST Item Description Part No. Hex Head Cap Screw 21A0308C1304 Full Nut 30X0308C Blade Staightener 236-1213011 Quik Set Dial Nut 210-1431042 Quik Set Dial Shoe 210-1431043 Spring 210-5102048 Quik Set Bracket L 220-1431038 Quik Set Arm Short 236-1431041 Quik Set Tie Bar 236-1431050 Button Head Cap Screw 20BX10C0102...
  • Page 7 PARTS LIST Item Description Part No. Pitman Pin 236-1203023 Socket Head Set Screw 23A0104C0308 Handle 236-1208001 Jam Nut 31X0102C Handle Holder 236-1208002 Hex Head Cap Screw 21A0516C0508 Hex Head Cap Screw 21A0308C0304 Washer 4901112 Handle Spacer 236-1108004 Hex Head Cap Screw 21a0308c0102 Stationary Gib 236-1108026...
  • Page 8 PARTS LIST Item Description Part No. Fillister Head Machine Screw 22B0104C0508 Protractor Gauge (not shown) 230-1435026 Fillister Head Screw 22B0104C0508 Table 236-1105001 Side Frame L 236-1103002 Hex Head Cap Screw 21A0102C1102 Full Nut 30X0102C Hex Head Cap Screw 21A0308C1000 Hex Head Cap Screw 21A0308C1104 Hex Head Cap Screw 21A0516C4000...
