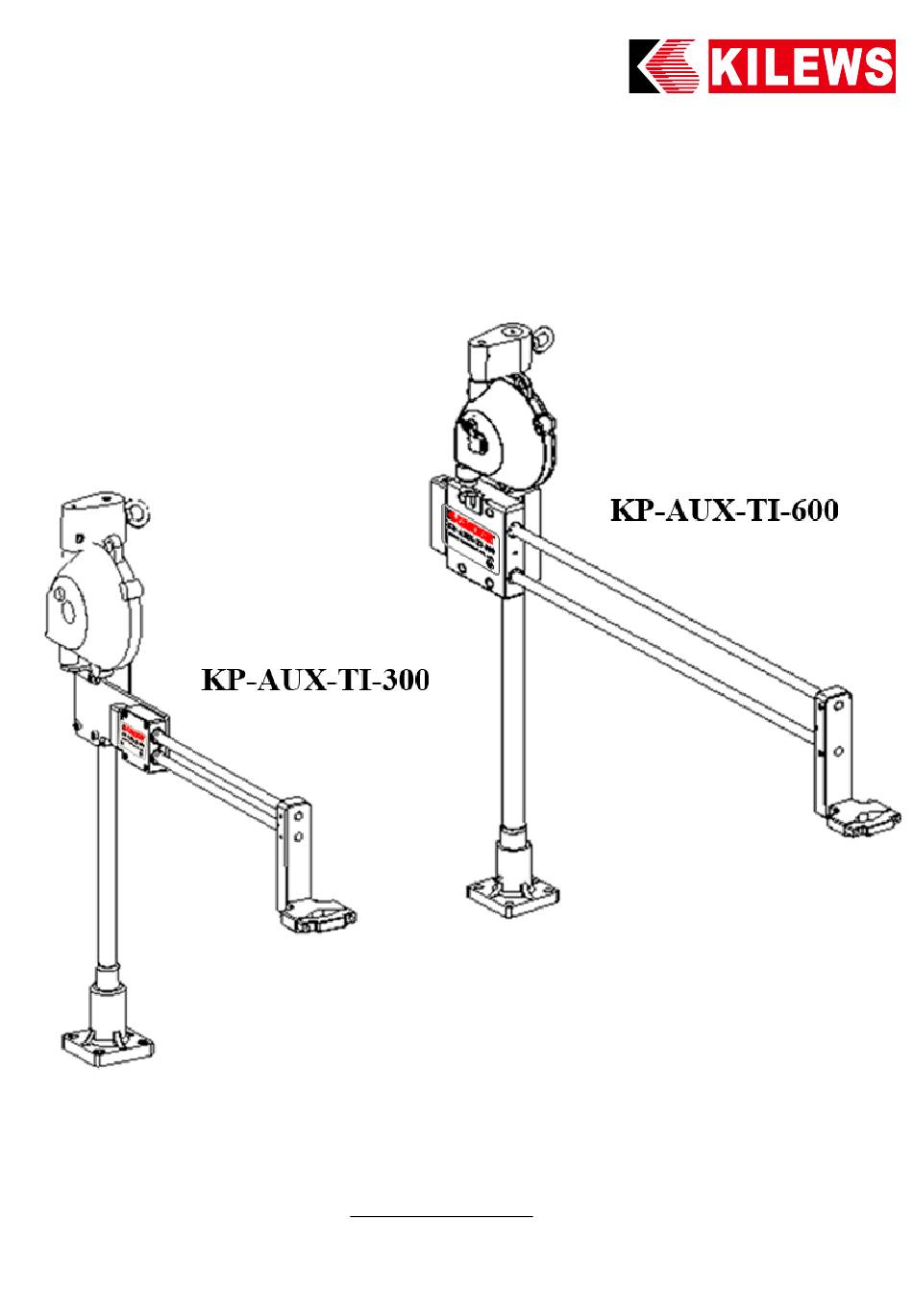

- Page 1 Auxiliary Arm Manual Extended reach KILEWS INDUSTRIAL CO., LTD. http://www.kilews.com Y2F220-002...
-
Page 3: Table Of Contents
Table of contents Introduction ･･･････････････････････････････････ Feature ･･･････････････････････････････････････ Item lists ･･････････････････････････････････････ III. Precautions･････････････････････････････････････ ･･････････････････････････････ 1. Sign definitions ････････････････････････････ 2. Safety notifications Description ････････････････････････････････････ ･･･････････････････････････････････ Assembly 2. Dimension ･････････････････････････････････ 3. Conditions of use ･･･････････････････････････ Installation ････････････････････････････････････ ･･････････････････････････････････ 1. Fitting tool ･････････････････････････････ 2. Spring adjustment VII. -
Page 4: Introduction
I. Introduction In order to prevent injuries, an auxiliary torque arm has been added to reduce torsion and weight of the screwdriver. Each auxiliary arm corresponds to ergonomics for additional safety measures. II. Feature A 360° rotation plus horizontal extension ability allows the screwdriver to reach different devices at ease. -
Page 5: Item Lists
III. Item lists Item no. Objects Qty. Diagram Spring balancer set I. KL-T5000B KL-T5000(AUX-TI300) Spring balancer set II. KL-T7000B KL-T7000(AUX-TI600) Main pole set I. KP20032I KP-AUX-TI300 Main pole set II. KP20032I-1 KP-AUX-TI600 Linear bearing set I. KP20033I KP-AUX-TI300 Linear bearing set II. KP20033I-1 KP-AUX-TI600 Screwdriver Fixture I. -
Page 6: Precautions
IV. Precautions For use of this product properly, avoid jeopardizing personal and property safety of the lives of others, to prevent the occurrence of danger and be sure to read the instructions carefully <Please be sure to follow instruction> 1. Sign definitions 【PROHIBITION】Attempting to perform without notice may cause body injury or damage to the auxiliary arm. -
Page 7: Description
V. Description 1. Assembly - Arm Unpack and take out all the components (a.) Using 4 M4*25L hex screws to tight machine base (5) on your working station. (b.) Place a pole (2) way down to the bottom of base and tight screws slightly. (Note: Be proper tightening screws for better rotation controlling.) (c.) Slid sliding bars of the linear bearing part (3) way down to the screwdriver’s fixture (4) and then tight screws on each side of the fixture. -
Page 8: Dimension
2. Dimension Model: KP-AUX-TI-300 Model: KP-AUX-TI-600 3. Condition of use Screwdriver’s Operating Weight Place Operating Max. Torque Model Operating Humidity weight area of use Temperature Kgf-cm Approx. TI-300 0.8~2.8kg －5℃~ 60℃ 20％~ 90％ Indoor (NO freezing) (NO condensation) Approx. TI-600... -
Page 9: Installation
VI. Tool installation guide 1. Fitting tool (1) Before clamp a tool, make sure auxiliary arm is seated at the lowest position, and spring has released it tension. (2) Follow the instructions to clamp a screwdriver and tight with M6*50 screws. The available dimension of fixture for screwdriver is from ψ25mm to ψ46mm. -
Page 10: Spring Adjustment
Spring adjustment VII. Maintenance For better condition and extending life cycle of this machine, please clean and maintain regularly. 1. Daly Lubricate the machine with the industrial oil like WD-40 daily as a frequent user. 2. Weekly Add proper greases into the linear bearing part weekly. [Figure 2] You may shorten maintenance time period, if the machine has been used under a bad weather condition or a higher frequent use.
