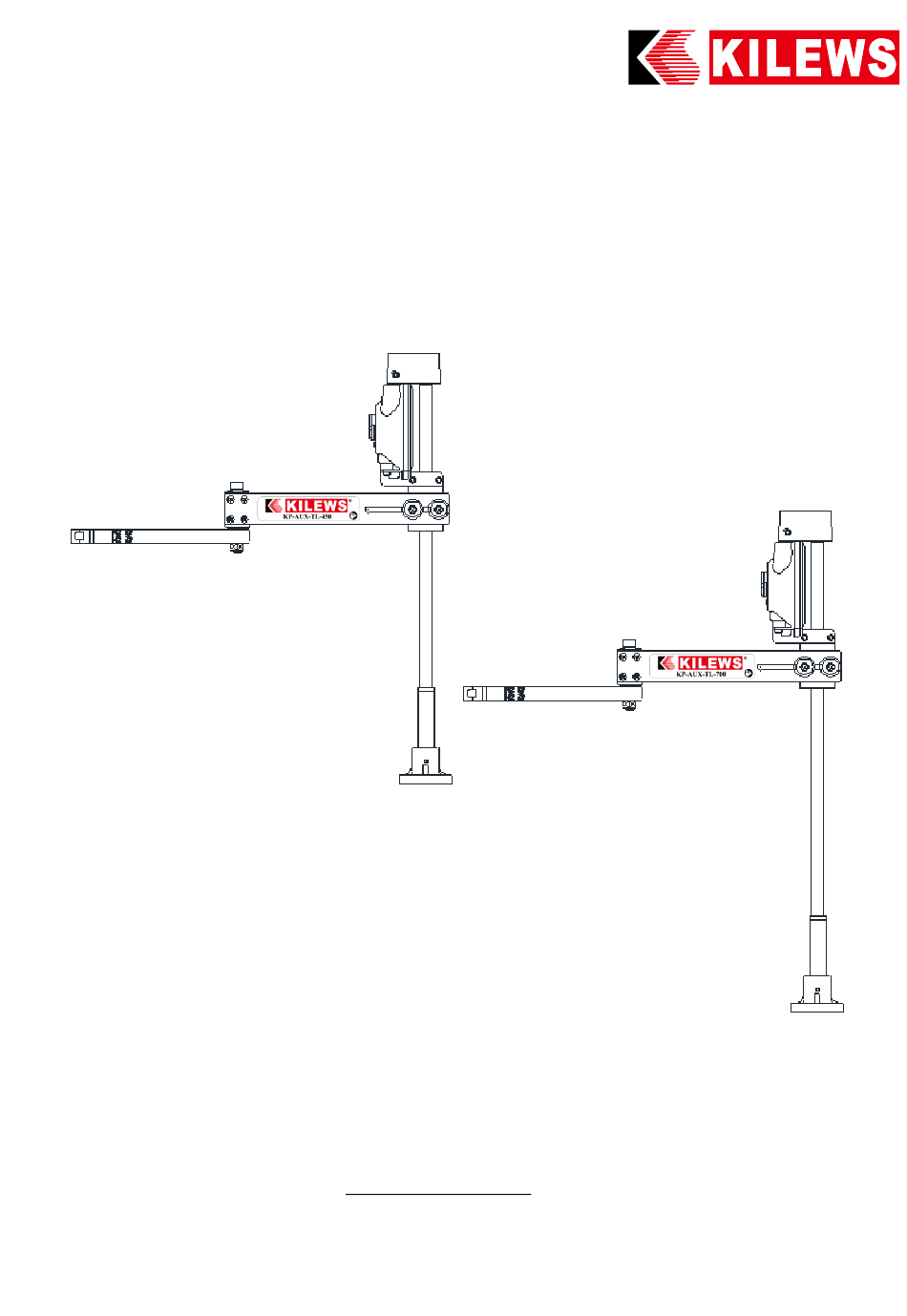

- Page 1 Auxiliary Arm Manual Axial rotation KP-AUX-TL-450 KP-AUX-TL-700 KILEWS INDUSTRIAL CO., LTD. http://www.kilews.com Y2F220B-002...
-
Page 3: Table Of Contents
Table of contents Introduction ･･･････････････････････････････････ Feature ･･･････････････････････････････････････ Items ･････････････････････････････････････････ III. Precautions･････････････････････････････････････ ･･････････････････････････････ 1. Sign definitions ････････････････････････････ 2. Safety notifications Description ････････････････････････････････････ ･･･････････････････････････････････ Assembly 2. Dimension ･････････････････････････････････ 3. Conditions of use ･･･････････････････････････ Installation ････････････････････････････････････ ･･････････････････････････････････ 1. Fitting tool ･････････････････････････････ 2. Spring adjustment VII. -
Page 4: Introduction
I. Introduction In order to prevent injuries, an auxiliary torque arm has been added to reduce torsion and weight of the screwdriver. Each auxiliary arm corresponds to ergonomics for additional safety measures. II. Feature A total 360° rotation of main pole plus 325° swing ability on axial arm allows the screwdriver to reach different devices at ease. -
Page 5: Items
III. Items Item no. Objects Qty. Diagram Spring balancer set I. KL-T5000B KL-T5000(AUX-TL450) Spring balancer set II. KL-T7000B KL-T7000(AUX-TL700) Main pole set I. (Linear bearing KP20032L set included) KP-AUX-TL450 Main pole set II. (Linear bearing KP20032L-1 set included) KP-AUX-TL700 Axial arm set I. (Fixture included) KP20033L KP-AUX-TL450 Axial arm set II. -
Page 6: Precautions
IV. Precautions For use of this product properly, avoid jeopardizing personal and property safety of the lives of others, to prevent the occurrence of danger and be sure to read the instructions carefully <Please be sure to follow instruction> 1. Sign definitions 【PROHIBITION】Attempting to perform without notice may cause body injury or damage to the auxiliary arm. -
Page 7: Description
Description 1. Assembly - Arm Unpack box and take all components out and then assembly by following steps carefully. (a.) Using 4 M6*25L hex screws to tight machine base (5) on your workstation. (b.) Place a main pole set (2) way down to the bottom of base and tight screws slightly. (Note: Be proper tightening screws for better rotation controlling.) Turn linear bearing set to aim a thread hole at above then add a M6*20L screw to tight up. -
Page 8: Dimension
2. Dimension 3. Condition of use Operating Weight Place Operating Screwdriver’s Max. Torque Model Operating Humidity area of use Temperature weight (kg) Kgf-cm Approx. TI-450 ~ kg －5℃~ 60℃ 20％~ 90％ Indoor (NO freezing) (NO condensation) Approx. TI-700 ~ kg... -
Page 9: Installation
VI. Tool installation guide 1. Fitting tool (1) Before clamp a tool, make sure auxiliary arm is seated at the lowest position, and spring has released it tension. (2) Follow the instructions to clamp a screwdriver and tight with M6*50 screws. The available dimension of fixture for screwdriver is from ψ25mm to ψ46mm. -
Page 10: Spring Adjustment
Spring adjustment VII. Maintenance For better condition and extending life cycle of this machine, please clean and maintain regularly. 1. Daly Lubricate the machine with the industrial oil like WD-40 daily as a frequent user. 2. Weekly Add proper greases into the linear bearing part weekly. [Figure 2] You may shorten maintenance time period, if the machine has been used under a bad weather condition or a higher frequent use.
