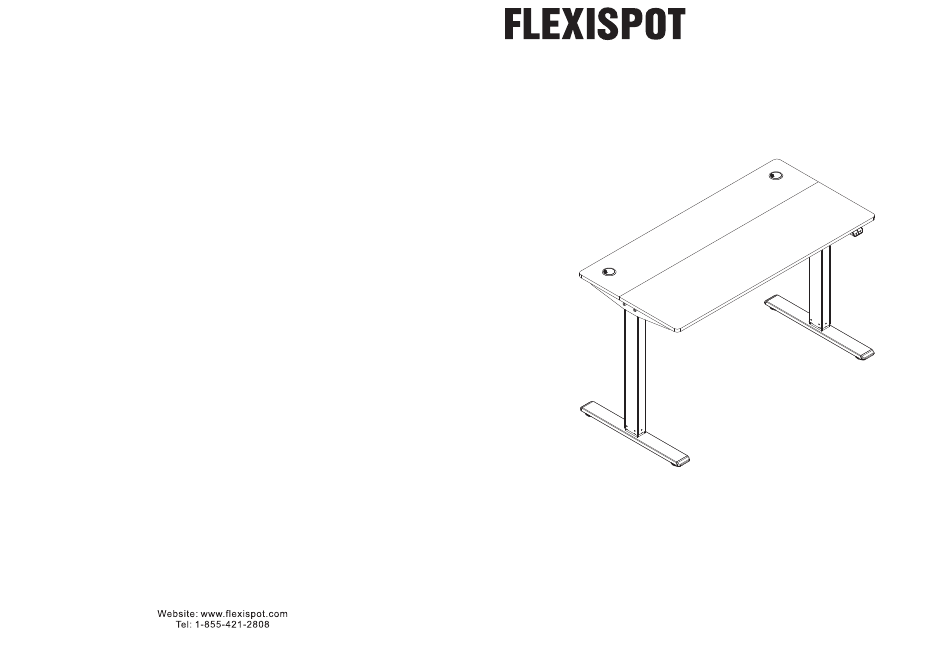

- Page 1 Item No. EG1B-4024-EU/EG1W-4024-EU/EG1M-4024-EU Installation Guide...
-
Page 2: Specifications
Specifications Step 1:Install desk feet Attach the desk foot (5) to the lifting columns (3 & 4) using 8 M6 bolts (G) and 5x5 hex key (F). Max. Weight Capacity 60 kg Max. Speed 25mm/s 1 00 - 240 V Input Voltage Min. - Page 3 Step 2:Install transmission rod Step 3:Install crossbeam To install the transmission rod, first slot it into lifting column (3) and loosen the hex bolt (Figure. 1). Attach the crossbeam (7) to the lifting columns (3 & 4) with the M8 bolts (C) and tighten them down Extend the transmission rod and slot it into the motor on lifting column (4), then tighten it down with with the 5x5 hex key (F).
- Page 4 Step 4:Install support plates Step 5: Connect desktops, Install adapter holder, desktop, and keypad Attach the support plates (6) to the lifting columns (3 & 4) using M6 bolts (B). Tighten with 5x5 Connect the small desk top (1) with large desk top (2) using wooden pins (H). hex key (F).
- Page 5 Step 6: Install baffles and adapter Step 7: Install and sort out power cord Attach the baffle (9) to the crossbeam using M4 bolts(A) and tighten with 2.5x2.5 hex key (F). Connect the power cord (12) to the adapter (10) as shown on the picture. Insert the adapter (10) into the holder (11).
-
Page 6: Keypad Instruction
3. If the lifting columns are uneven and/or not the same height, please refer to the "standing desk leg assistance. problem" video at https://www.flexispot.com/deskresources#3 for troubleshooting.
