Technical data
2
Input Voltage
100-240V
Column Stage
Max. Weight
100KG
Max Speed
32mm
Capacity
Height Range
690-1170mm
Temperature
0-40°C
Certification
C E F CC CUL
Width Range
1100-1800mm
Duty Cycle
10%, Max. 2 min on/ Min. 18 min off
Component list
Qty No.
Qty
No.
Part
Part
1
2
2
2
Feet
Lifting Column
No.
Part
Qty No.
Part
Qty
3
1
4
2
Side Bracket
Supporting Beam
Qty No.
Qty
No.
Part
Part
5
2
6
1
Control Box
Cable Management Tray
Qty No.
Qty
No.
Part
Part
Hand Switch
7
1
8
1
Power Plug
Item No.: ET103
Installation guide
Accessory list
Attention: The drawings below are only for reference which might be slightly
different from the actual object, please in kind prevail. Any tools missing or
installation problems,please contact the customer service firstly.
No.
A
M6×16mm
B
ST4.2x20mm
C
M8×35mm
/
s
D
Adhesive Pad
Allen Key
E
4x4mm
6
8
4
3
5
2
1

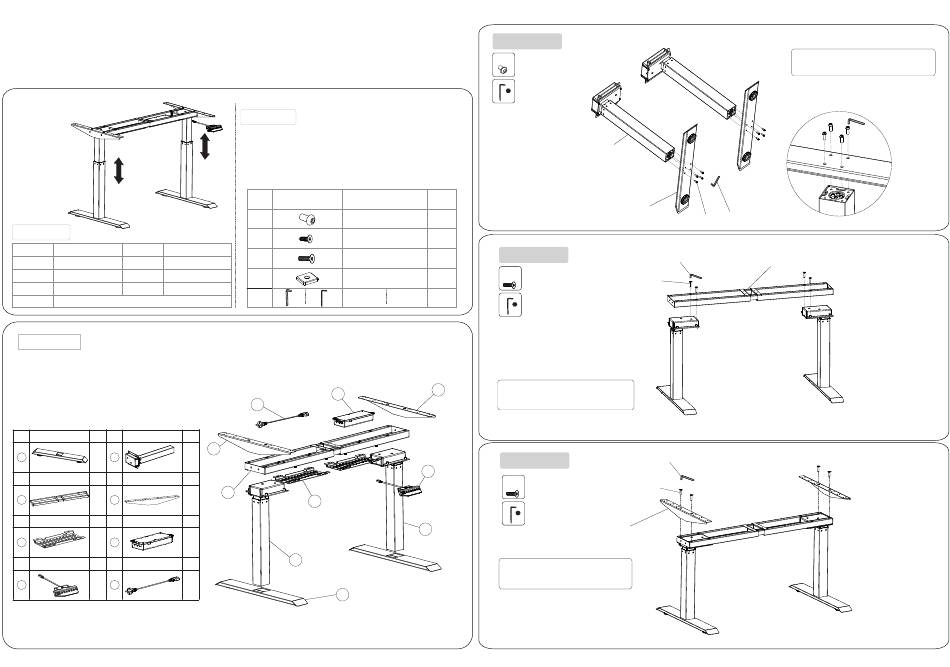

STEP 1
A
x8
E
4x4
Qty
Spec
8
26
STEP 2
8
C
6
x4
Allen Key
1
E
5x5mm
5x5
Insert the lifting columns into the ends of the
4
supporting beam(3). Fix the lifting columns
using screws(C) with the Allen Key(E).
STEP 3
7
C
x4
E
5x5
2
Attach the side brackets(4) to the ends of
the supporting beam using screws(C) as
show with the Allen Key(E).
2
1
E
A
E
3
C
E
C
4
Place the feet(1) on the bottom of the lifting
column(2). Fix the feet using screws(A) with
Allen Key(E)
E
A
