Switched RCA Amplified Output

1. Install audio jack at J2 (on Objective2 input).
2. Mount RCA jacks onto required rear plate using paper washers.
3.
Cut inner traces beneath O2 input jack, J2. See page 3 for picture.

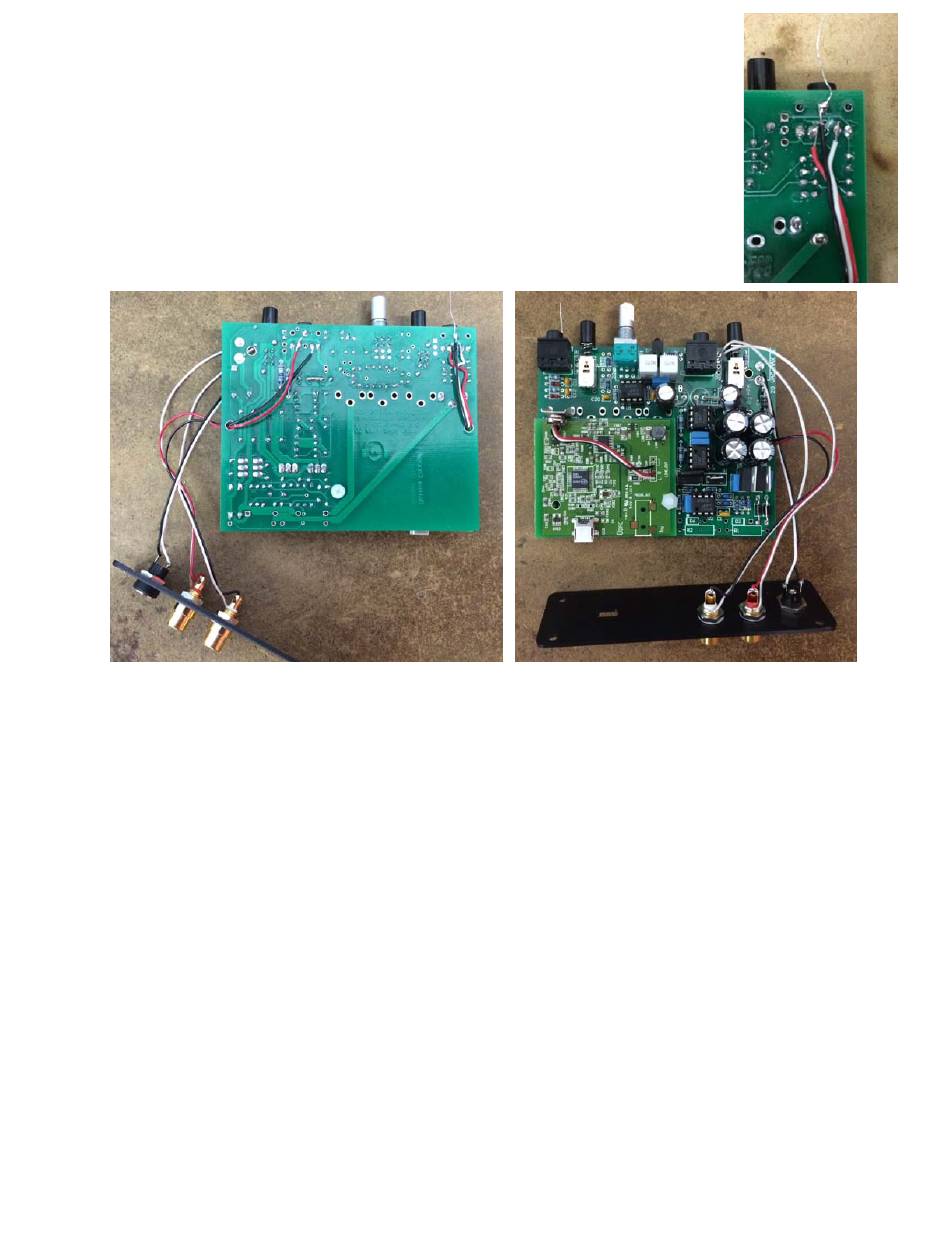

4. Solder Red/Black/White wire from bottom surface of J2. Pass wire
through holes of O2 and ODAC to solder to ODAC's L/R/GND holes:
5. Wire RCA jacks directly to Headphone Jack
a. For 3.5mm Headphone Jack
Soldering Instructions - Custom O2+ODAC| Document Revision 4 Pg. 5 of 7
