Standard Headphone Jack

Install audio jack at J3.

1/4in (6.35mm) Headphone Jack

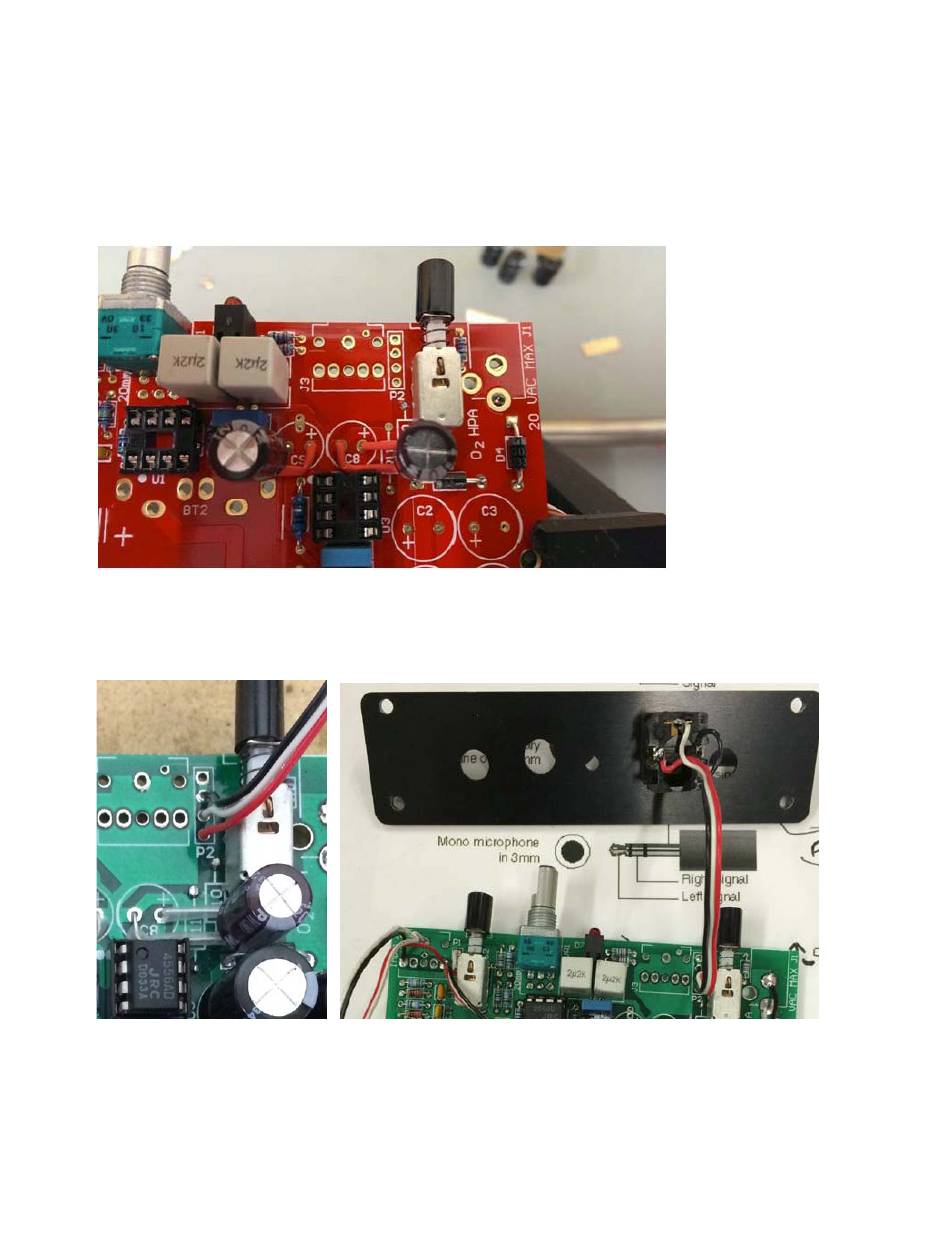

1. Begin by installing resistors R10 and R11 on the bottom surface of the PCB.
2. Bend leads of capacitors C8 and C9 and cover with heat shrink as shown in Figure 1.
3. Install C8 and C9, then complete remaining assembly of O2+ODAC.
Remember to omit J3.
4. Connect about 3" of wire from Neutrik 1/4in headphone jack to P2. Wire as shown
below (L = White, Red = Right, Black = Ground):
Attach headphone jack to front plate after completing all other assembly. Black nut is
secured by a compression fit. With jack & nut installed on front plate, use table surface
to apply pressure to nut. After nut snaps in place, gently rotate 1/4 turn clockwise.
Soldering Instructions - Custom O2+ODAC| Document Revision 4
Pg. 2 of 7
