Dedicated RCA DAC line-output
1. Install audio jack at J2.
2. Solder J1 and J2 on bottom of ODAC
3. Mount RCA jacks onto required rear plate using paper washers.

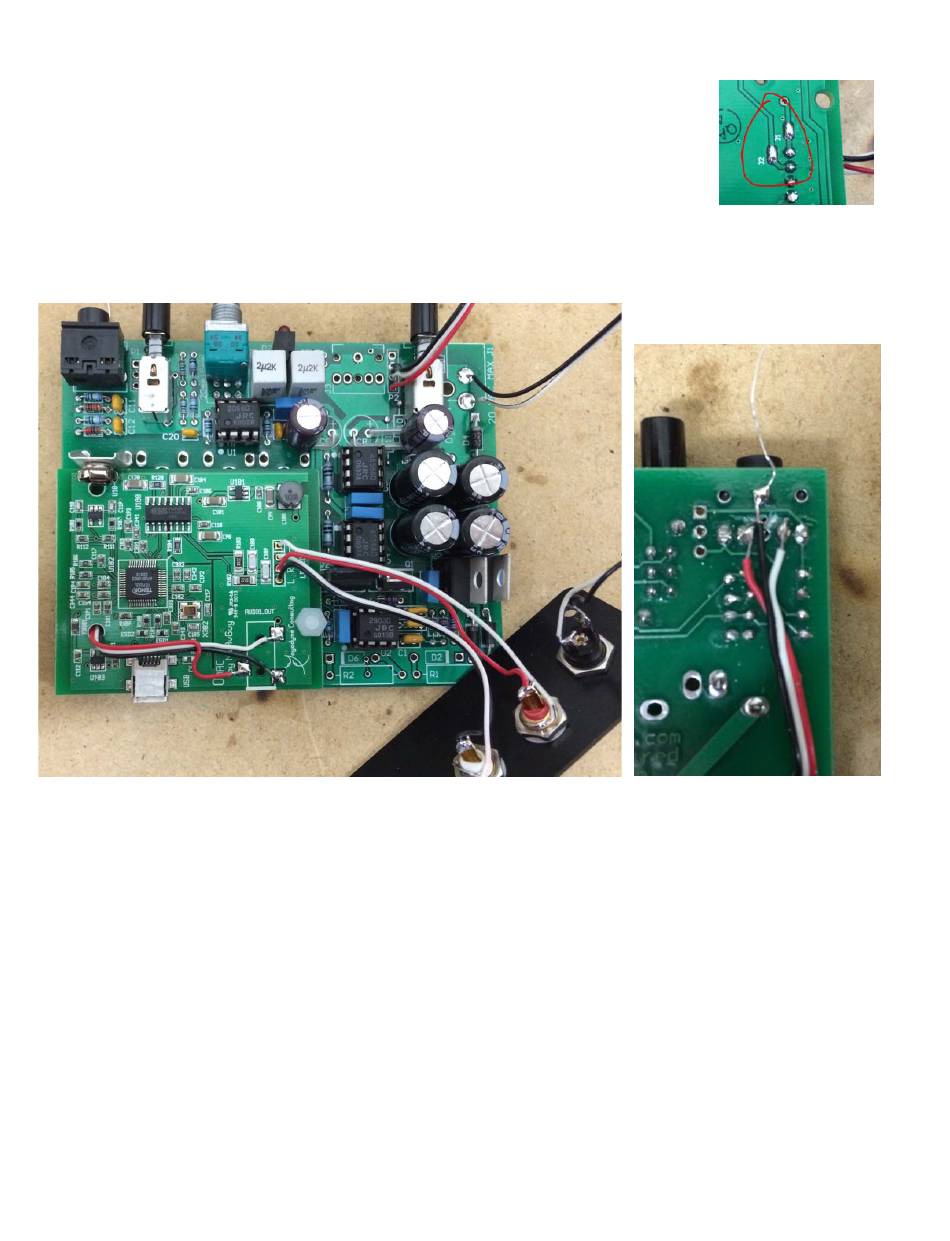

4. Solder about 4" of wire from RCA jacks to ODAC as shown below.
5.
Cut inner traces beneath O2 input jack, J2. See page 3 for picture.
6. Solder Red/Black/White wire from bottom surface of J2. Pass wire through holes of O2
and ODAC to solder to AUDIO_OUT as shown:
Soldering Instructions - Custom O2+ODAC| Document Revision 4
Pg. 4 of 7
