Standard - Shared With 3.5Mm Input; Dedicated 3.5Mm Dac Line-Output - JDS Labs Custom O2+ODAC Assembly And Soldering Instructions

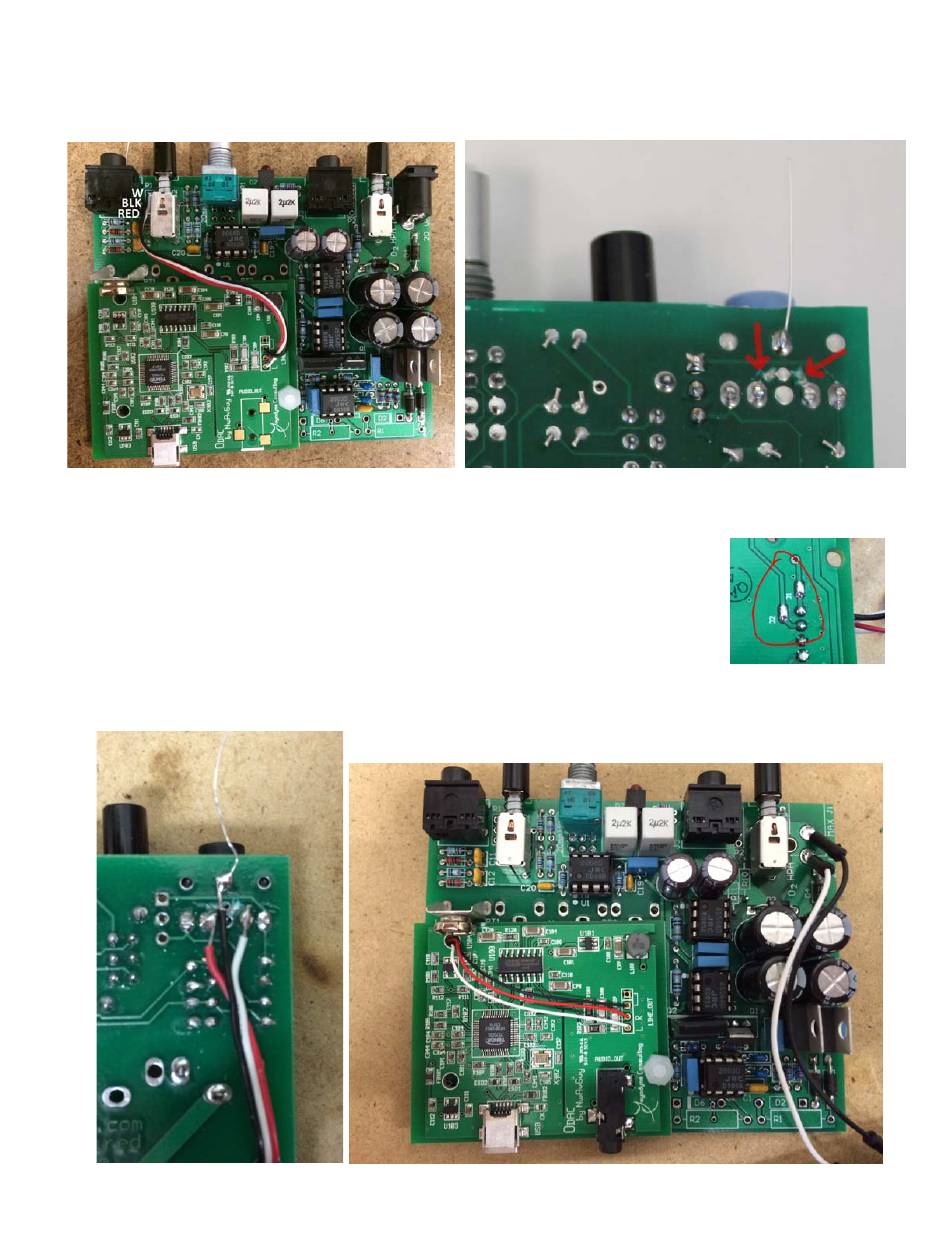

Standard - Shared with 3.5mm input

1.
Install audio jack at J2.
2.
Wire ODAC's LINE pins to P1 as shown.
3.
Using an exacto knife, cut the inner traces beneath J2 (see image at right).

Dedicated 3.5mm DAC line-output

1. Install audio jack at J2.
2. Solder J1 and J2 on bottom of ODAC.
3. Solder 3.5mm jack to ODAC (like Standalone ODAC).
4.
Cut inner traces beneath O2 input jack, J2. See page 2.
5.
Solder Red/Black/White wire from bottom surface of J2.
Pass wire through holes of O2 and ODAC to solder to LINE OUT. These pins are normally
used for RCA jacks.
Soldering Instructions - Custom O2+ODAC| Document Revision 4 Pg. 3 of 7
