- Page 1 CSLM30B BATTERY-POWERED LAVALIER MICROPHONE USER GUIDE...
- Page 2 CSLM30B BATTERY-POWERED LAVALIER MICROPHONE...

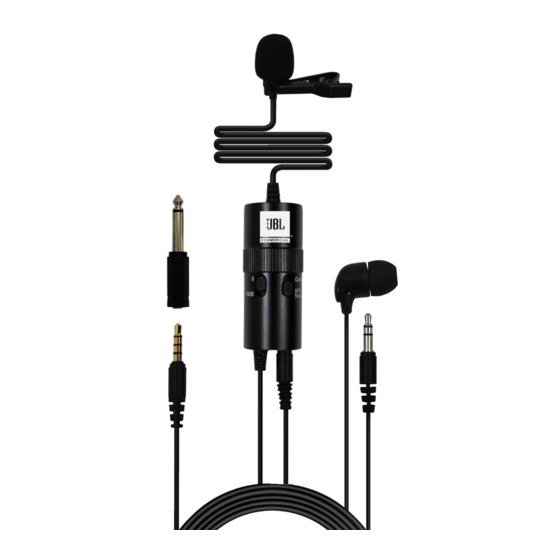

- Page 3 BOX INCLUDES CSLM30B battery-powered lavalier microphone Detachable earphone for monitoring iii. Tie-clip x 2 Windshield x 2 LR44 battery ¼” adapter vii. Carry pouch CONNECTING THE MICROPHONE TO SMARTPHONES/LAPTOPS Plug the 3.5mm TRRS connector into the headphone jack of the smartphone/laptop. Slide switch battery module...
- Page 4 CONNECTING THE MICROPHONE TO DSLR CAMERAS/CAMCORDERS/AUDIO RECORDERS Plug the 3.5mm TRRS connector into the microphone input on the camera/recorder. Insert the LR44 battery into the battery module, with polarity as indicated. Slide the switch on the battery module to camera mode. CONNECTING THE MICROPHONE TO MIXER AMPLIFIERS Use the given ¼”...
- Page 5 USING THE MICROPHONE The benefit of a microphone attached to the user's clothes is that the microphone will maintain a constant working distance independent of the user's movements and thus ensure a constant output level. Also, a clip-on microphone allows the user to move about freely and keep their hands free.
- Page 6 FEATURES Omnidirectional lavalier microphone with 3.5mm TRRS jack Perfect for recording, podcast, interviews, vlogging, etc. iii. Headphone output for monitoring with smartphones/laptops -10dB gain reduction Compatible with smartphones & most DSLR cameras Can be used with mixer-amplifiers MICROPHONE SPECIFICATION Polar pattern Omnidirectional Audio frequency bandwidth 60Hz to 18KHz...
- Page 8 All product images shown are for illustration purpose only and may not be an exact representation of the product. Actual product may vary in colour, size and finishing. © 2021 HARMAN International Industries, Inc. All rights reserved.
