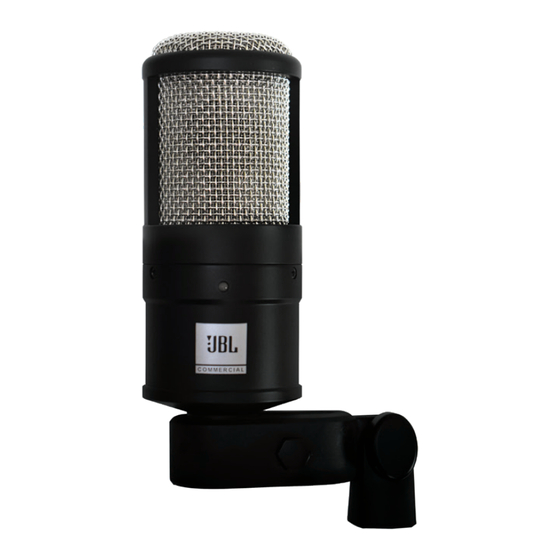

STUDIO CONDENSER MICROPHONE
USER GUIDE
Thank you for choosing JBL Commercial CSSM100 Studio Condenser Microphone.
CSSM100 is a general-purpose condenser microphone for recording & on-stage
purposes. It can also be used to record instruments. Since every instrument
radiates sound in a specific way, to get the best sound it is crucial to experiment
with microphone placement.
Advertisement
Table of Contents
Related Manuals for Harman JBL CSSM100
Summary of Contents for Harman JBL CSSM100
- Page 1 CSSM100 STUDIO CONDENSER MICROPHONE USER GUIDE Thank you for choosing JBL Commercial CSSM100 Studio Condenser Microphone. CSSM100 is a general-purpose condenser microphone for recording & on-stage purposes. It can also be used to record instruments. Since every instrument radiates sound in a specific way, to get the best sound it is crucial to experiment with microphone placement.
-
Page 2: Box Includes
BOX INCLUDES CSSM100 studio condenser microphone Microphone stand adapter CONNECTING TO AUDIO EQUIPMENT The microphone uses a condenser capsule designed for 48-volt phantom powering & needs an external power supply. -
Page 3: Operation
The microphone provides a balanced output on a 3-pin male XLR connector. Pin 1: Ground Pin 2: Hot Pin 3: Cold Use an XLR cable to connect the microphone to balanced XLR input with phantom power. Switch the phantom power ON (refer to the user manual of the unit to which you connected the microphone) the white LED on the microphone indicates it is receiving the phantom power. -
Page 4: Frequency Response
FREQUENCY RESPONSE... -
Page 5: Polar Pattern
POLAR PATTERN... - Page 6 FEATURES All metal, rugged microphone with a sturdy front grill. ii. High sensitivity condenser capsule. iii. Hyper-cardioid pickup pattern. iv. High headroom with minimum distortion. v. Wide frequency response suitable for vocal & instrument recording.
-
Page 7: Specifications
SPECIFICATIONS Polar pattern Hyper-cardioid Transducer 14mm condenser capsule Frequency response 20Hz to 20KHz Sensitivity -36dBV ±3dB (0dB=1V/Pa at 1KHz) ≤24dBA Equivalent noise level 110dB (THD ≤1% at 1KHz) Peak SPL Electrical impedance 100Ω Temperature range -40° to +55°C Phantom powering +48V ±4V Current consumption Dimensions... - Page 8 All product images shown are for illustration purpose only and may not be an exact representation of the product. Actual product may vary in colour, size and finishing. ©2021 HARMAN International Industries, Inc. All rights reserved.
