- Page 1 CSLM30 LAVALIER MICROPHONE WITH EARPHONE USER GUIDE...
- Page 2 CSLM30 LAVALIER MICROPHONE WITH EARPHONE...

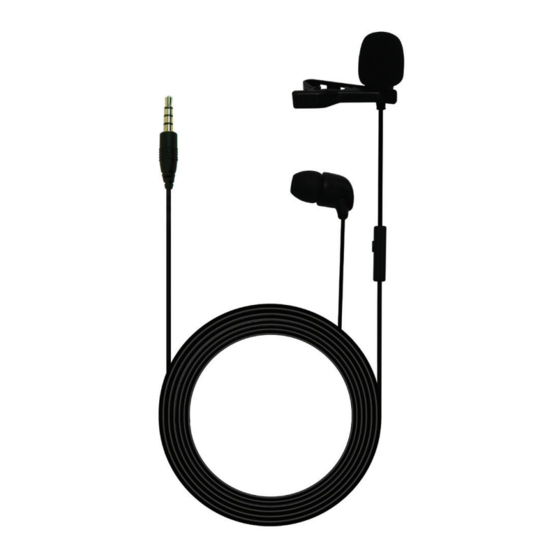

- Page 3 BOX INCLUDES CSLM30 lavalier microphone with earphone Carry pouch iii. Tie-clip Windshield CONNECTING THE MICROPHONE TO SMARTPHONES/LAPTOPS Plug the 3.5mm TRRS connector into the headphone jack smartphone/laptop. Audio-out will be played from the earphone & the lavalier microphone will be used as the default microphone for calls.
- Page 4 The benefit of a microphone attached to the user's clothes is that the microphone will maintain a constant working distance independently of the user's movements and thus ensure a constant output level. Also, a clip-on microphone allows the user to move about freely and keeps their hands free.
- Page 5 Attach the microphone to the user’s upper body, placing it as close as possible to his/her mouth. CLEANING To clean the microphone case, use a soft cloth moistened with water. FEATURES Omnidirectional lavalier microphone with earphone Long press on remote to activate Voice Assistant like Google Now iii.
- Page 6 MICROPHONE SPECIFICATION Polar pattern Omnidirectional Audio frequency 60Hz to 18KHz bandwidth Sensitivity -42dB±3dB (0dB=1V/Pa at 1KHz) Max. sound 110 dB pressure level Output impedance 2.2 K ohms Length 1.5 meters Weight 14.6 g Speaker impedance 16 ±20% Ohms...
- Page 8 All product images shown are for illustration purpose only and may not be an exact representation of the product. Actual product may vary in colour, size and finishing. ©2021 HARMAN International Industries, Inc. All rights reserved.
