ANTUMBRA 6MIX Building Instructions

Hide thumbs Also See for 6MIX:

Download this manual

ANTUMBRA

6MIX

BUILDING INSTRUCTIONS

PCB V1.1

Need help?

Do you have a question about the 6MIX and is the answer not in the manual?

Page 1 ANTUMBRA 6MIX BUILDING INSTRUCTIONS PCB V1.1...
Page 2 01. BUILD NOTES Before you start building look through the build manual so that you’ll be familiar with the building process and you won’t run into any surprises!

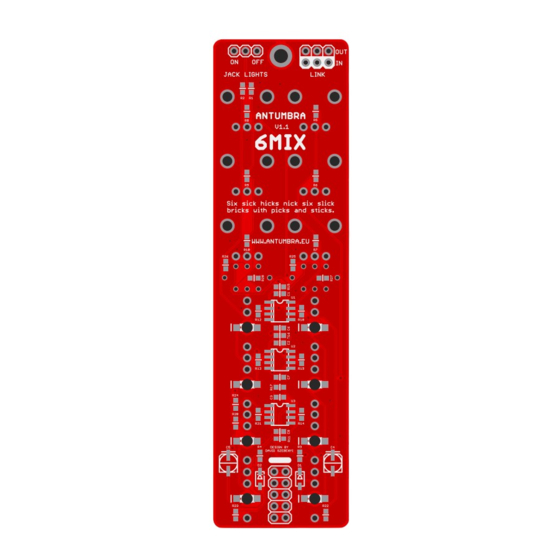

Page 3 02. BUILD 00. Orient the PCB as seen on the left 01. Solder the three TL072s (Check their orientation) 02. Solder the two 1n5819 diodes (Check their orientation) 03. Solder the 20x 100k resistors...
Page 4 02. BUILD 04. Solder the two 180R resistors 05. Solder the two 470R resistors 06. Solder the two 1k resistors 07. Solder the two 10R resistors...
Page 5 02. BUILD 08. Solder the 6x 100nF capacitors 09. Solder the two 10uF capacitors (Make sure to match up it’s orientation with the silk- screen drawing) 10. Solder the eight SMD LEDs (this is optional) (The marker on the LED should point to the line on the PCB) 11.
Page 6 02. BUILD 12. Solder 1x3 pin header (this is optional) 13. Solder 2x3 pin link header 14. Turn the PCB around DO NOT SOLDER YET! 15. Place the eight jacks...
Page 7 02. BUILD 16. Place the two buttons (Their orientation is important, there are two notch- es on one side, they should align up with the notches on the drawing. Alternatively, the dot on it should point towards the - sign on the PCB) 17.
