1.4 Basic Installation

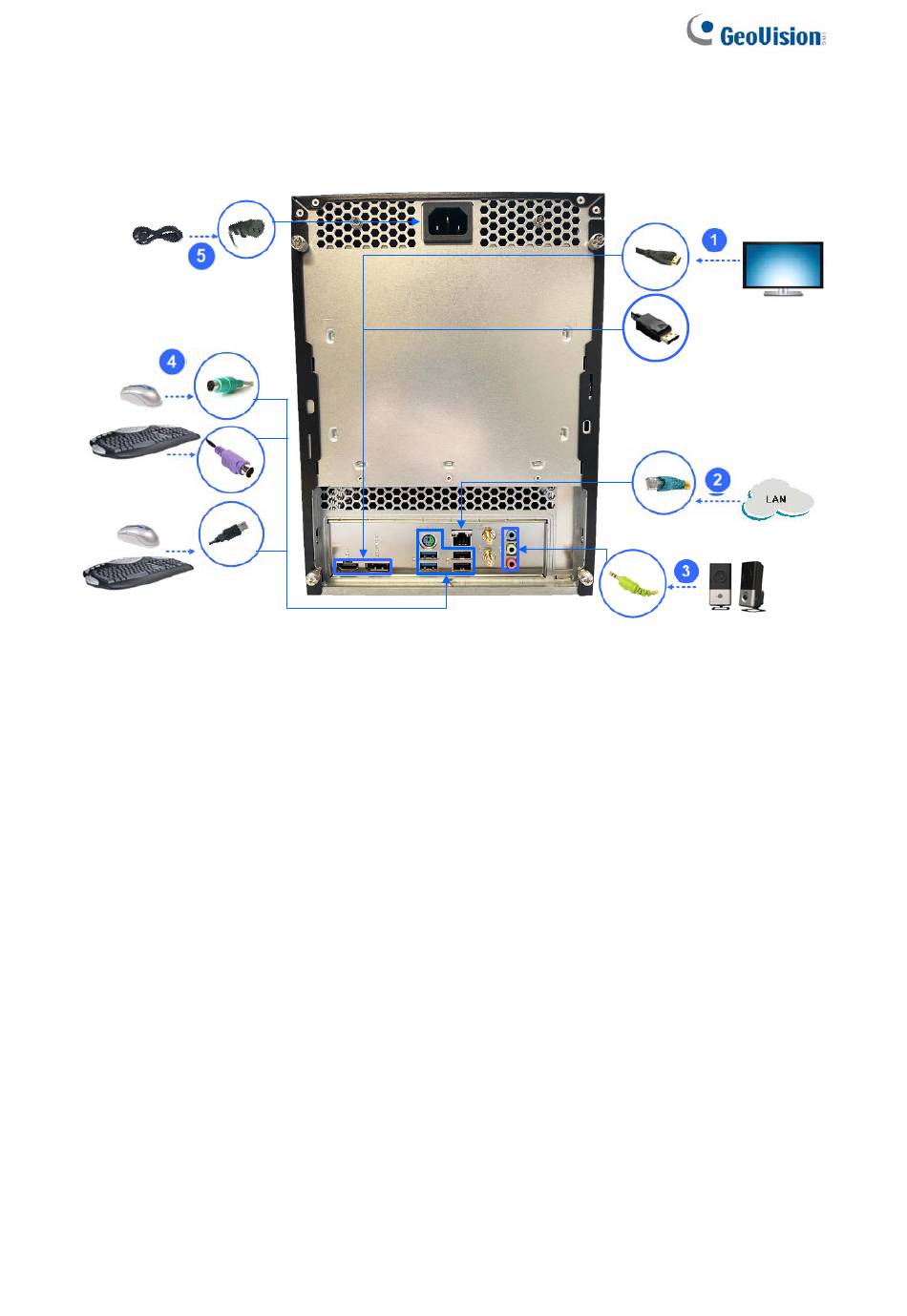

Here we use GV-Tower NVR System V2 (Rev. D) as the example.
1. Connect an HDTV to GV-Tower NVR/VMS System V2 (Rev. D) using the HDMI /
DisplayPort cable supplied by the HDTV manufacturer.
2. Using the RJ-45 cable, connect one end to the Ethernet port and the other end to
Network.
3. Connect speakers to the Audio Line Out port.
4. Connect the mouse and keyboard to the USB port (either USB 2.0 or USB 3.2 port) or the
PS/2 mouse / keyboard port.
5. Using the supplied power cord, connect one end to the AC input and the other end to the
power outlet.
Once the above hardware is properly connected, press the Power button on the front panel
to start the system. It takes about 1 minute for startup. The system should load automatically
and display cameras in the main screen.
