GeoVision GV-Tower System V2 Quick Start Manual page 29

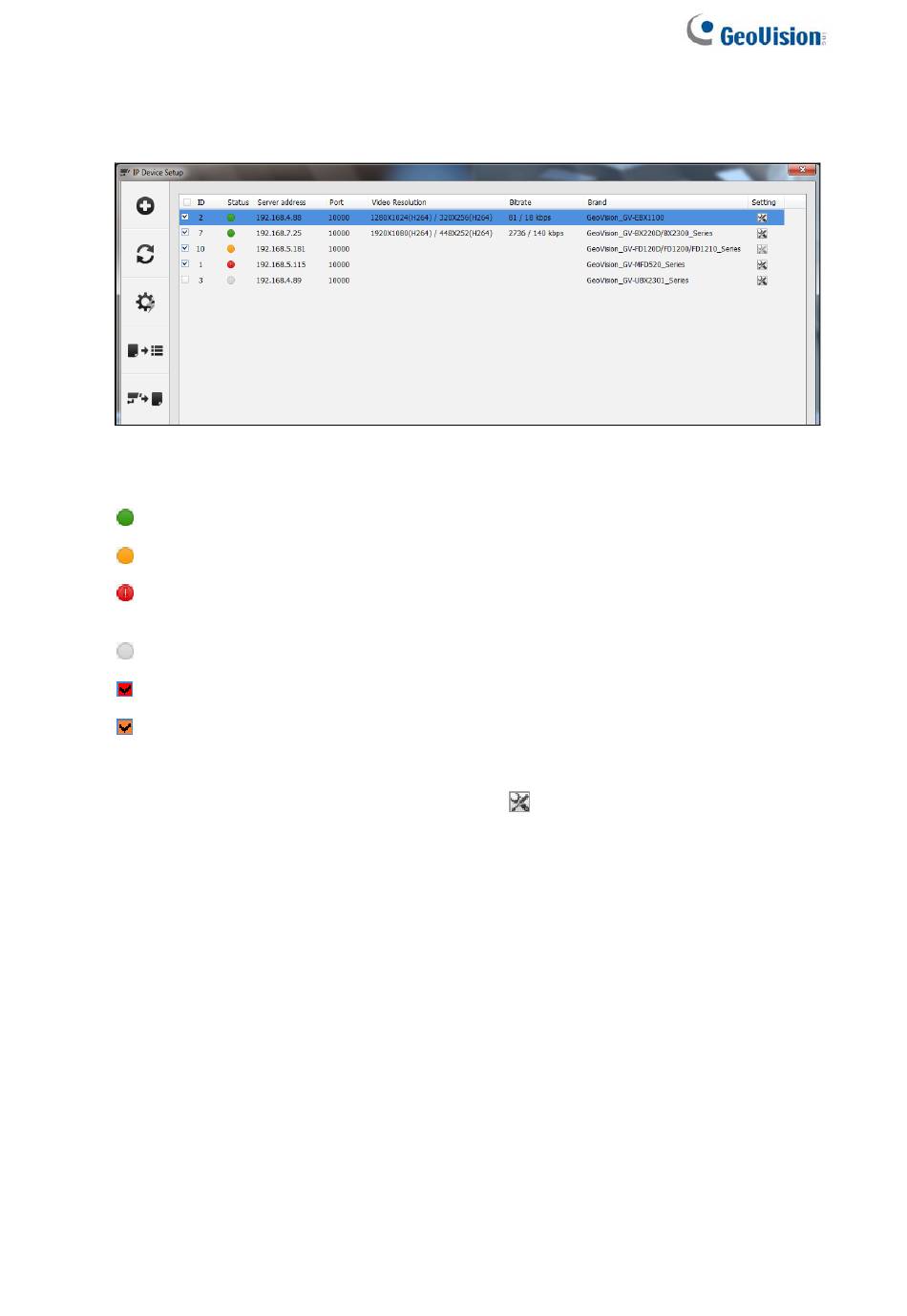

3. Make sure the cameras you want to add are selected and click Apply. The cameras
added are now listed in the IP Device List.
Status icons available:
Connected
Connecting
Connection Failed
Inactive Camera
Started Monitoring
Pre-Rec Enabled
4. To adjust camera settings, click the Setup button
Configuring Camera Settings in the Quick Start Guide for details.
5. Close the dialog box by clicking X on the top-right corner. When adding cameras for the
first time, the cameras will be automatically assigned to the live view grid.
For details, refer to IP Camera Setup, Chapter 2, GV-VMS User's Manual (C:\UserManual).
The camera is connected.
GV-VMS is trying to connect to the camera.
Unable to connect to the camera. Place the cursor on the
red icon to see the error message.
The camera is inactive. Click the checkbox to connect.
The camera is under monitoring.
Pre-recording is enabled.
27
of a camera. Refer to 5.2
