Shenzhen Seaory Technology Co., Ltd.
Desktop Retransfer Dual-sided Card Printer
Quick Use Guide
1. Introduction to Product Components

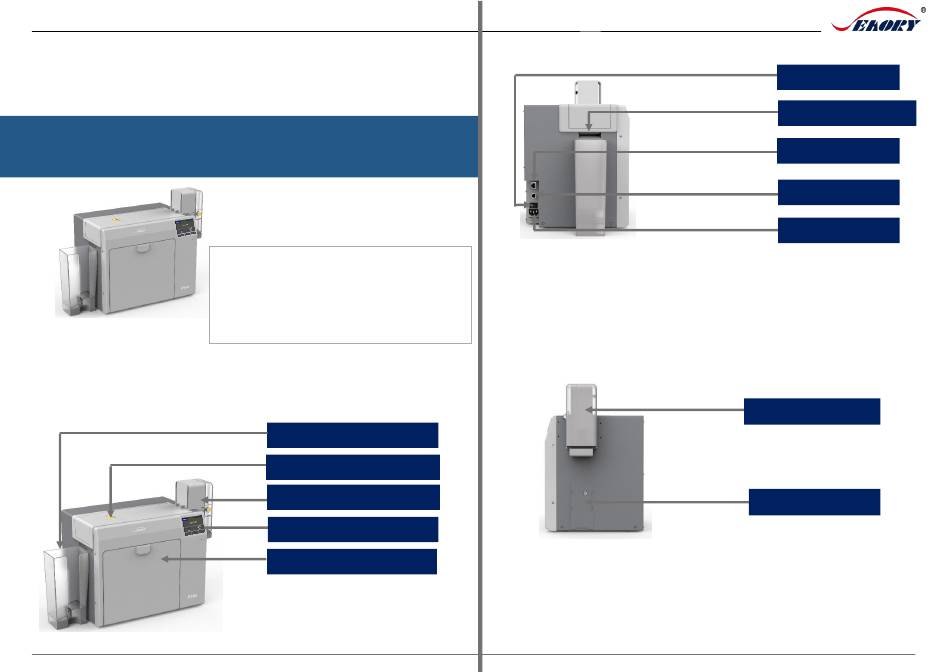

1.1 Front-end View
1

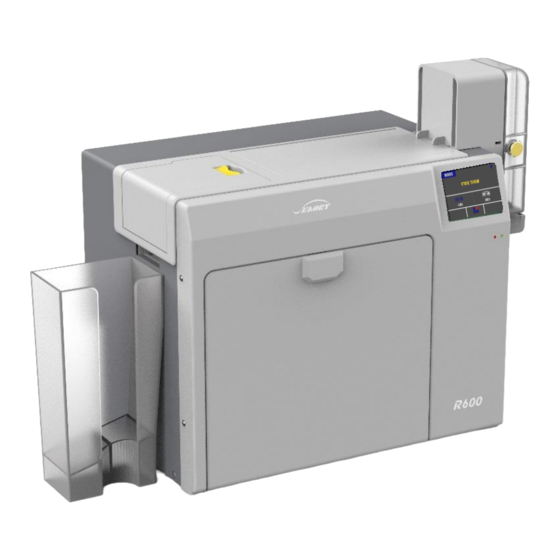

Model: Seaory R600
Read before use: This manual only briefly describes the
basic installation and use. If you need to know more
about the use, installation and functional characteristics
of this product or have other questions, please refer to
the product manual of the corresponding model.
Output hopper
Flattening modular door switch
Input hopper
LCM Display
Ribbon door
www.seaory.com
1.2 Back-end View
Ethernet interface: RJ45 interface, TCP/IP protocol, the network connection
between the PC and the printer can be realized through this interface
USB interface: USB-B type interface, directly connected to the PC.
Power interface: connect to AC power 100-240VAC, 50/60Hz, 4A.
Power switch: turn on and off the card printer circuit.
Back-end output card slot: The printed card is ejected from here, supslot
manual feeding card on back-end and recycling pending card.
1.3 Front-end View
Input hopper: Blank card storage area, capacity: 200pcs standard
card(0.76mm).
Defective card slot: Defective cards storage area, capacity: 25pcs standard
card(0.76mm).
2
Power switch
Back-end output card slot
Ethernet interface
USB interface
Power switch
Input hopper
Defective card slot
