Seaory R660 Quick Use Manual

Desktop retransfer dual-sided card printer
Hide thumbs Also See for R660:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
Shenzhen Seaory Technology Co., Ltd.
Desktop Retransfer Dual-sided Card printer
Quick use guide
1. Introduction to product components

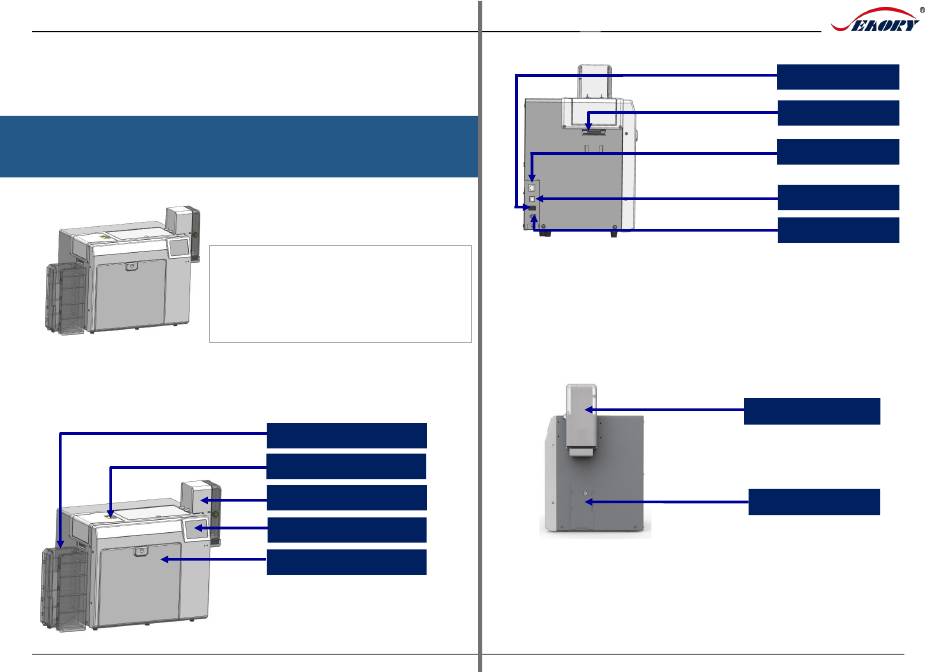

1.1 Front-end view
01
Model: Seaory R660/R330
Read before use: This manual only briefly describes the
basic installation and use. If you need to know more
about the use, installation and functional characteristics
of this product or have other questions, please refer to
the product manual of the corresponding model.
Output hopper
Flattening modular door
Input hopper
LCM Display
Ribbon door
www.seaory.com
1.2 Back-end view
Ethernet interface: RJ45 interface, TCP/IP protocol, the network connection
between the PC and the printer can be realized through this interface
USB interface: USB-B type interface, directly connected to the PC.
Power interface: connect to DC power 24V, 15A.
Power switch: turn on and off the card printer circuit.
Back-end exit card port: The printed card is ejected from here, supports
manual feeding card on back-end and recycling pending card.
2.3 Front-end view
Input hopper: the card placement area to be printed (can hold 200 0.76mm
standard cards).
Defective card slot: receiving faulty/bad cards (can hold 25 0.76mm standard
cards).
02
Power switch
Back-end exit card port
Ethernet interface
USB interface
Power switch
Input hopper
Defective card slot
