ASSEMBLY INSTRUCTIONS
SMTMSF68C - Tabletop Market Stall Frame
SMTMSC6BL - Tabletop Market Stall Canopy 6' Blue
SMTMSC8BL - Tabletop Market Stall Canopy 8' Blue
Parts List
A1 Base Pole - Back
B1 Base Pole - Back
C1 Base Pole - Back
A
Cross Pole
B
Cross Pole
C
Cross Pole
D
Cross Pole
E
Cross Pole
F
Leg Post - Back
G
Base Pole - Side
H
Leg Post - Front
I
Rafter Pole
J
M6x35 screw
K
M6x16 screw
L
Allen key
M
Fabric Canopy
N
Edge Clamp
Estimated assembly time: approximately 15-30 mins.
QTY.
1
1
1
2
2
3
1
1
2
2
2
2
22
16
1
1
5
M6X16
M6X35
V21.03
2 people are required
Scan QR code to visit
the product page:
1 of 3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Displays2go SMTMSF68C
Summary of Contents for Displays2go SMTMSF68C

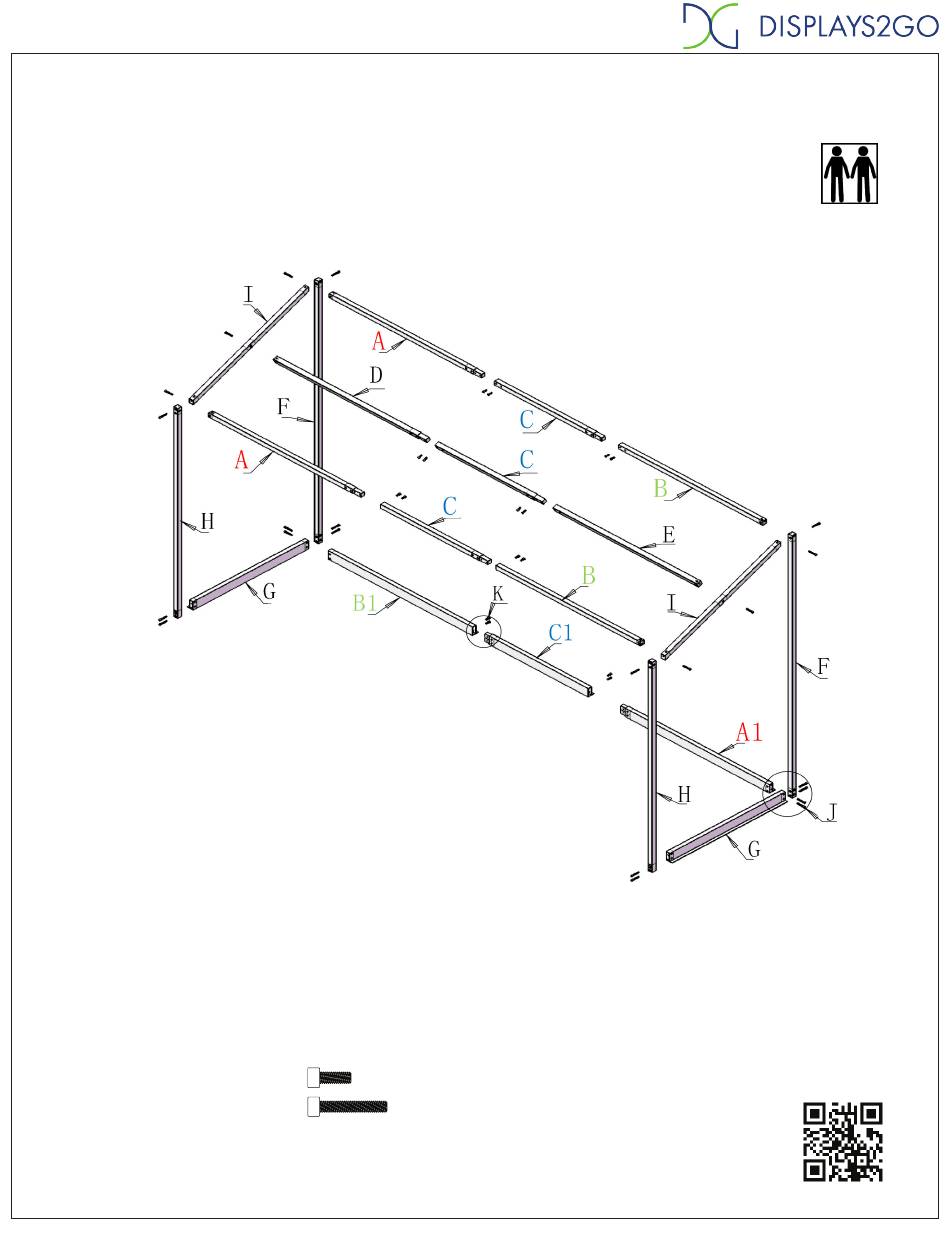

- Page 1 ASSEMBLY INSTRUCTIONS V21.03 SMTMSF68C - Tabletop Market Stall Frame SMTMSC6BL - Tabletop Market Stall Canopy 6' Blue SMTMSC8BL - Tabletop Market Stall Canopy 8' Blue 2 people are required Parts List QTY. A1 Base Pole - Back B1 Base Pole - Back...
- Page 2 ASSEMBLY INSTRUCTIONS Remove all parts from the carrying bag and lay them out on the floor. Organize your parts against the parts list. STEP 1. If use 8’ canopy, connect Base Poles (A1+C1+B1) by using M6X16 Screws (K) and Allen Key (L). See Detail O. Connect Cross Poles (A+C+B, D+C+E) using remaining M6X16 screws the same way.
- Page 3 Carefully move the assembled frame onto your tabletop. Securely fix the base poles to the table with the Edge Clamps (N), see Detail Q. The assembly is finished. Detail Q If you have any questions regarding our products, please visit us at www.displays2go.com or contact D2G customer service 844-221-3388. 3 of 3...
