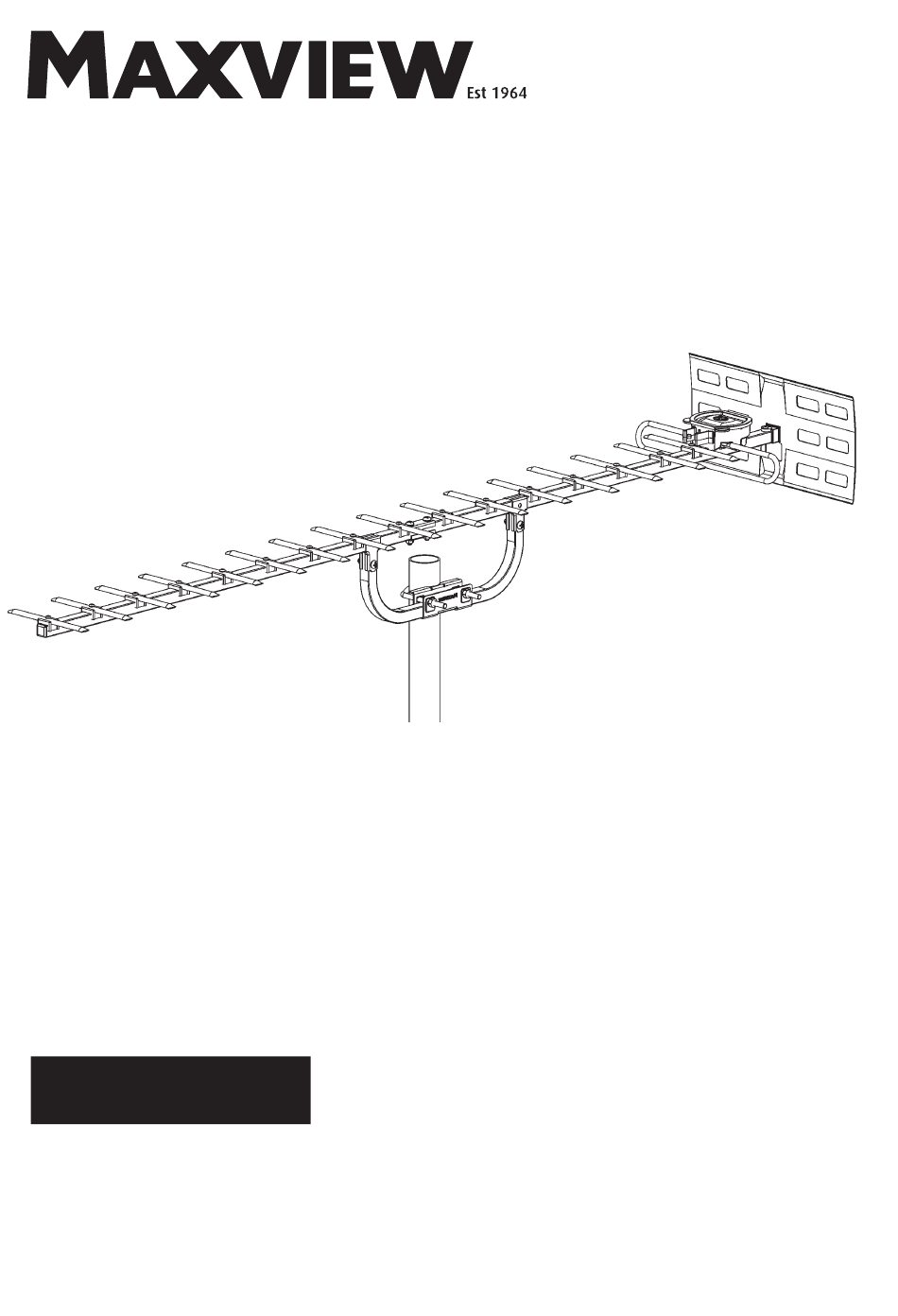

Assembly instructions
Model:
MXR0024/KIT
Contact:
Helpline:
+44 (0)1553 811000
Email:
support@maxview.co.uk
Web:
www.maxview.co.uk
Maxview reserve the right to change specifications without prior notice
9111308 Iss 2

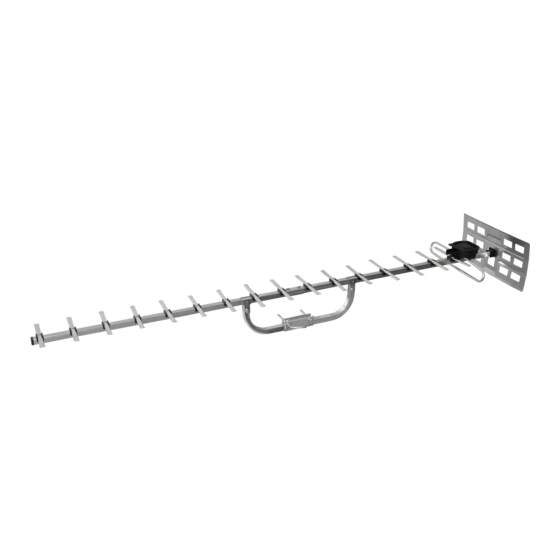

TV Aerial - 18 Element Kit
Advertisement
Table of Contents
Related Manuals for Maxview MXR0024
Summary of Contents for Maxview MXR0024
- Page 1 Assembly instructions Model: MXR0024/KIT TV Aerial - 18 Element Kit Contact: Helpline: +44 (0)1553 811000 Email: support@maxview.co.uk Web: www.maxview.co.uk Maxview reserve the right to change specifications without prior notice 9111308 Iss 2...
- Page 2 Pack contents check H. M5 x 25mm Screw x 4 O. Coaxial Plug x 1 V. Fixing Bracket A. Reflector Plate x 1 I. Screw x 1 P. M5 x 35mm Bolt x1 B. Support Arm x 1 J. Mast Clamp x 1 Q.
- Page 3 Assembly Join the 2 pieces of boom together using the Screw the Dipole firmly to the Boom. joining plate, M5 x 25mm screws M5 nuts and 5mm Shake Proof Washers. Fit the support arm to boom of the aerial using the four joining plates. Secure with nuts and bolts. Slide on and firmly push down the Reflector onto the groove of the Reflector Bung.
- Page 4 Connecting Coaxial Cable 12mm 18mm 28mm Using a sharp knife prepare the Coaxial Cable as Loosen the screws on the 2 terminals in the shown. Dipole. Feed the inner core to one of the terminals and the twisted braid into the other. Tighten screws and close Dipole Cap.
- Page 5 Fitting Coaxial Plug Outer insulator Screw cap Braid Inner core Plug Inner insulator Claw 1. Cut cable to required length. 2. Unscrew coaxial plug and slide screw cap over cable. 3. Strip away approximately 23mm of outer insulation. 4. Gather strands of shielding braid together and wind back around the outer insulation. Remove foil shield. 5.
- Page 6 Fixing Kit Installation Mount bracket to a secure solid external wall or Insert Mast into Fixing Bracket. Make sure the holes internal wooden beam using the screws and wall plugs in the Mast align with the holes in the bracket. Insert if required.
- Page 7 Attach aerial to mast using the Mast Clamp.
- Page 8 Polarisation Tip: Look at outdoor aerials in your area to see which direction to point your aerial for best reception. (Note different Horizontal mounting Vertical mounting model illustrated for recommended for recommended for example only) Main TV transmitters. Relay TV transmitters. Aligning your aerial Turn on your TV set.
