NMEA 2000® STARTER KIT Installation Guide
2

| Connecting to Your Control Head

1. Connect one of the drop cables to the NMEA 2000 port on your control head. Hand-tighten the
screw nut to secure the connection.
NOTE: HELIX G4N units require a QD adapter cable.
3

| Connecting to Power

The Power-T supports a 4 amp backbone with a single direction power feed.
1. Install an inline fuse holder and a 5 Amp fuse (not included) to the power cable. Attach the black
ground wire and bare shield-drain wire to negative (-) and the red wire to positive (+) 12 VDC
power.
NOTE: Humminbird is not responsible for over-voltage or over-current failures.
CAUTION! Humminbird does not recommend connecting to a battery without a fuse and a
switch.
© 2020 Johnson Outdoors Marine Electronics, Inc. All rights reserved.
2
532775-1_A

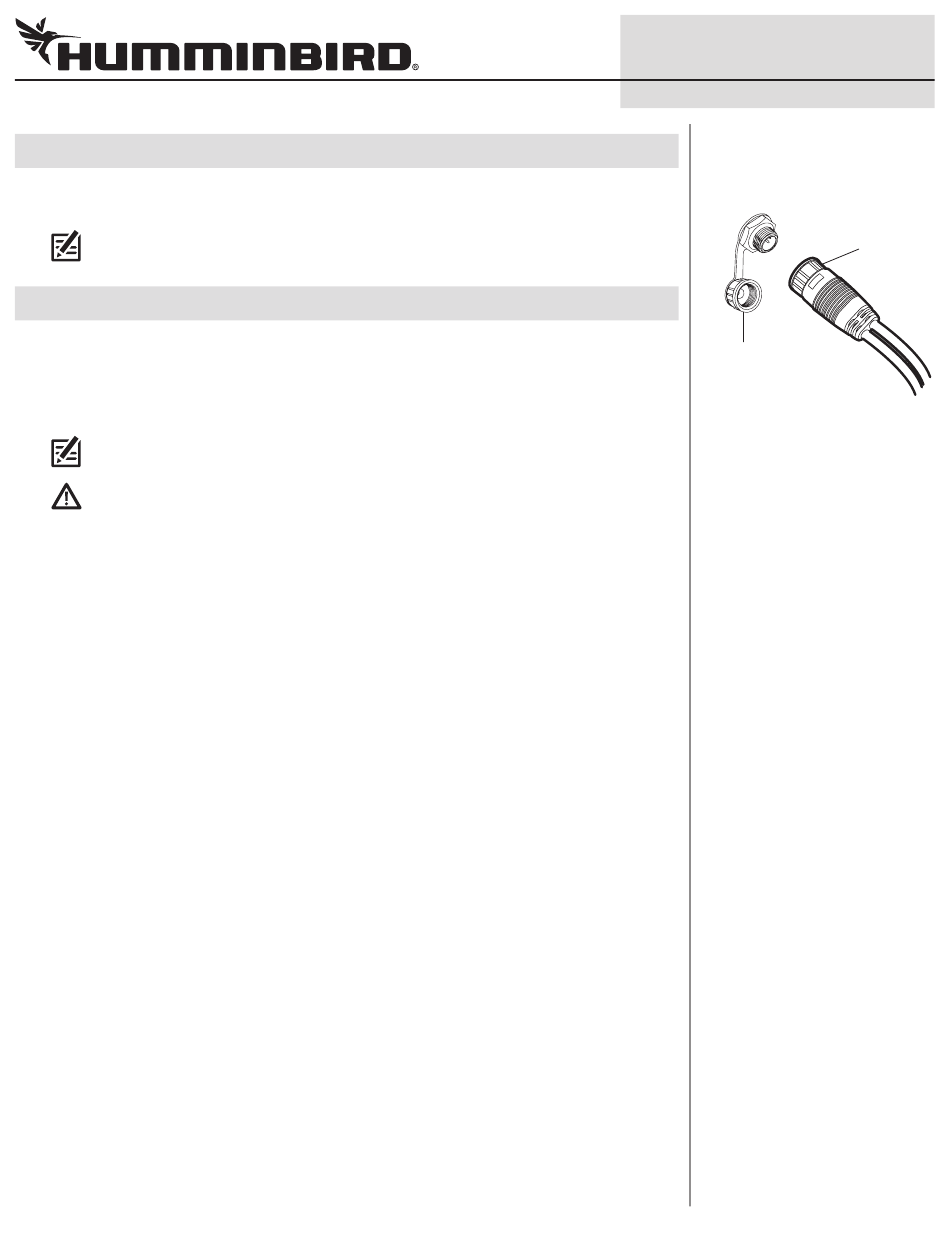

Connecting the Drop Cable
to the NMEA 2000 Port
(magnified view)
screw nut
port
cover
