Model Rockets CEE-YAH Assembly Instructions

Hide thumbs

Assembly

Instructions

Parts Included:

1 Nose Cone

1 Body Tube

3 Laser Cut Balsa Fins

1 Thrust Ring

1 Motor Spacer Tube (yellow)

1 Launch Lug

1 Kevlar Shock Cord (yellow)

1 Elastic Shock Cord (white)

1 Plastic Streamer (color varies)

2 Tape Discs

1 Decal Sheet

Materials Not Included:

Yellow Wood or White Glue

Sanding Sealer

Paint Brush

Sandpaper (#240 grit)

Gloss Spray Enamel

Primer Spray Enamel

Masking Tape

Motor Mount and

Shock Cord Assembly

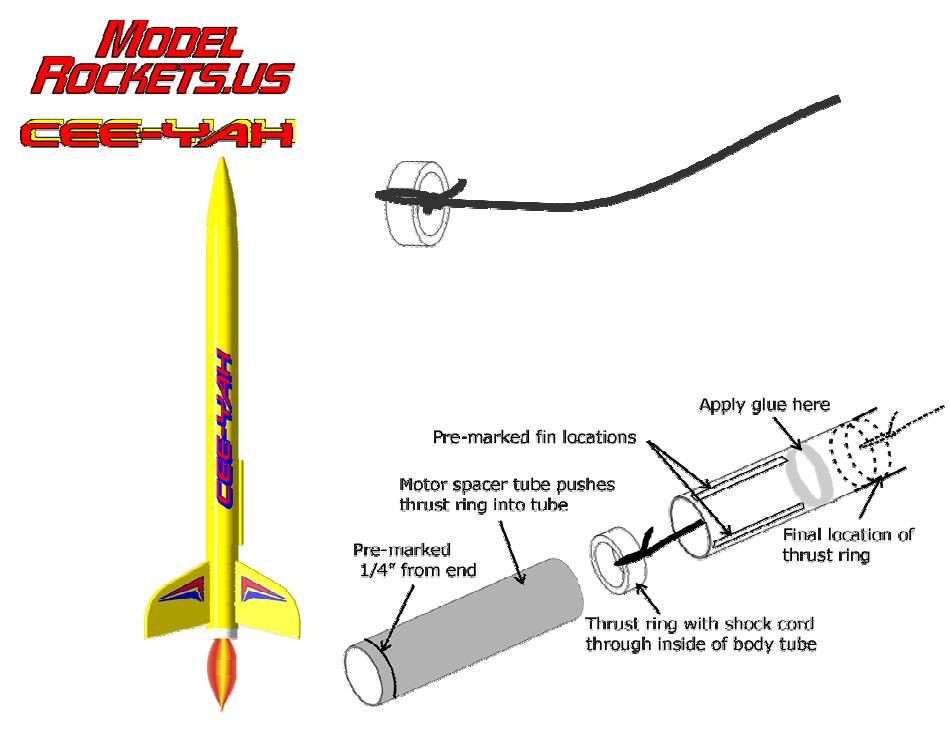

Step 1 –

Tie the yellow kevlar to the pre-

grooved thrust ring with a double knot. Make

sure the kevlar is tight in the groove and pull

the knot to the end of the thrust ring.

Step 2 –

Thread the end of the yellow

kevlar shock cord through the pre-marked fin

end of the body tube. Using a Q-tip or the tip

of your small finger, spread glue around the

inside of the body tube about 2" from the end

of the side that the shock cord was inserted

from.

Step 3 –

Using the yellow motor spacer

tube with the marked end outside, push the

thrust ring and yellow kevlar thread into the

tube until the motor spacer tube sticks out at

the ¼" mark from the end of the body tube.

Remove the motor spacer tube immediately

and set the body tube aside to dry for a few

minutes.

Table of Contents

Need help?

Do you have a question about the CEE-YAH and is the answer not in the manual?

Questions and answers

Summary of Contents for Model Rockets CEE-YAH

Page 1 Motor Mount and Shock Cord Assembly Step 1 – Tie the yellow kevlar to the pre- grooved thrust ring with a double knot. Make sure the kevlar is tight in the groove and pull the knot to the end of the thrust ring. Assembly Instructions Step 3 –...
Page 2 Preparing and Step 3 – Apply glue to the root edge on each fin and place on the pre-marked Attaching the Fins locations on the body tube. Immediately remove each fin and set aside a couple of minutes to tack up the glue. Do this for each fin.
Page 3 Preparing and Attaching the Fins Attaching the Streamer Step 3 – Remove the 2 tape discs from the backing sheet and press firmly onto the Cont… and Nose Cone streamer on both sides over the hole that is already punched in the end of the streamer. Step 1 –...
Page 4 Model Rocket Motors and Igniters hold your rocket, apply a thin coat of flat white or gray primer spray enamel to the Recommended Motors for the CEE-YAH rocket whole rocket using even back and forth are 1/2A6-2, A8-3. A6-4. B4-4, B6-4, C6-5 &...
